Disassembly and Assembly of Combination Meter: Disassembly

Remove screws (A) and remove rear cover (1).
Disconnect ODO/trip meter and illumination control switch connector (2).

Fig 1: Identifying ODO/TRIP Meter And Illumination Control Switch Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove screws (A).

Fig 2: Identifying Screws
Courtesy of NISSAN MOTOR CO., U.S.A.

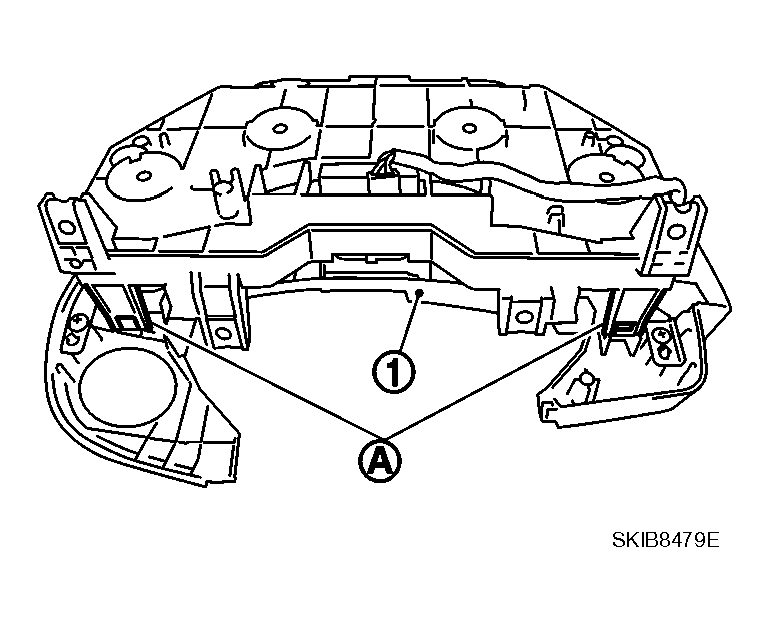

Remove tabs (A) and remove switch and meter housing (1).

Fig 3: Identifying Switch And Meter Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove screws (A) and remove reinforcing metal (1).

Fig 4: Identifying Reinforcing Metal
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove screws (A) and remove plate (1).

Fig 5: Identifying Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Disengage tabs (A) to separate front cover (1).

Fig 6: Identifying Separated Front Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
