Removal and Installation: Notes

CAUTION: Do not disassembly the component parts of only front passenger seat in the dotted lines shown in the figure below.

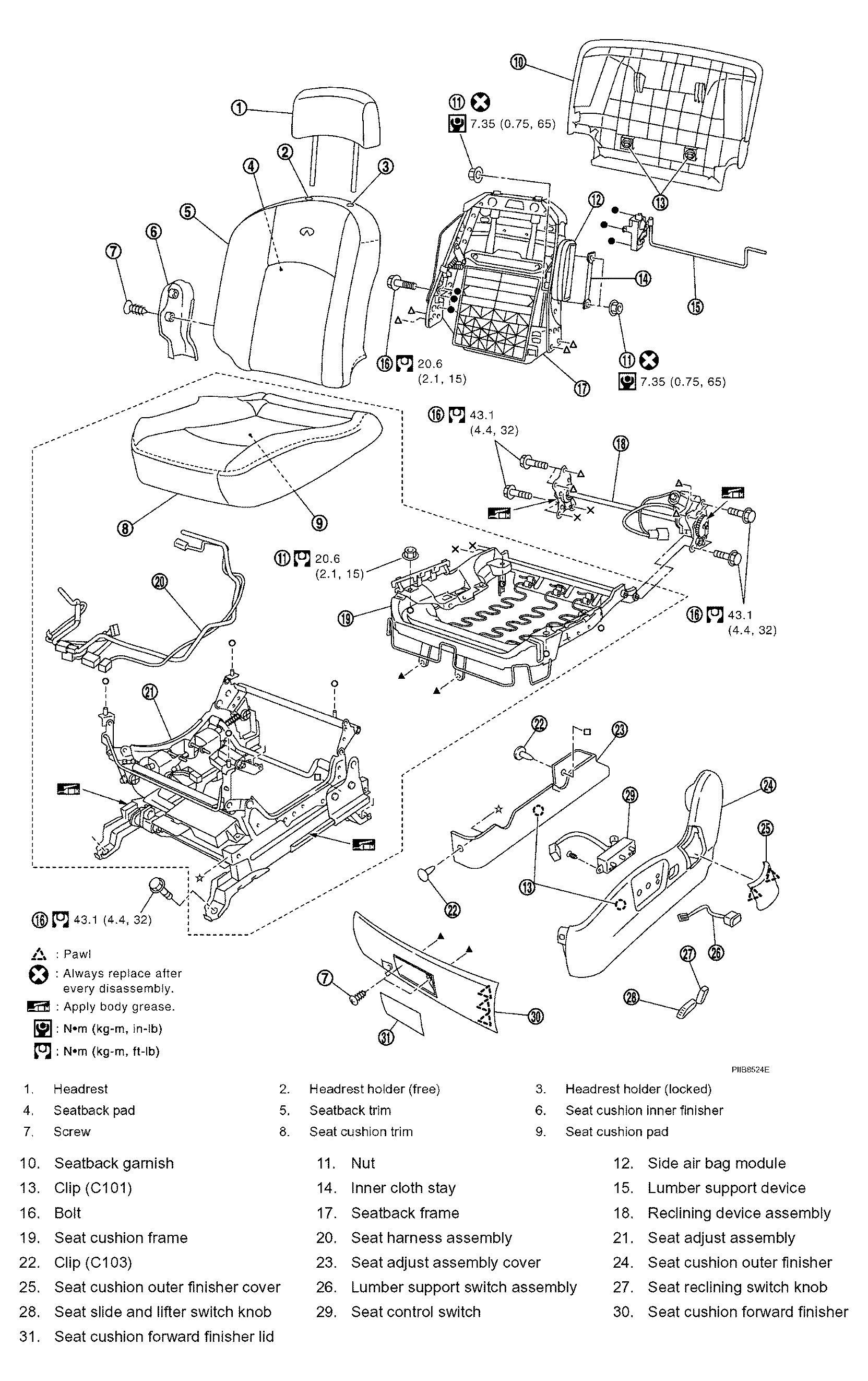

Fig 1: Exploded View Of Front Seat With Torque Specifications
G04077767Courtesy of NISSAN MOTOR CO., U.S.A.
