Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Body, Lock & Security System
>>
Power Door Lock System
>>
Schematic/Without Intelligent Key
Schematic/Without Intelligent Key

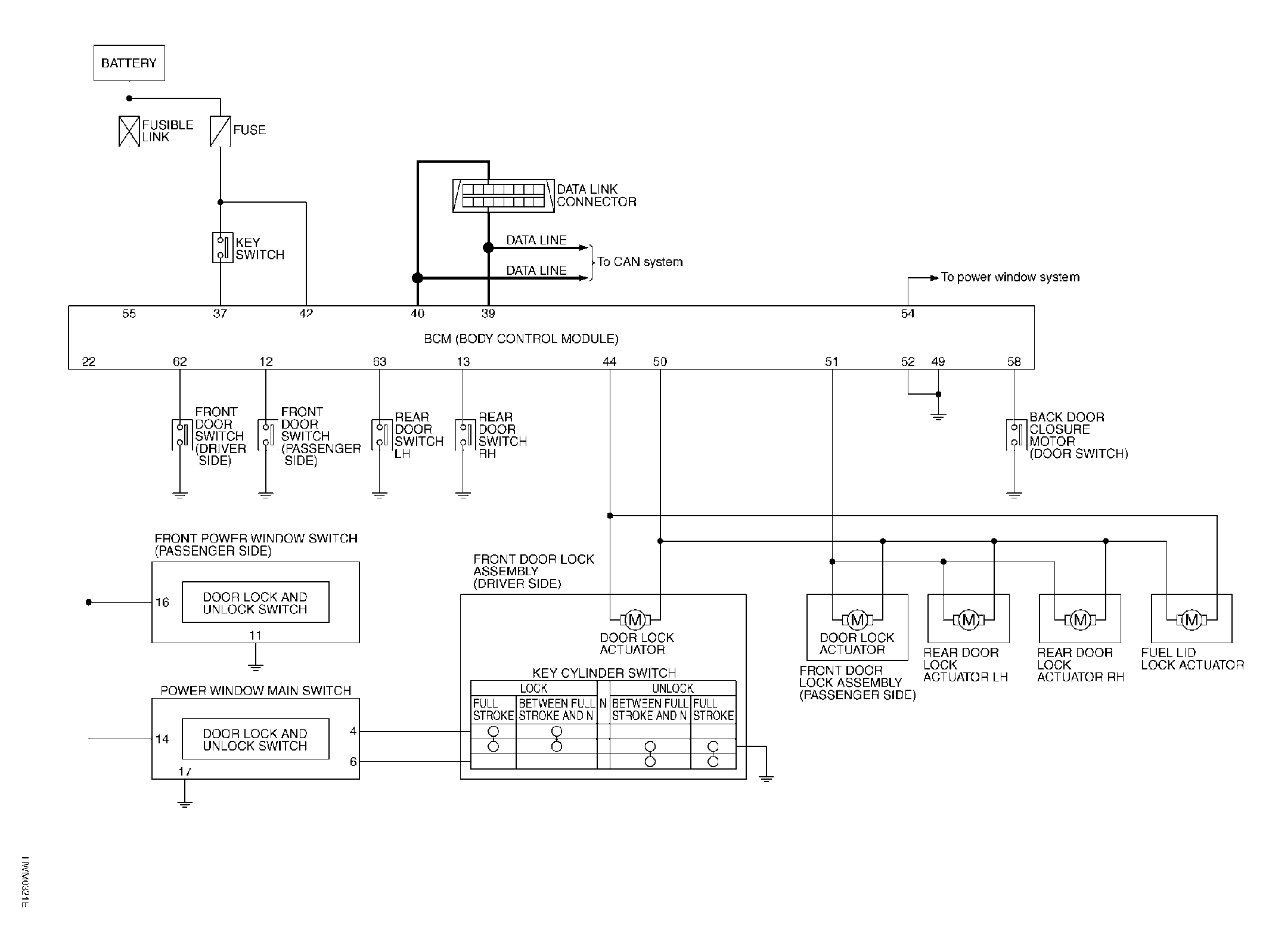

Fig 1: Schematic/Without Intelligent Key - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
