CAN Communication Unit: Notes
Go to CAN system , when selecting your CAN system type from the following table.
CAN COMMUNICATION UNIT CHART
| Body type | Wagon | |||||
| Axle | 2WD | AWD | ||||
| Engine | VQ35DE | VQ35DE/VK45DE | ||||
| Transmission | A/T | |||||
| Brake control | VDC | |||||
| ICC system | x | x | ||||
| Lane departure warning system | x | x | ||||
| Intelligent Key system | x | x | x | x | ||
| CAN system type | 1 | 2 | 3 | 4 | 5 | 6 |
| CAN system trouble diagnosis | CAN SYSTEM (TYPE 1) | CAN SYSTEM (TYPE 2) | CAN SYSTEM (TYPE 3) | CAN SYSTEM (TYPE 4) | CAN SYSTEM (TYPE 5) | CAN SYSTEM (TYPE 6) |
| x: Applicable | ||||||
NOTE:
Confirming the presence of the following items helps to identify CAN system type.

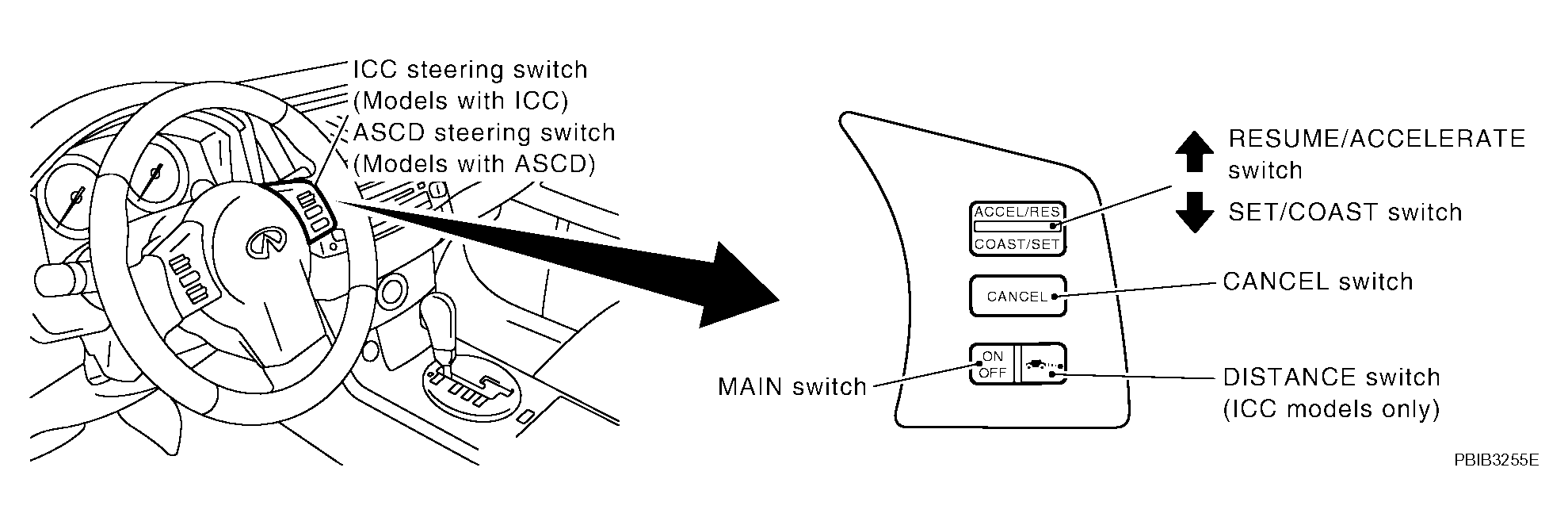

- Models with ICC system

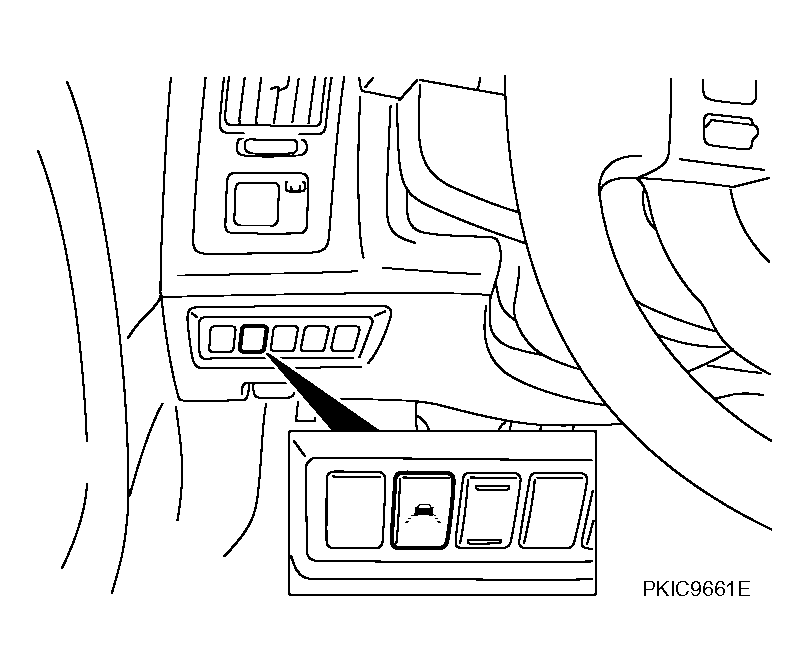

- Models with lane departure warning system

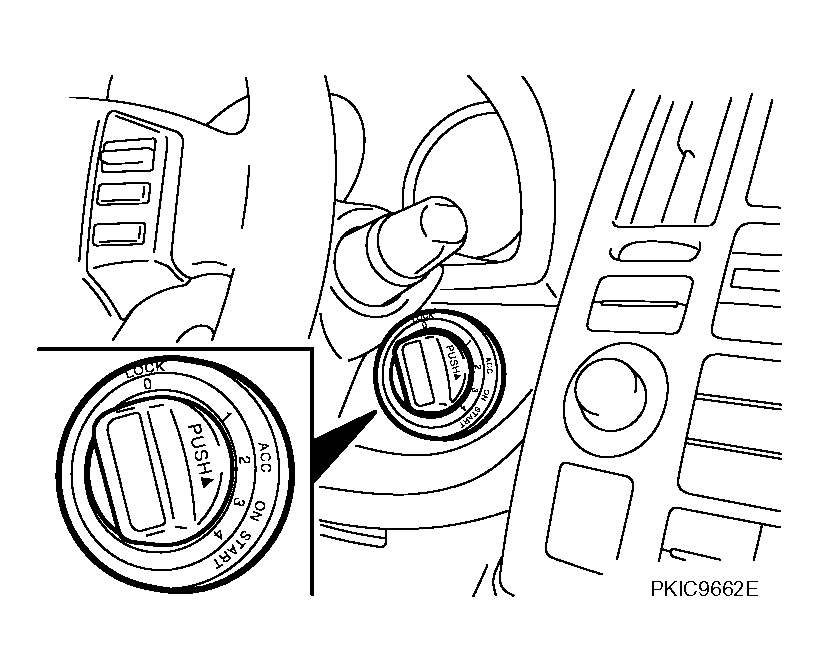

- Models with Intelligent Key system
