Parking Components (2WD Models Only): Installation

CAUTION: After completing installation, check A/T position, A/T fluid leakage and A/F fluid level. Refer to "CHECKING OF A/T POSITION ", "CHECKING A/T FLUID ".
  1. As shown in the figure, use a drift to drive rear oil seal into the rear extension until it is flush.
    CAUTION:
    • Do not reuse rear oil seal.
    • Apply ATF to rear oil seal.

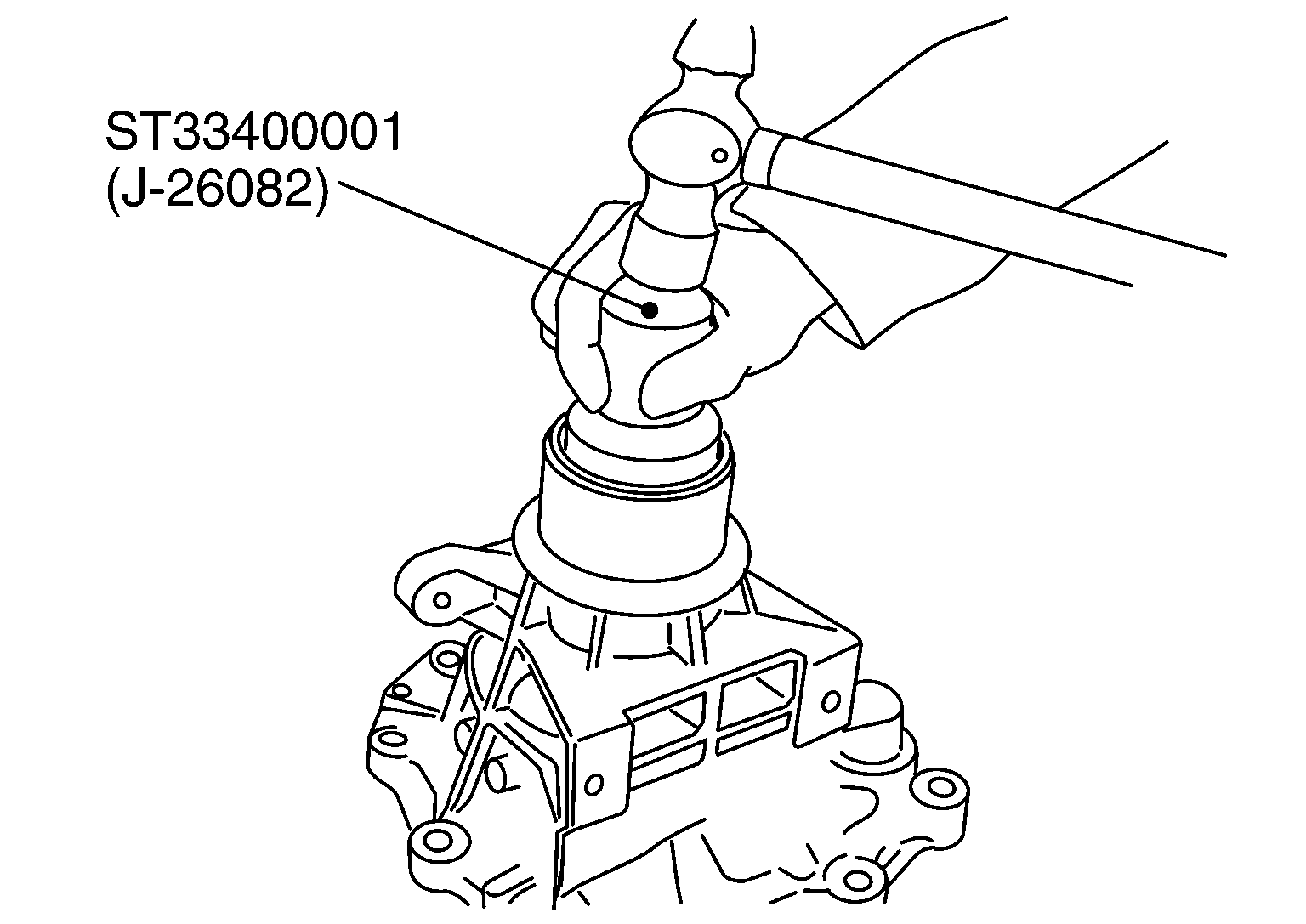

      Fig 1: Installing Rear Oil Seal Into Rear Extension
      G04075702Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install return spring to parking pawl.

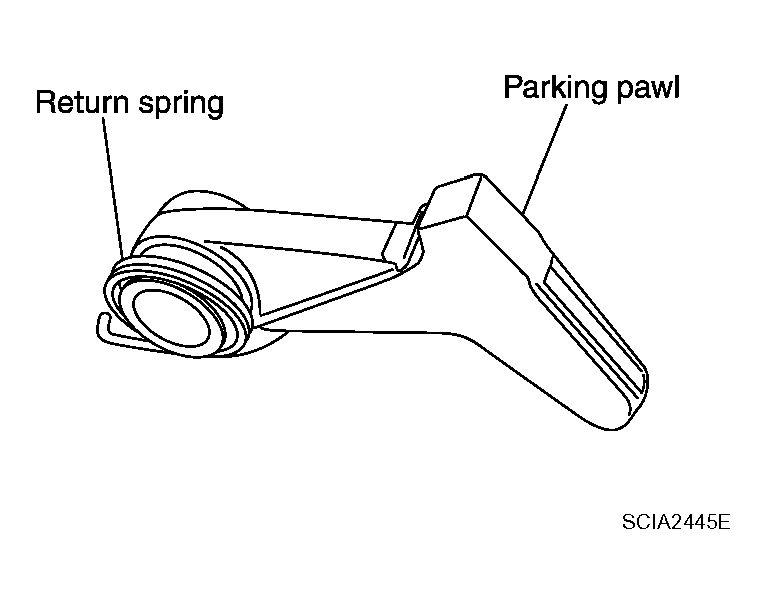

    Fig 2: Identifying Return Spring To Parking Pawl
    G04075703Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install parking pawl (with return spring) and pawl shaft to rear extension.

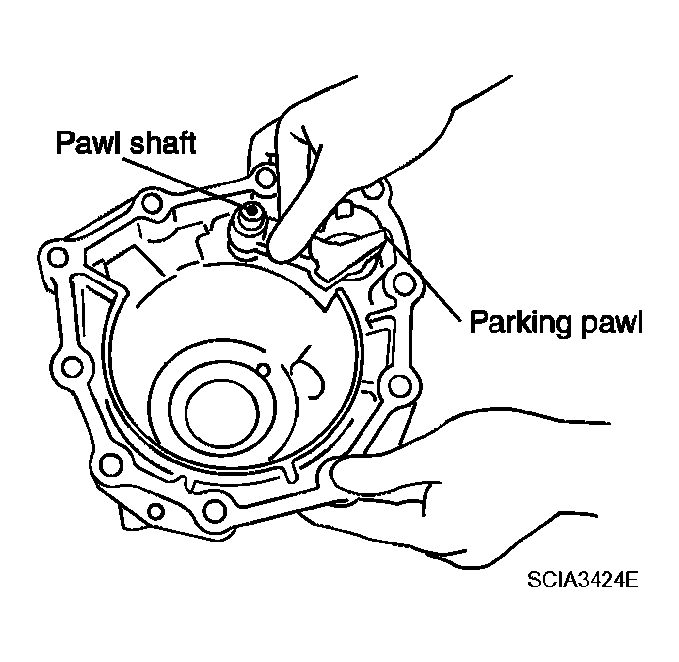

    Fig 3: Installing Parking Pawl And Pawl Shaft To Rear Extension
    G04075704Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install parking actuator support to rear extension.
  5. Install needle bearing to rear extension.
    CAUTION: Apply petroleum jelly to needle bearing.

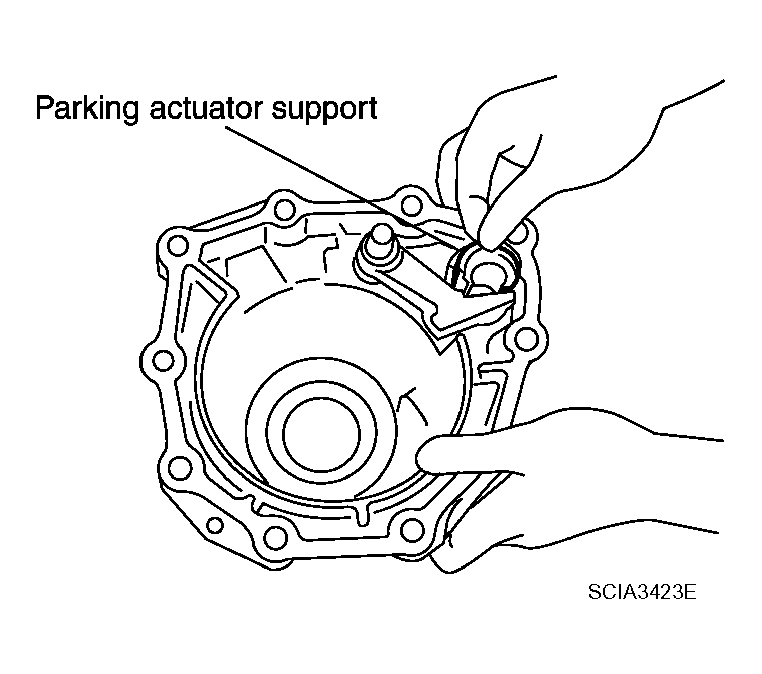

    Fig 4: Installing Parking Actuator Support To Rear Extension
    G04075705Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install seal rings in output shaft.

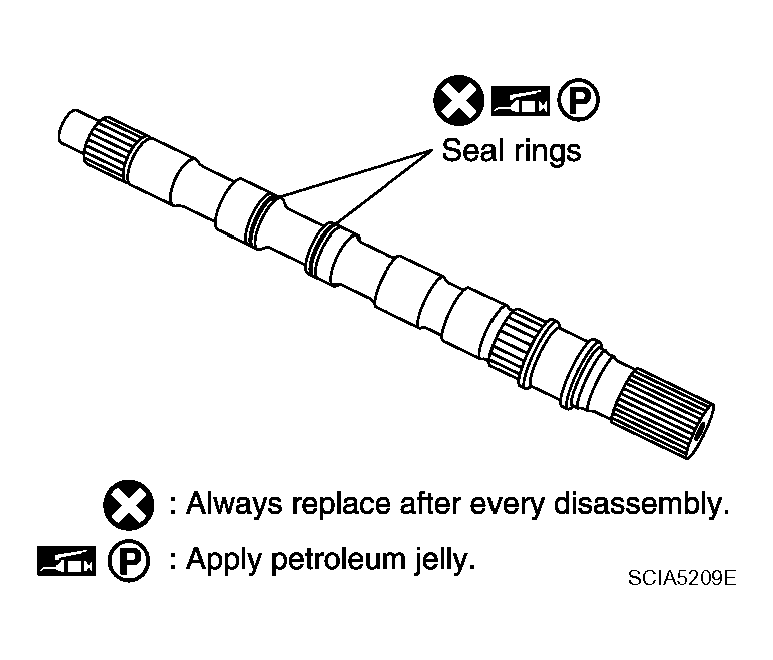

    Fig 5: Identifying Seal Rings In Output Shaft
    G04075706Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Do not reuse seal rings.
    • Apply petroleum jelly to seal rings.
  7. Install parking gear to output shaft

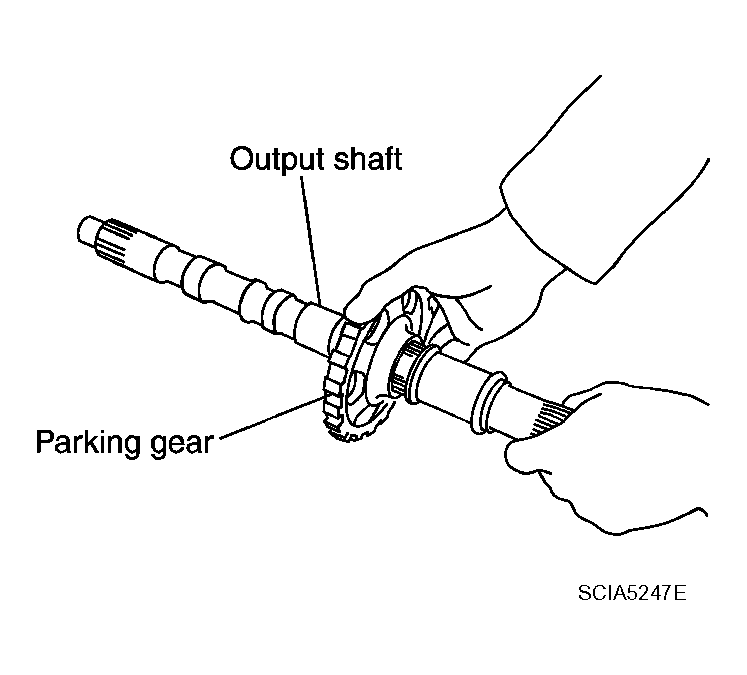

    Fig 6: Applying Petroleum Jelly To Seal Rings
    G04075707Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install output shaft to transmission case.

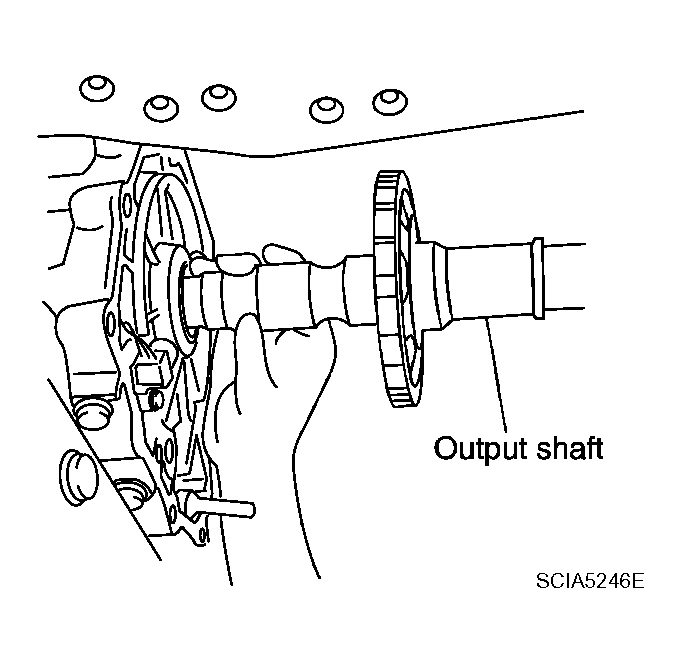

    Fig 7: Installing Output Shaft To Transmission Case
    G04075708Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install bearing race to output shaft.

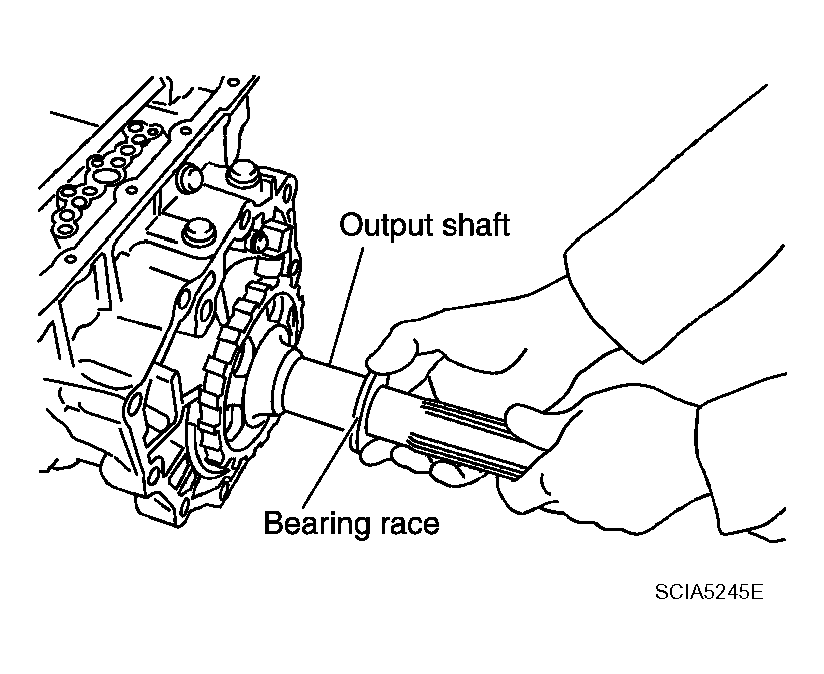

    Fig 8: Installing Bearing Race To Output Shaft
    G04075709Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to rear extension assembly as shown in the figure.

    For GI, go to GENERAL INFORMATION .

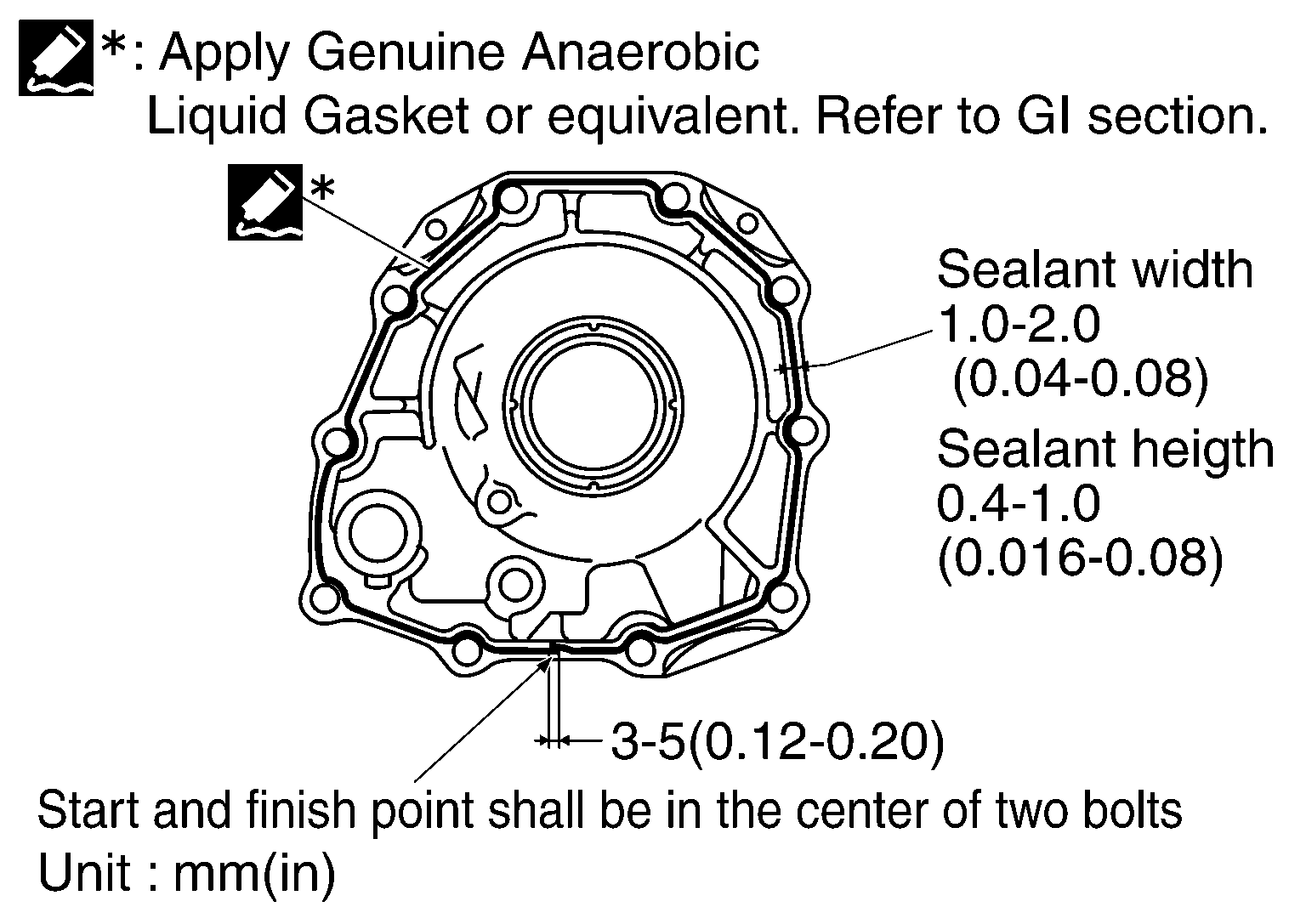

    Fig 9: Identifying Recommended Sealant To Rear Extension Assembly
    G04075710Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Completely remove all moisture, oil and old sealant, etc. from the transmission case and rear extension assembly mounting surfaces.
  11. Install rear extension assembly to transmission case. (With needle bearing.)
    CAUTION: Insert the tip of parking rod between the parking pawl and the parking actuator support when assembling the rear extension assembly.

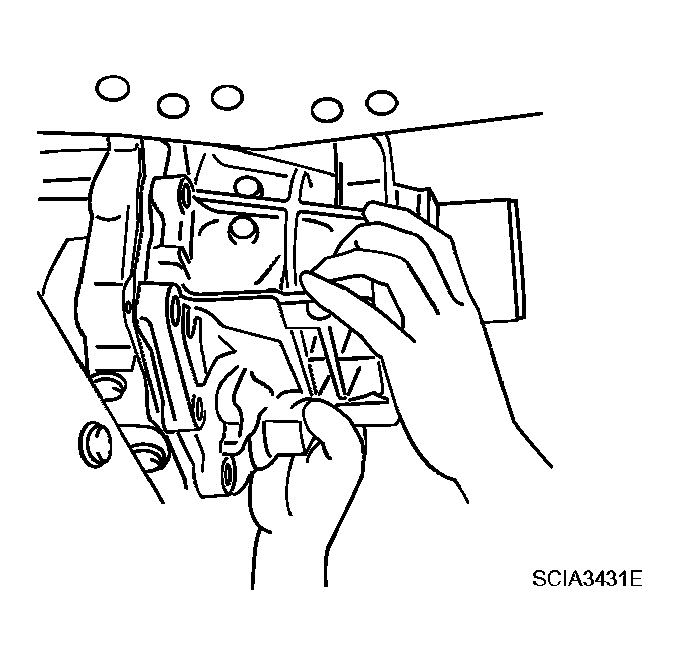

    Fig 10: Installing Rear Extension Assembly To Transmission Case
    G04075711Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Tighten rear extension assembly mounting bolts to specified torque. Refer to "COMPONENTS ".
    CAUTION: Do not reuse self-sealing bolts.

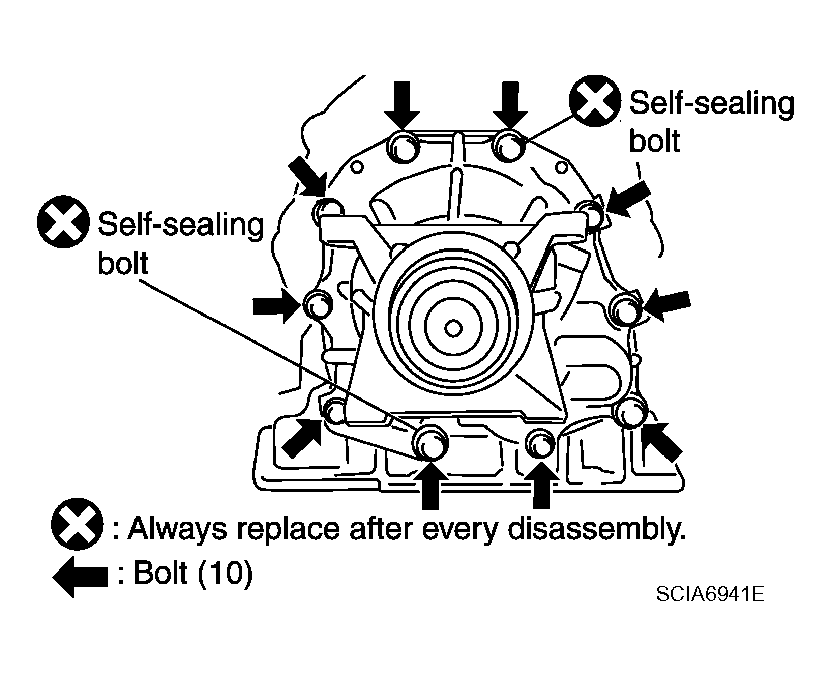

    Fig 11: Tightening Rear Extension Assembly Mounting Bolts
    G04075712Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Install engine mounting insulator (rear). Refer to "REMOVAL AND INSTALLATION (2WD MODELS) ".
  14. Install rear engine mounting member. Refer to "REMOVAL AND INSTALLATION (2WD MODELS) ".
  15. Install control rod. Refer to "CONTROL ROD REMOVAL AND INSTALLATION ".
  16. Install rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
  17. Install exhaust front tube and center muffler. Refer to "COMPONENTS ".
  18. Install drain plug in oil pan, and then tighten drain plug to the specified torque. Refer to "COMPONENTS ".
    CAUTION: Do not reuse drain plug gasket.
  19. Pour ATF into A/T assembly. Refer to "CHANGING A/T FLUID ".
