Diagnostic Procedure

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to "GROUND INSPECTION ".

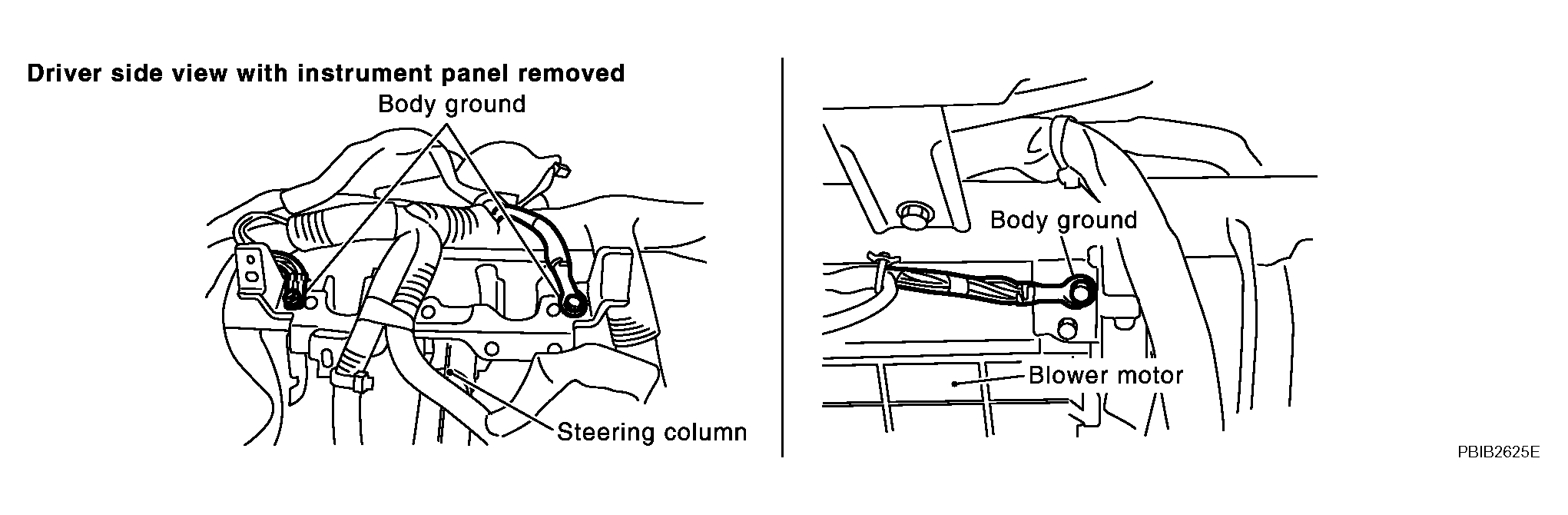

  Fig 1: Identifying Ground Connection
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK : GO TO 2.

NG : Repair or replace ground connections.
CHECK POWER STEERING PRESSURE (PSP) SENSOR POWER SUPPLY CIRCUIT
1. Disconnect power steering pressure (PSP) sensor harness connector.
2. Turn ignition switch ON.

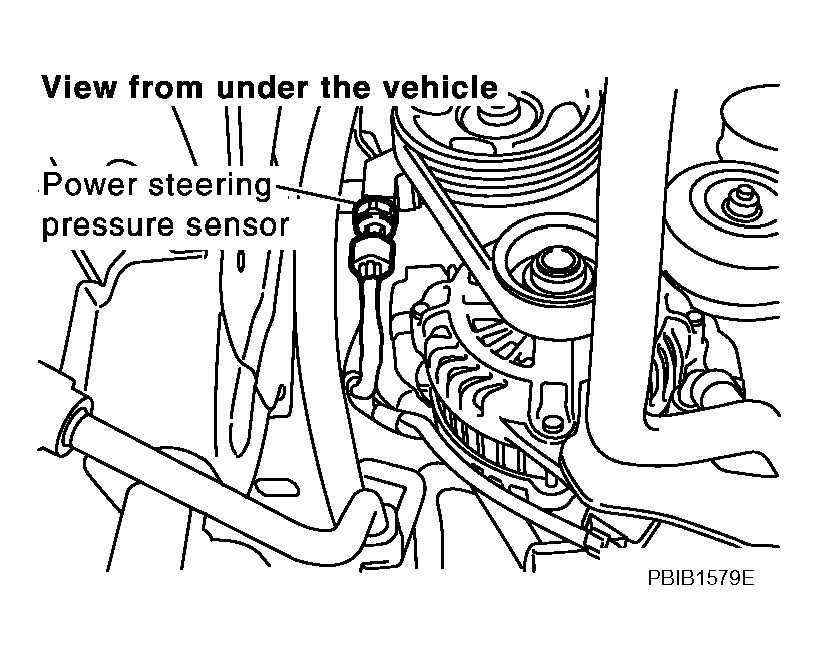

  Fig 2: Identifying Location Of Power Steering Pressure (PSP) Sensor
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between PSP sensor terminal 1 and ground with CONSULT-II or tester.
  Voltage: Approximately 5V

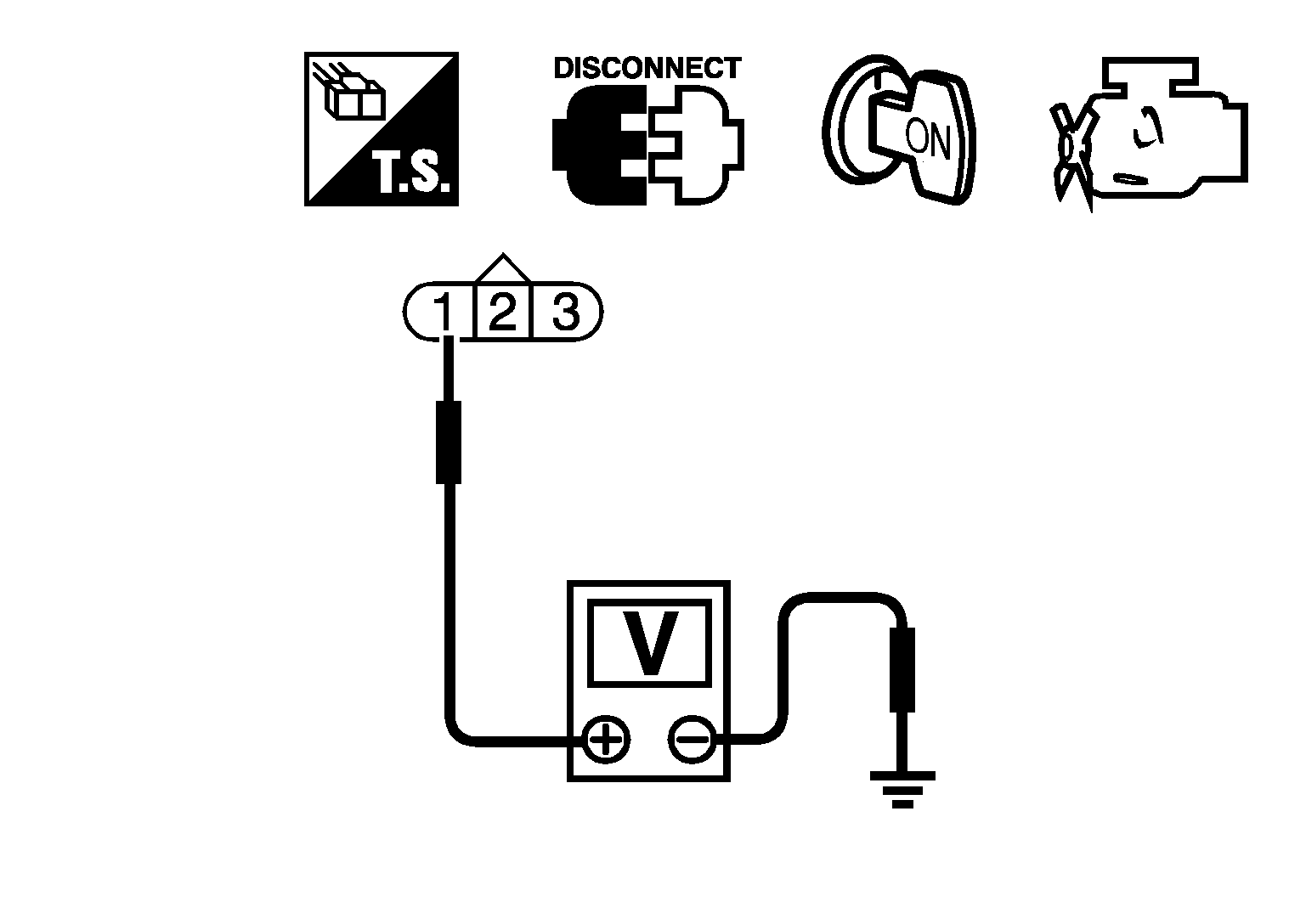

  Fig 3: Identifying Voltage Between PSP Sensor Terminal 1 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK : GO TO 3.

NG : Repair open circuit or short to ground or short to power in harness or connectors.
CHECK POWER STEERING PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between PSP sensor terminal 3 and ECM terminal 67. Refer to Wiring Diagram.
  Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG

OK : GO TO 4.

NG : Repair open circuit or short to ground or short to power in harness or connectors.
CHECK POWER STEERING PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 12 and PSP sensor terminal 2. Refer to Wiring Diagram.
  Continuity should exist.
2. Also check harness for short to ground and short to power.
OK or NG

OK : GO TO 5.

NG : Repair open circuit or short to ground or short to power in harness or connectors.
CHECK POWER STEERING PRESSURE SENSOR
Refer to "COMPONENT INSPECTION ".

OK or NG

OK : GO TO 6.

NG : Replace power steering pressure sensor.
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

: INSPECTION END
