Wiring Diagram - COMPAS -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

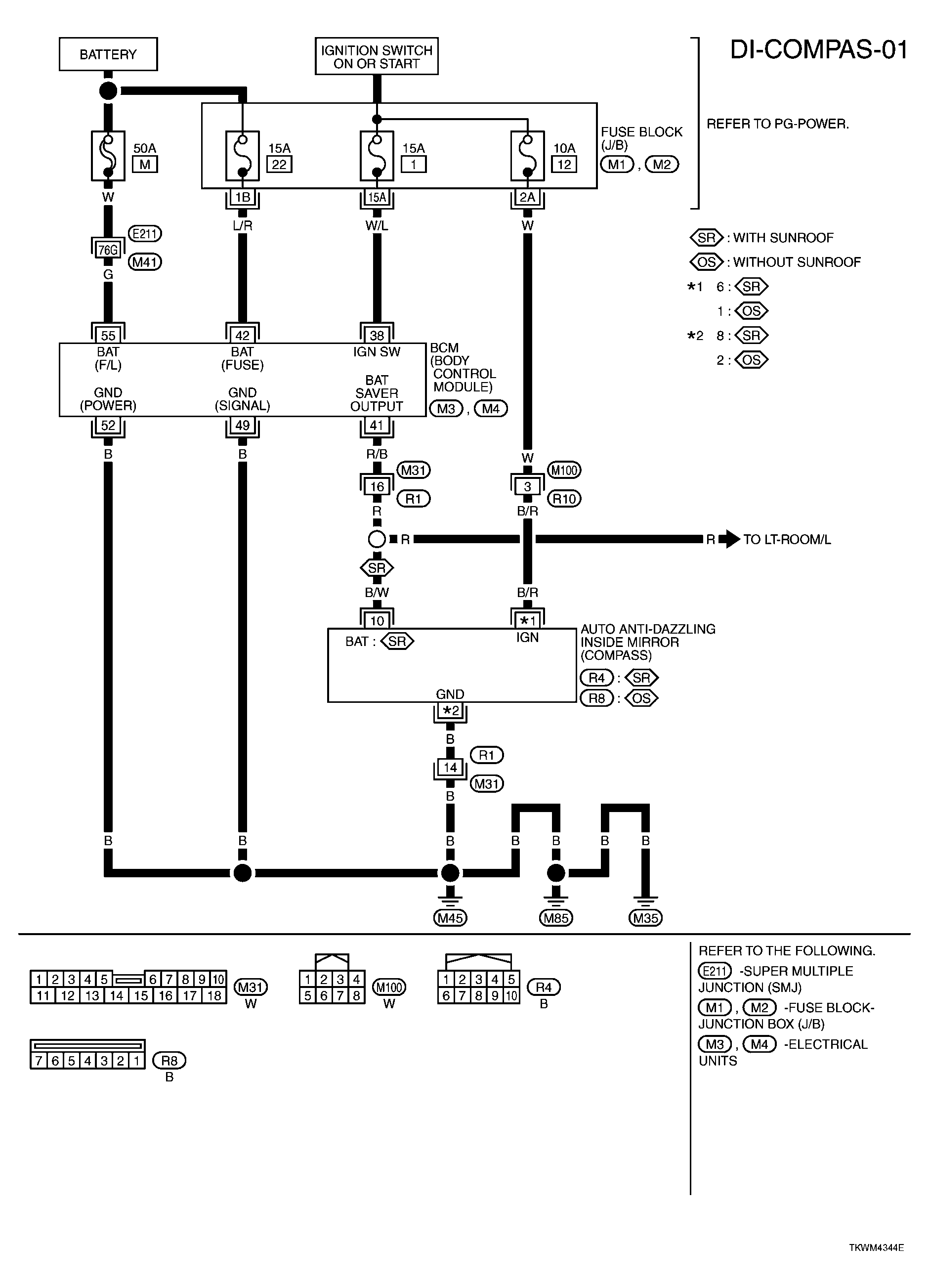

Fig 1: DI-COMPAS-01 - Wiring Diagram

G04078617

Courtesy of NISSAN MOTOR CO., U.S.A.
