Memory Storing And KEYFOB Interlock Storing

Store the 2 driving positions and shifts to the stored driving position with the memory switch.
Keyfob interlock function is set simultaneously with setting driving position memory. It can set driving position to memory position.

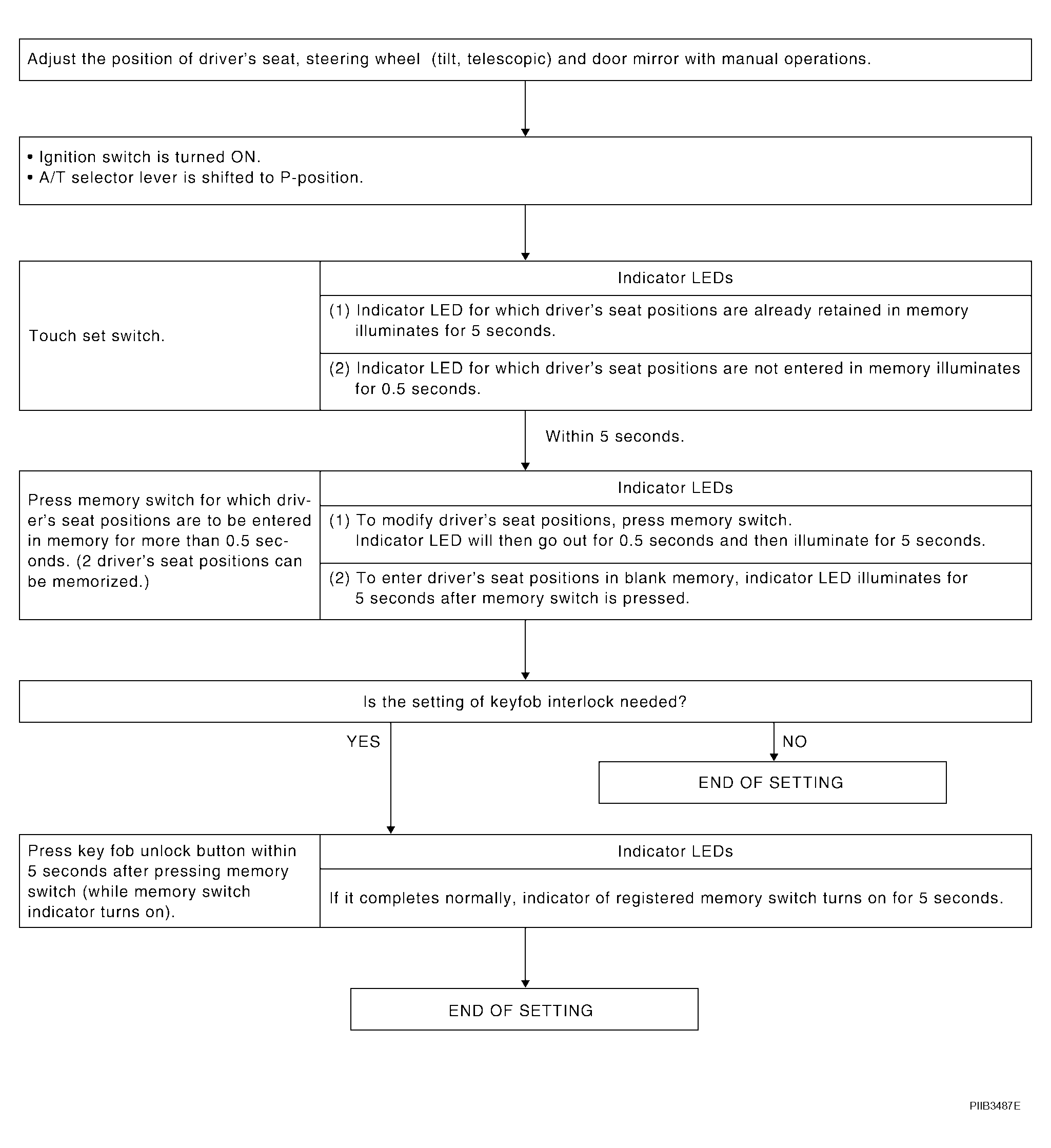

Fig 1: Memory Storing And Keyfob Interlock Storing Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If another keyfob interlock function setting is performed by same key, newly registered setting is valid.
If new memory string is performed to memory switch that already set keyfob interlock function, keyfob interlock function setting is reset.
If key does not set previously, keyfob interlock function cannot set.
