Check Telescopic Motor Circuit

  1. CHECK STEERING WHEEL TELESCOPIC MECHANISM

    Check following.

    • Operation malfunction caused by steering wheel telescopic mechanism deformation or pinched harness or other foreign materials
    • Operation malfunction and interference with other parts by poor installation

    OK or NG

    OK :

    • GO TO 2 (With CONSULT-II).
    • GO TO  3 (Without CONSULT-II).

    NG : Repair the malfunctioning part and check again.

  2. CHECK FUNCTION

    With CONSULT-II

    Check operation with "TELESCO MOTOR" in ACTIVE TEST.

    DESCRIPTION CHART

    Test item Description
    TELESCO MOTOR The telescopic motor is activated by receiving the drive signal.

    OK or NG

    OK : Steering telescopic motor circuit is OK.

    NG : GO TO 3.

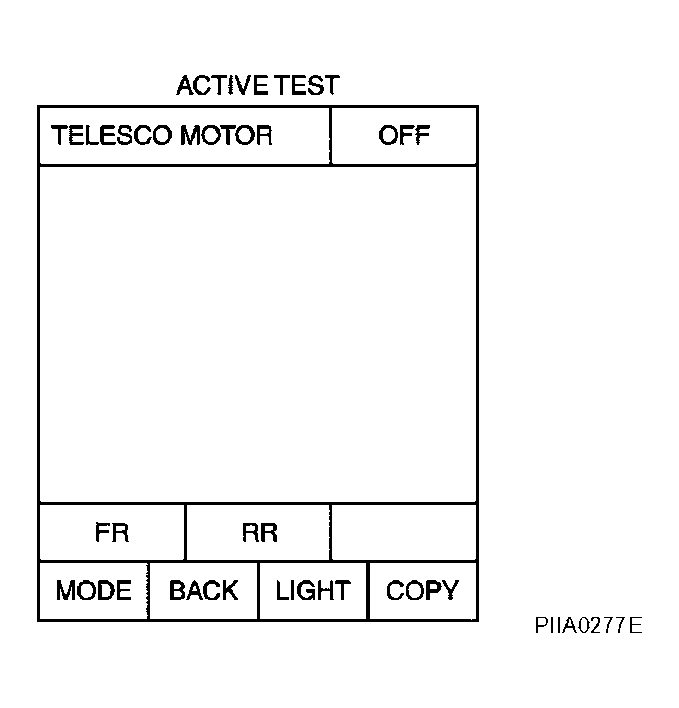

    Fig 1: CONSULT-II Function Display - Active Test
    G04077643Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK TELESCOPIC MOTOR HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect automatic drive positioner control unit and tilt motor and telescopic motor connector.
    3. Check continuity between automatic drive positioner control unit connector M50 terminals 36, 44 and tilt motor and telescopic motor connector M27 terminals 3, 4.

      36 (L/R) - 3 (L/R) : Continuity should exist.

      44 (L/W) - 4 (L/W) : Continuity should exist.

    4. Check continuity between automatic drive positioner control unit connector M50 terminals 36, 44 and ground.

      36 (L/R) - Ground: Continuity should not exist.

      44 (L/W) - Ground: Continuity should not exist.

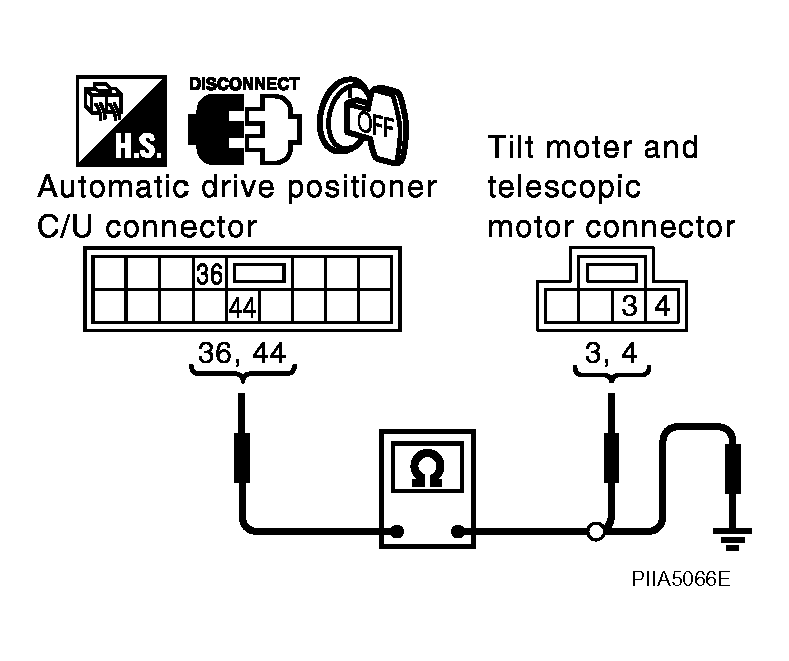

      Fig 2: Identifying Continuity Between Automatic Drive Positioner Control Unit Connector M50 Terminals 36, 44 And Ground
      G04077644Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK : GO TO 4.

    NG : Repair or replace harness between automatic drive positioner control unit and tilt motor and telescopic motor.

  4. CHECK BCM OUTPUT SIGNAL
    1. Connect the automatic drive positioner control unit connector.
    2. Telescopic switch operate, check voltage between automatic drive positioner control unit connector and ground.
      TERMINAL VOLTAGE CHART

      Connector Terminals (Wire color) Telescopic switch condition Voltage (V) (Approx.)
      (+) (-)
      M50 36 (L/R) Ground FORWARD Battery voltage
      Other than above 0
      44 (L/W) BACKWARD Battery voltage
      Other than above 0

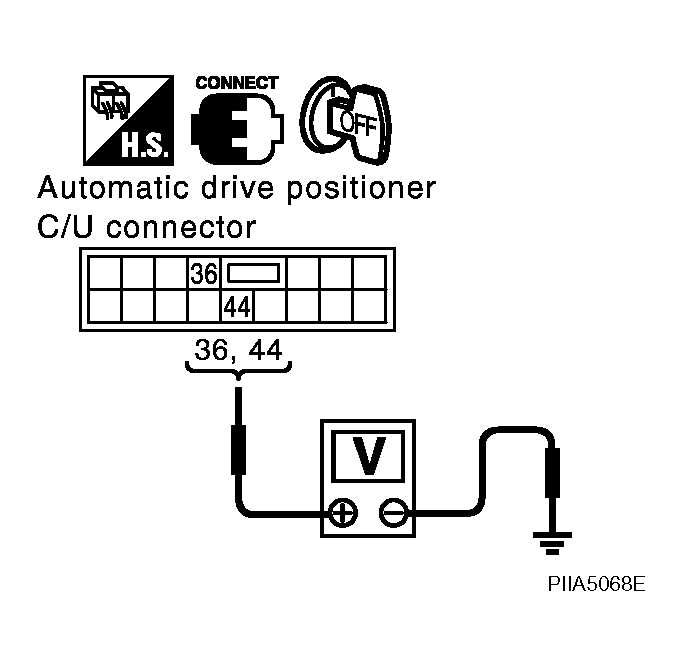

      Fig 3: Identifying Voltage Between Automatic Drive Positioner Control Unit Connector And Ground
      G04077645Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK : Replace tilt and telescopic motor.

    NG : Replace automatic drive positioner control unit.
