Check Door Switch (Except Back Door Switch)
- CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II

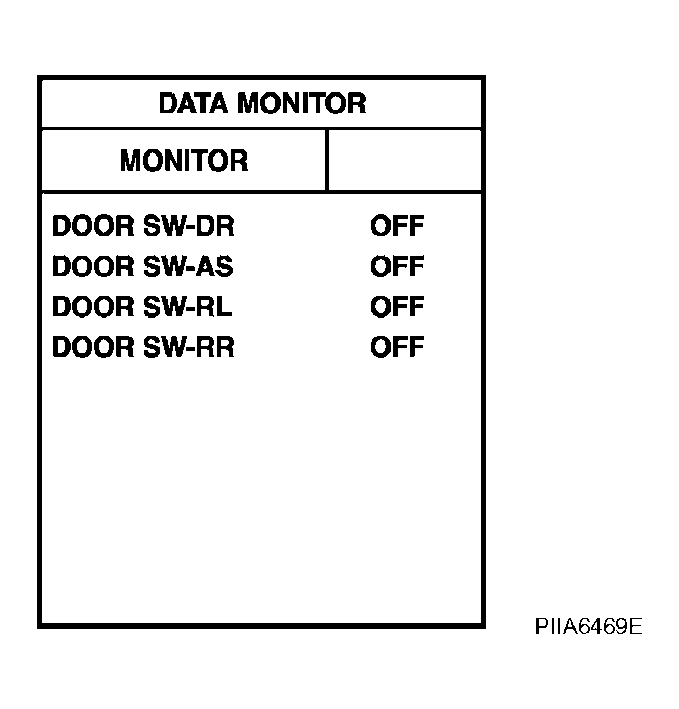

Check door switches ("DOOR SW-DR""DOOR SW-AS""DOOR SW-RL" and "DOOR SW-RR") in "DATA MONITOR" mode with CONSULT-II.
DATA MONITOR CONDITIONMonitor item Condition DATA MONITOR DOOR SW-DR CLOSE
OPEN:OFF
ONDOOR SW-AS DOOR SW-RL DOOR SW-RR Without CONSULT-II

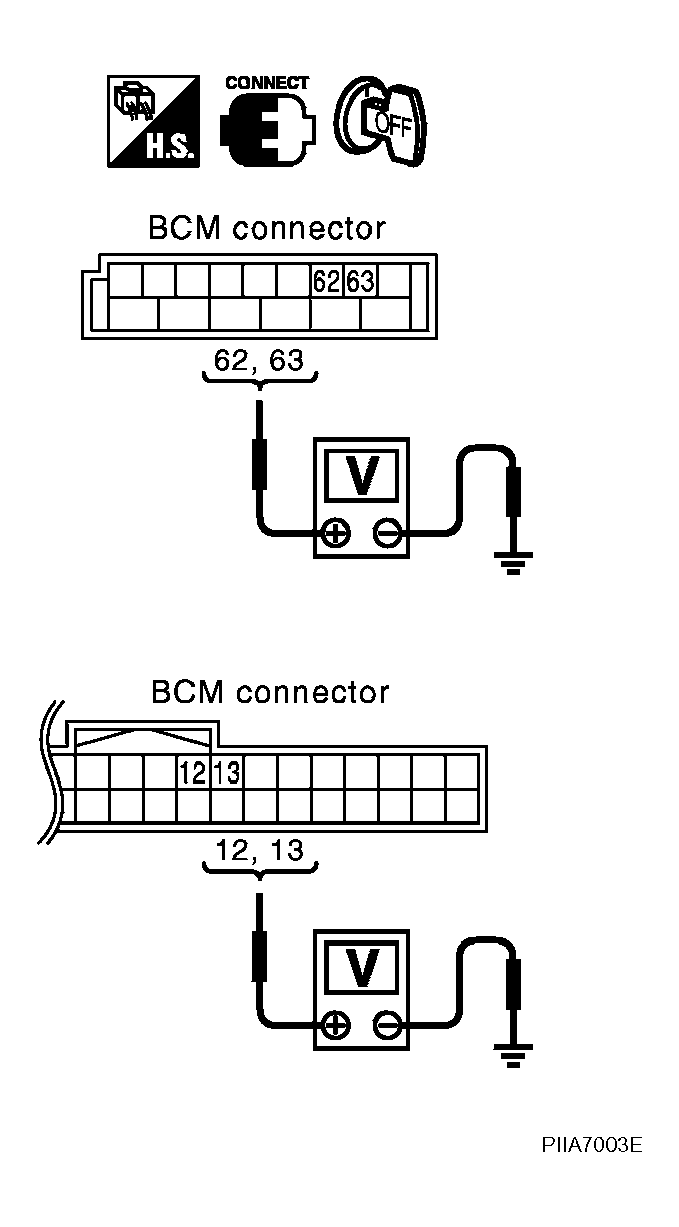

Check voltage between BCM connector and ground.
BCM CONNECTOR TERMINAL VOLTAGE SPECIFICATIONSItem Connector Terminals (Wire color) Door condition Voltage (V) (Approx.) (+) (-) Driver side B14 62 (W) Ground CLOSE
then
OPENBattery voltage
then
0Rear LH 63 (P) Passenger side M3 12 (P/B) Rear RH 13 (P/L) OK or NG
OK : Door switch circuit is OK.
NG : GO TO 2.
- CHECK DOOR SWITCH CIRCUIT
- Turn ignition switch OFF.
- Disconnect door switch and BCM connector.

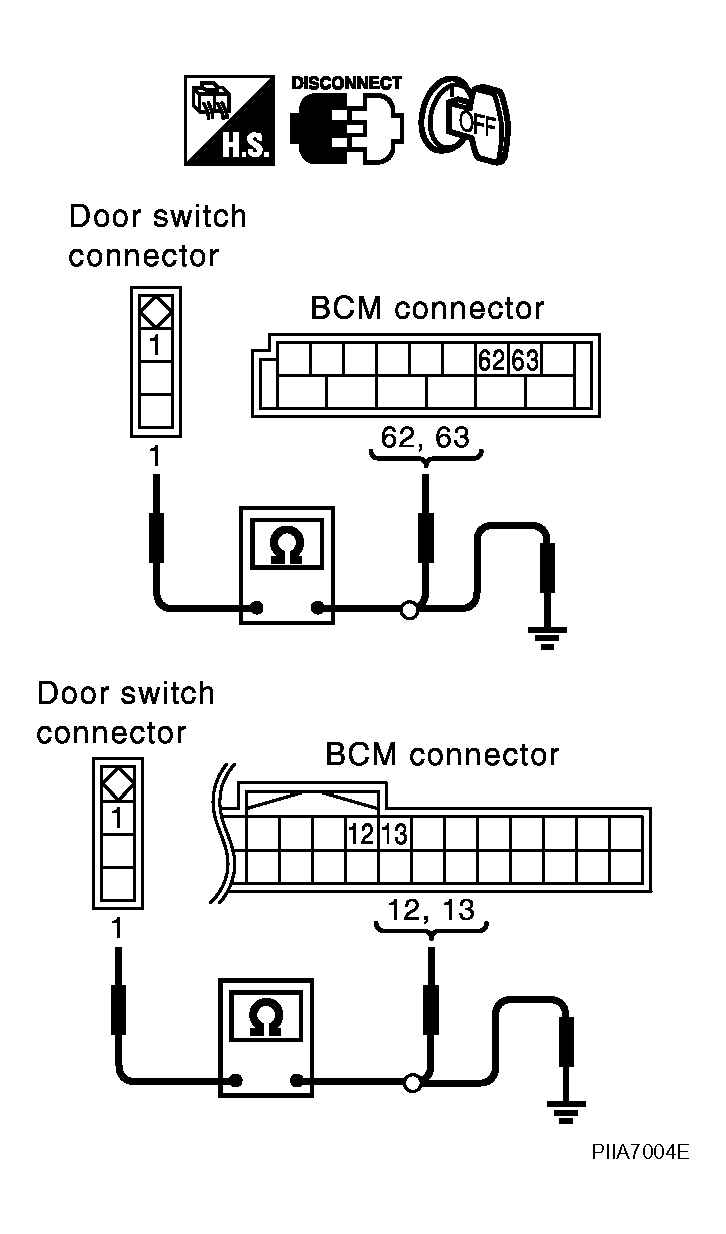

- Check continuity between door switch connector B26, B36, B46, B206 terminals 1 and BCM connector M3, B14 terminals 62, 12, 63, 13.
Driver side door
1 (W) - 62 (W) : Continuity should exist.
Passenger side door
1 (SB) - 12 (P/B) : Continuity should exist.
Rear door LH
1 (P) - 63 (P) : Continuity should exist.
Rear door RH
1 (P) - 13 (P/L) : Continuity should exist.
- Check continuity between door switch connector B26, B36, B46, B206 terminal 1 and ground.
1 (W, SB, P) - Ground : Continuity should not exist.
OK or NG
OK : GO TO 3.
NG : Repair or replace harness.
- CHECK DOOR SWITCH

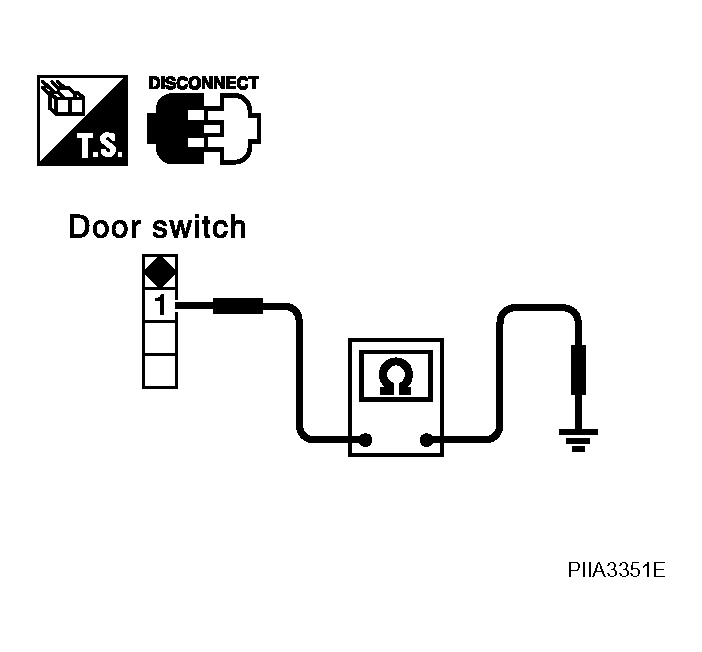

Check continuity between door switch terminal 1 and ground part of door switch.
CONTINUITY SPECIFICATIONSTerminal Door switch condition Continuity 1 Ground part of door switch Pushed No Released Yes Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
OK : Check door switch case ground condition.
NG : Replace door switch.
