Check Door Switch (Except Back Door Switch)

1. Turn ignition knob LOCK position.
2. Check voltage between BCM connector and ground.
   CONNECTOR TERMINAL VOLTAGE SPECIFICATIONS



   Item	Connector	Terminals (Wire color)		Door condition	Voltage (V) (Approx.)
   		(+)	(-)
   Driver side	B14	62 (W)	Ground	CLOSE --> OPEN	Battery voltage --> 0
   Rear LH		63 (P)
   Passenger side	M3	12 (P/B)
   Rear RH		13 (P/L)

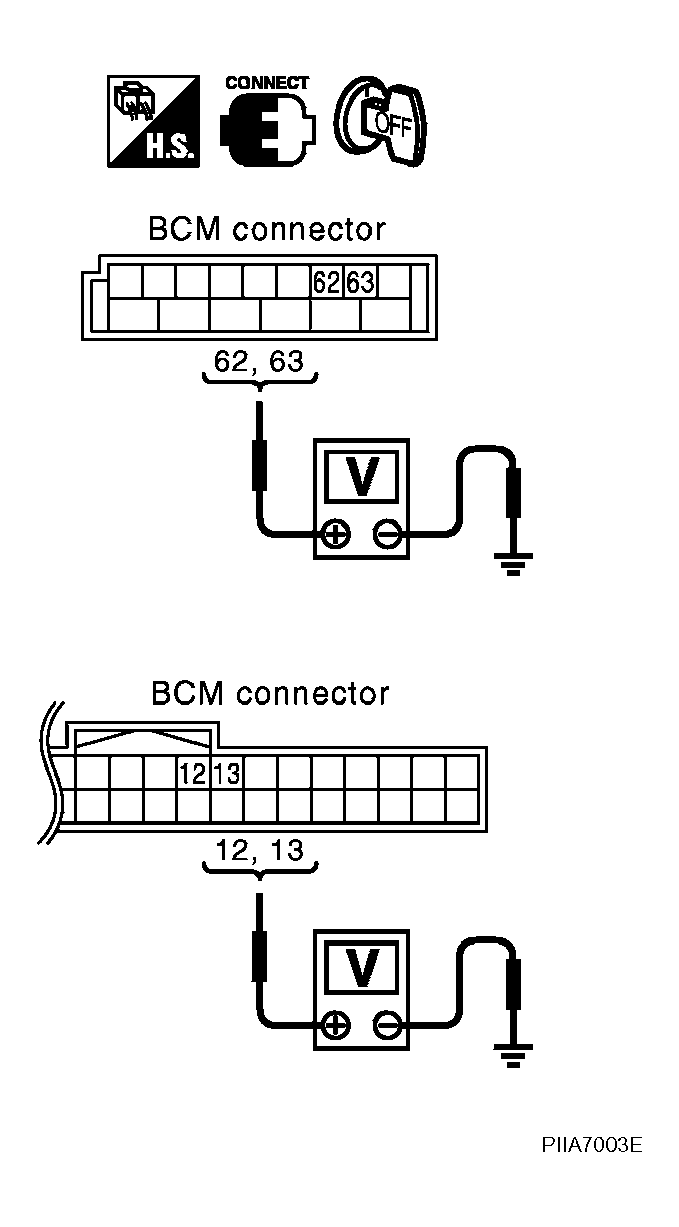

   Fig 1: Identifying Voltage Between BCM Connector And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Door switch circuit is OK.

NG : GO TO 2.

1. Disconnect door switch and BCM connector.
2. Check continuity between door switch connector B26, B36, B46, B206 terminals 1 and BCM connector M3, B14 terminals 62, 12, 63, 13.

   Driver side door

   1 (W) -62 (W) : Continuity should exist.

   Passenger side door

   1 (SB) - 12 (P/B) : Continuity should exist.

   Rear door LH

   1 (P) - 63 (P) : Continuity should exist.

   Rear door RH

   1 (P) - 13 (P/L) : Continuity should exist.

3. Check continuity between door switch connector B26, B36, B46, B206 terminal 1 and ground.

   1 (W, SB, P) - Ground : Continuity should not exist.

OK or NG

OK : GO TO 3.

NG : Repair or replace harness.

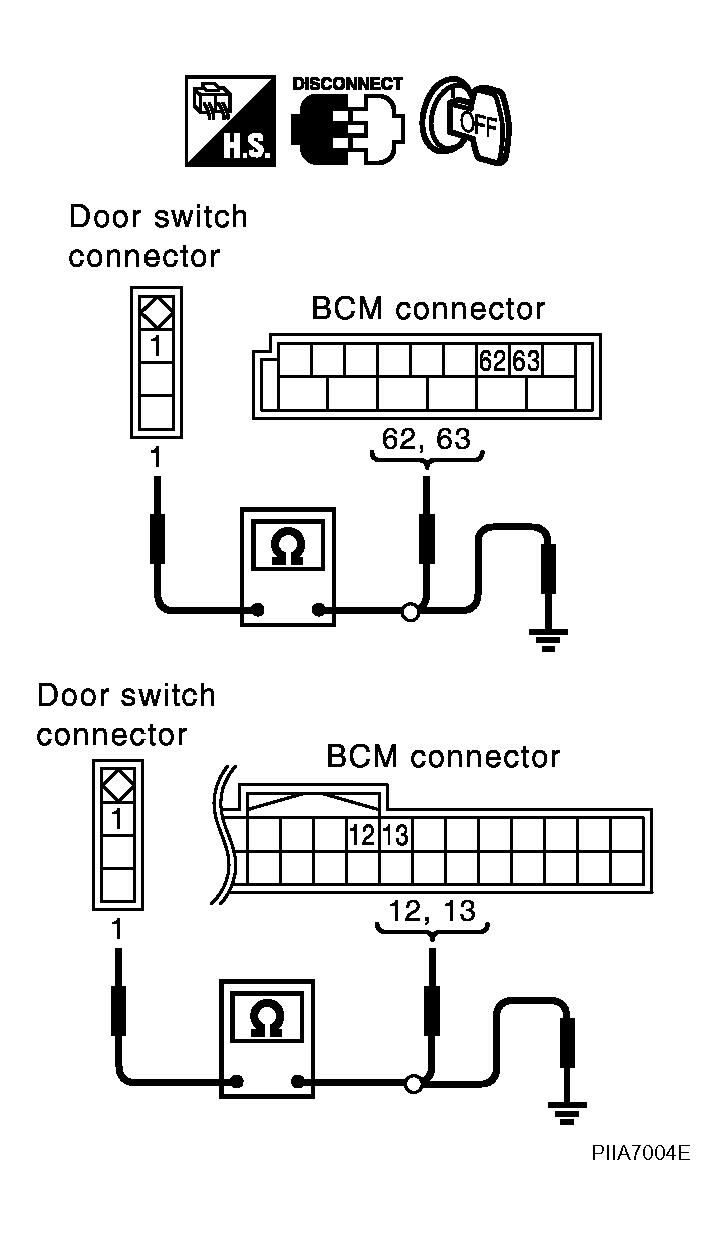

Fig 2: Identifying Continuity Between Door Switch Connector B206 Terminals 1 And BCM Connector M3, B14 Terminals 62, 12, 63, 13

Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between door switch terminal 1 and ground part of door switch.

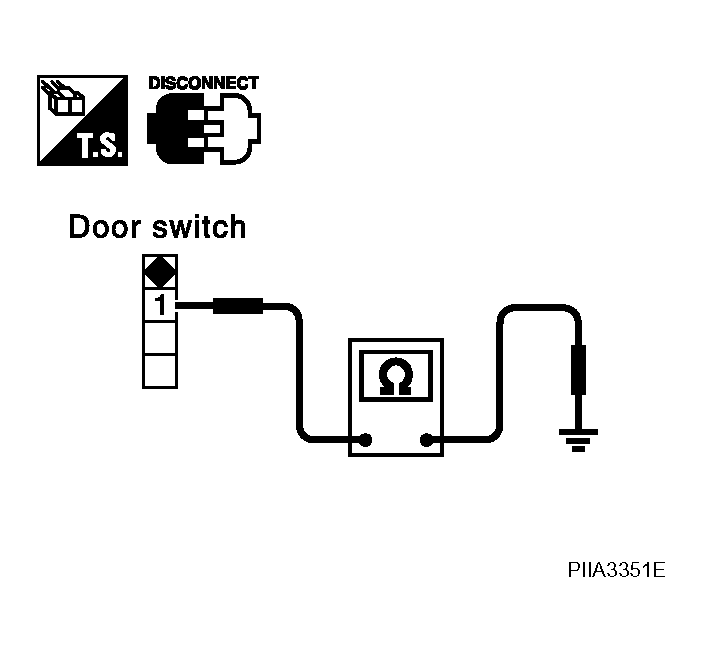

Fig 3: Identifying Continuity Between Door Switch Terminal 1 And Ground Part Of Door Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Check door switch case ground condition.

NG : Replace door switch.
