Fitting Adjustment: Notes

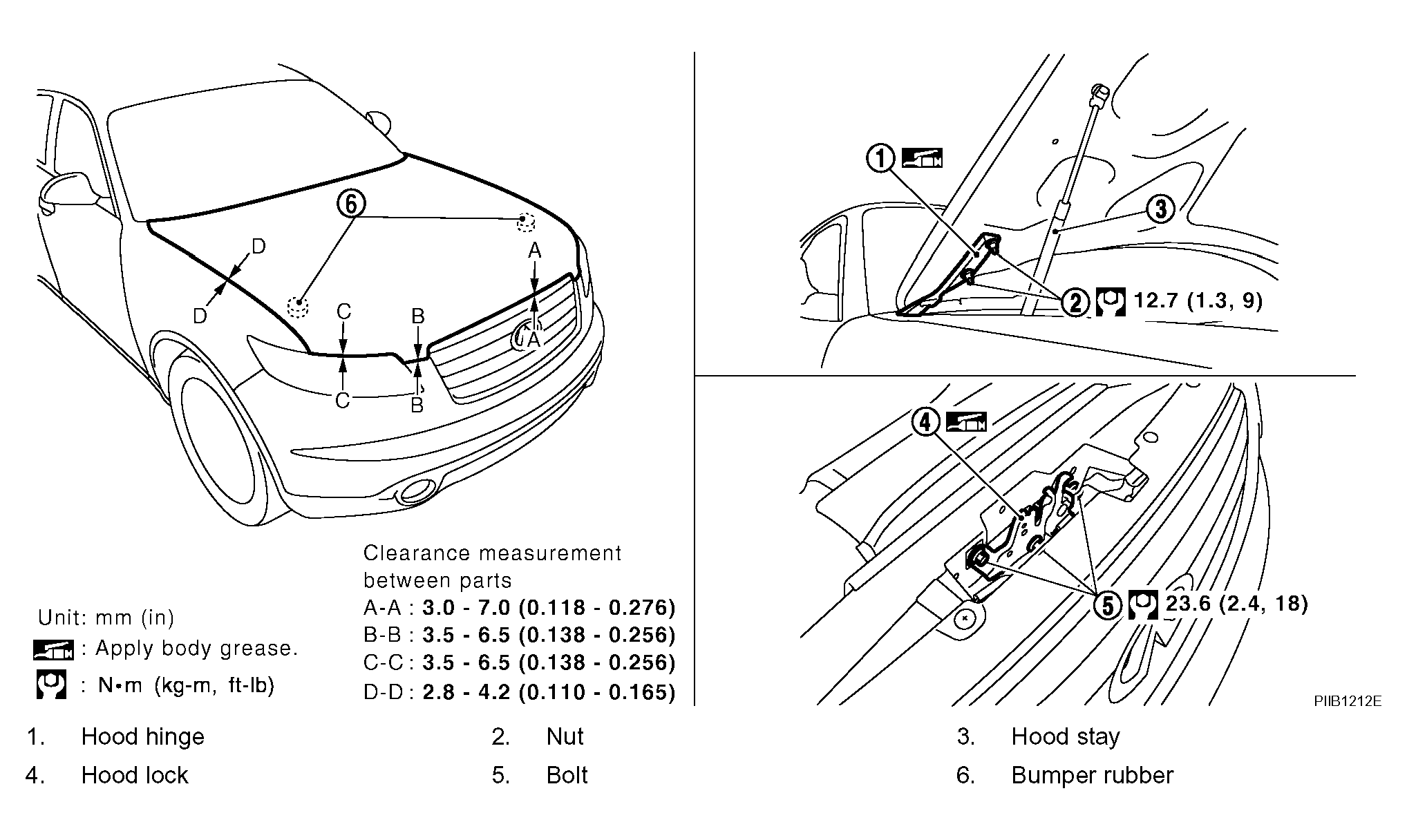

Fig 1: Hood Lock Assembly With Torque Specifications
G04076901Courtesy of NISSAN MOTOR CO., U.S.A.
