Terminals and Reference Value for Back Door Closure Control Unit
BACK DOOR CLOSURE CONTROL UNIT VOLTAGE REFERENCE
| Terminal |
Wire color |
Item |
Signal Input/output |
Condition |
Voltage (V) (Approx.) |
| 1 |
R |
Power source (Fuse) |
Input |
- |
Battery voltage |
| 2 |
PU |

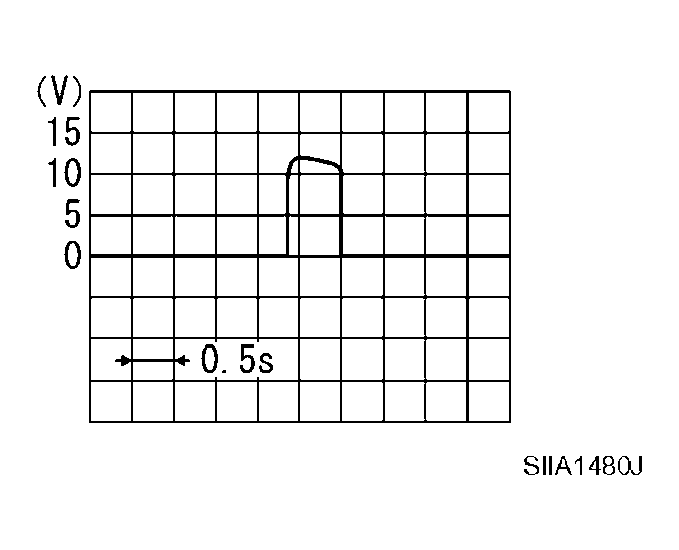

Closure motor (open) signal |
Output |
Fully close --> fully open |
|
| 3 |
G |

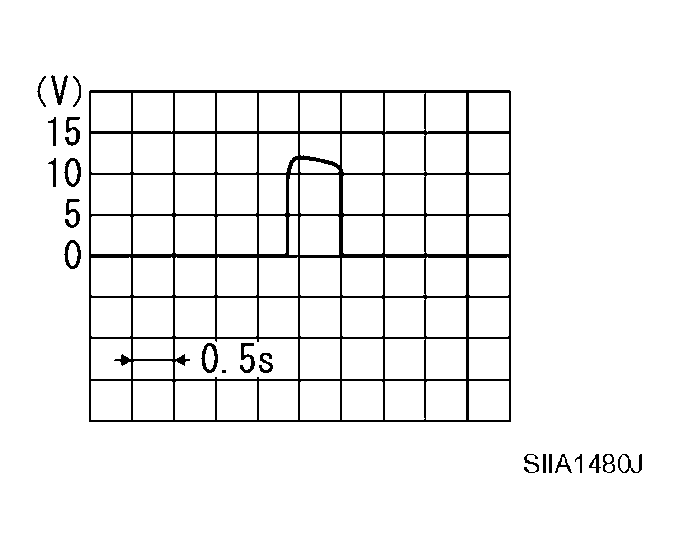

Closure motor (close) signal |
Output |
Fully open --> fully close |
|
| 4 |
B |
Ground |
- |
- |
0 |
| 5 |
W (B) |
Ground |
- |
- |
0 |
| Unlock sensor signal (passenger side) |
Input |
Passenger side door lock is locked |
5 |
| Passenger side door lock is unlocked |
0 |
| 6 |
Y (LG) |
Back door opener switch signal |
Input |
Back door opener switch is ON |
0 |
| Other than above |
5 |
| 7 |
OR |

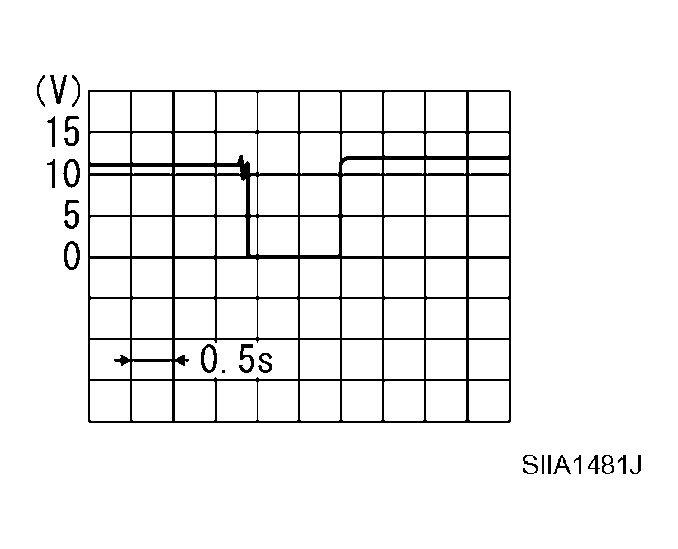

Half-latch switch signal |
Input |
Fully open --> fully close |
|
| 8 |
L |

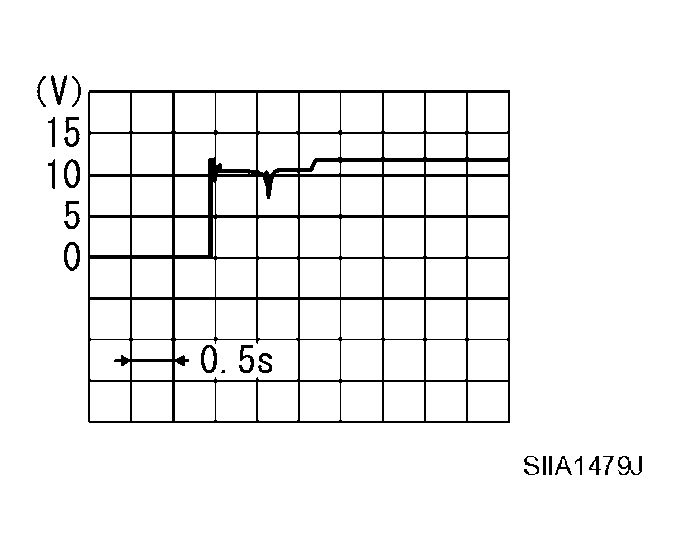

Close switch signal |
Input |
Fully open --> fully close |
|
| 9 |
P |

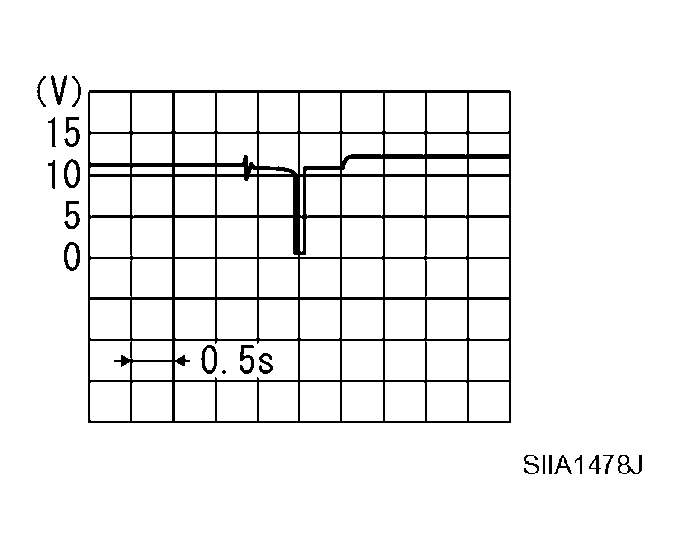

Open switch signal |
Input |
Fully open --> fully close |
|
