Mainshaft Assembly

  1. Separate front case and rear case, then remove mainshaft assembly. Refer to "FRONT CASE AND REAR CASE ".
  2. Remove snap ring from mainshaft.
  3. Remove spacer from mainshaft.
  4. Remove electric controlled coupling and sprocket from mainshaft.
  5. Remove needle bearing from mainshaft.

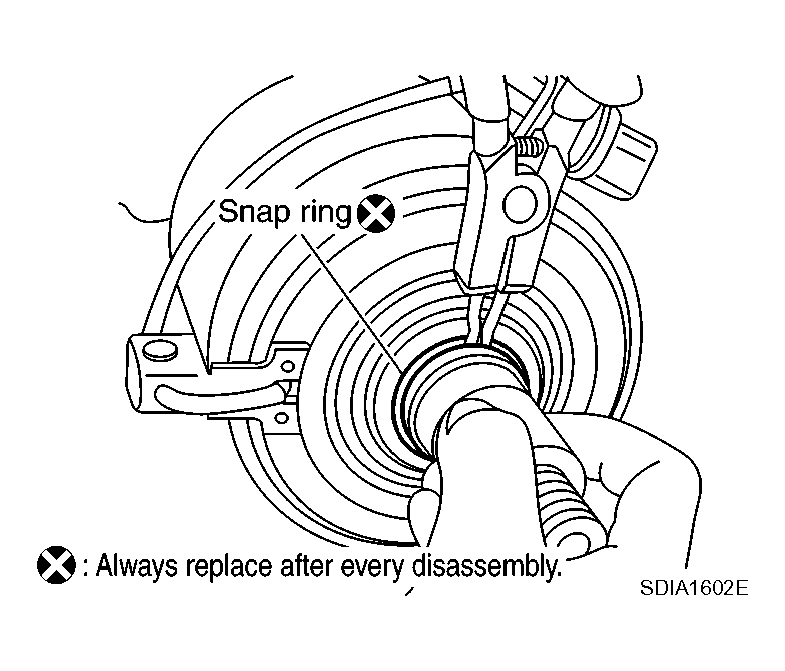

    Fig 1: Removing Snap Ring From Mainshaft
    G04076095Courtesy of NISSAN MOTOR CO., U.S.A.
