Steering Angle Sensor Circuit Inspection

1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of steering angle sensor for damage, bend and loose connection (sensor side and harness side).

OK or NG

OK : GO TO 2.

NG : Repair terminal or connector.

1. Disconnect steering angle sensor connector.
2. Check resistance between steering angle sensor harness connector terminals.
   TERMINAL RESISTANCE CHART



   Steering angle sensor connector	Terminals		Resistance (Approx.)
   M14 4	5	54 - 66	Ω

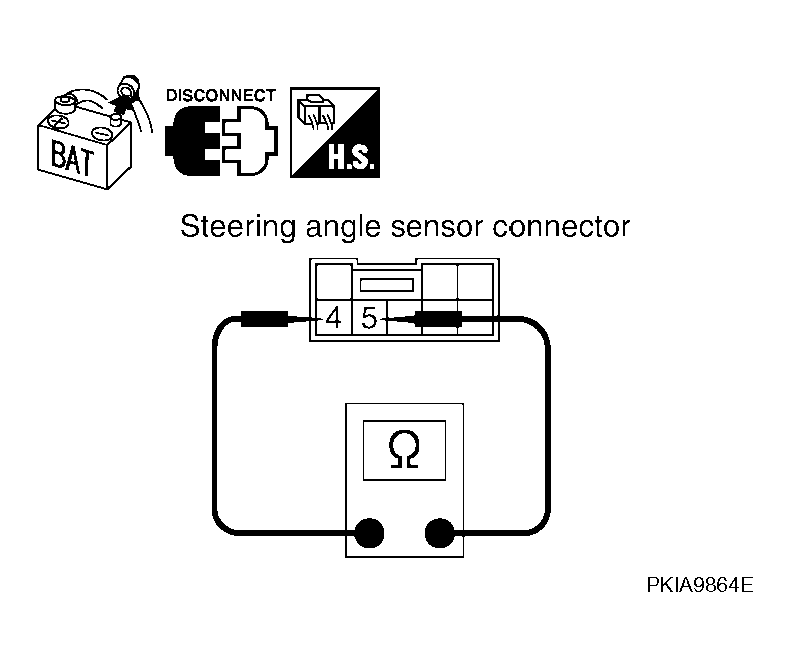

   Fig 1: Identifying Resistance Between Steering Angle Sensor Harness Connector Terminals

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Replace steering angle sensor.

NG : Repair harness between steering angle sensor and data link connector.
