Consult-II Reference Value In Data Monitor Mode

Data are reference value.

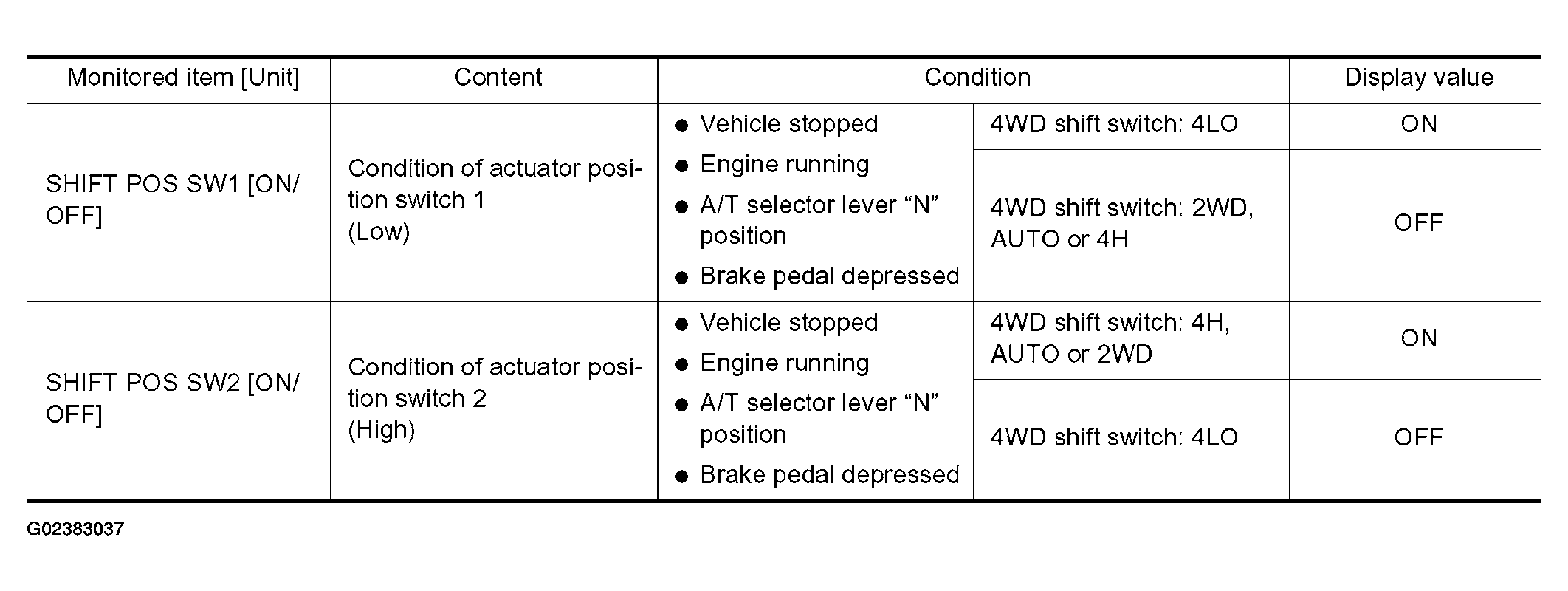

Fig 1: Actuator Position Switch - CONSULT-II Reference Value In Data Monitor Mode

G02383037

Courtesy of NISSAN MOTOR CO., U.S.A.
