Consult-II Reference Value In Data Monitor Mode

Data are reference value.

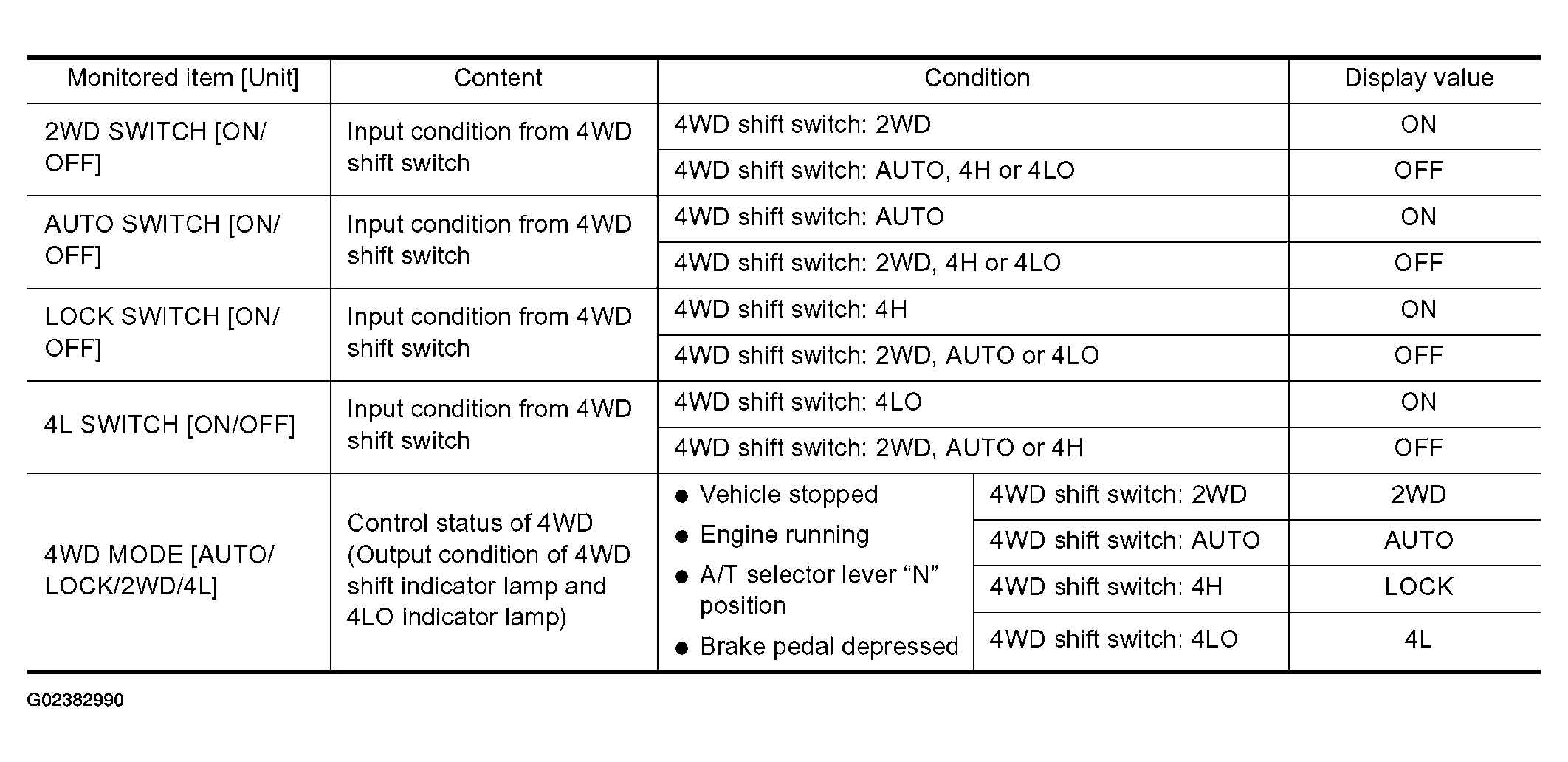

Fig 1: 4WD Shift Switch - Consult-II Reference Value In Data Monitor Mode
G02382990Courtesy of NISSAN MOTOR CO., U.S.A.
