Removal and Installation

Refer to the figure for transfer control device removal and installation information.

CAUTION:

Change vehicle state to 2WD or AUTO, and then remove and install transfer control device.
Check 4WD shift indicator after installation. Refer to "PRECAUTIONS FOR TRANSFER ASSEMBLY AND TRANSFER CONTROL UNIT REPLACEMENT ".

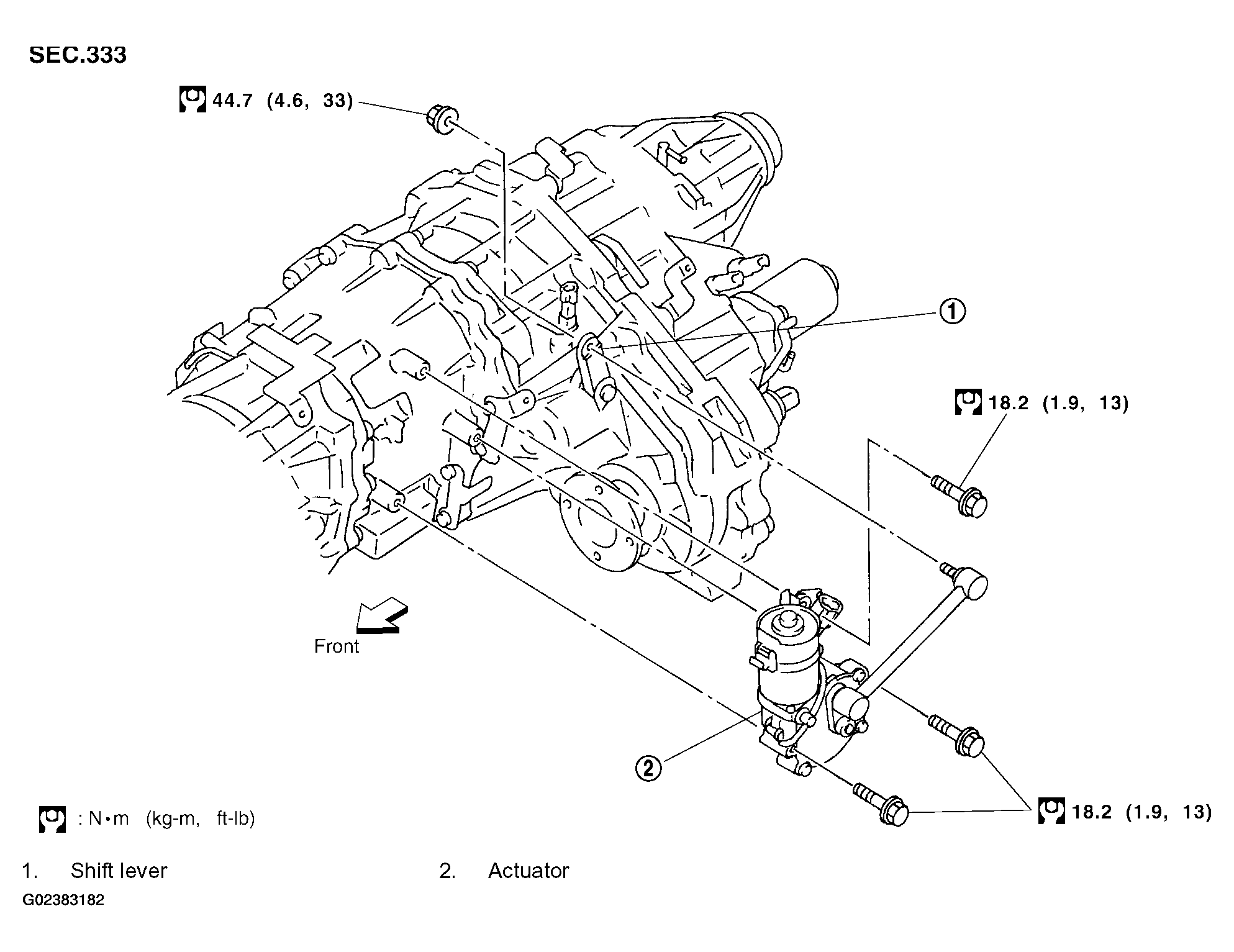

Fig 1: Exploded View Of Transfer Control Device With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
