Rear Case

  1. Remove the rear case bolts.

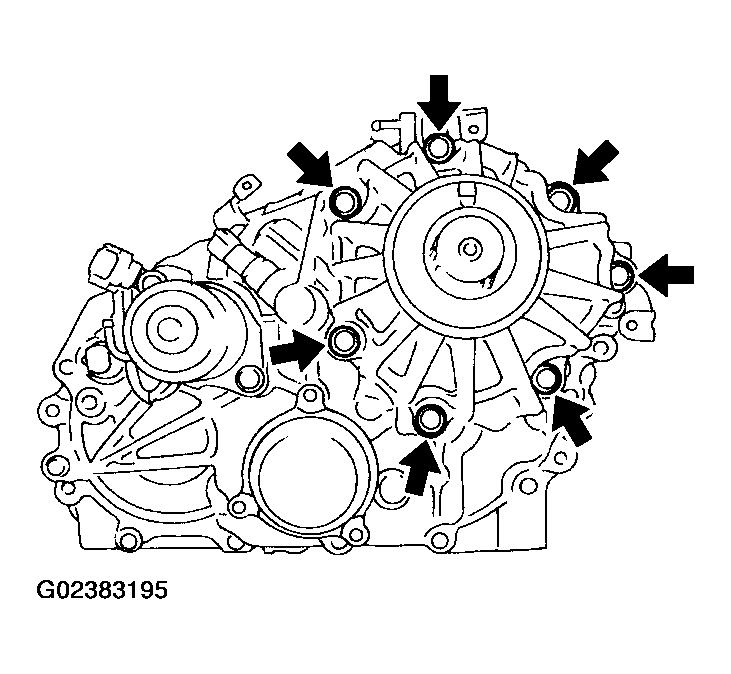

    Fig 1: Identifying Rear Case Bolts
    G02383195Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the rear case from the center case.
    Fig 2: Identifying Rear Case
    G02383196Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the dust cover, using suitable tool.
    Fig 3: Removing Dust Cover Using Suitable Tool
    G02383197Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the oil seal, using suitable tool.
    CAUTION: Do not damage rear case.
  5. Remove the air breather.
    Fig 4: Removing Air Breather
    G02383198Courtesy of NISSAN MOTOR CO., U.S.A.
