Direct Clutch: Assembly

  1. Install drive plates, driven plates and retaining plate in direct clutch drum.
    CAUTION: Take care with the order of plates.

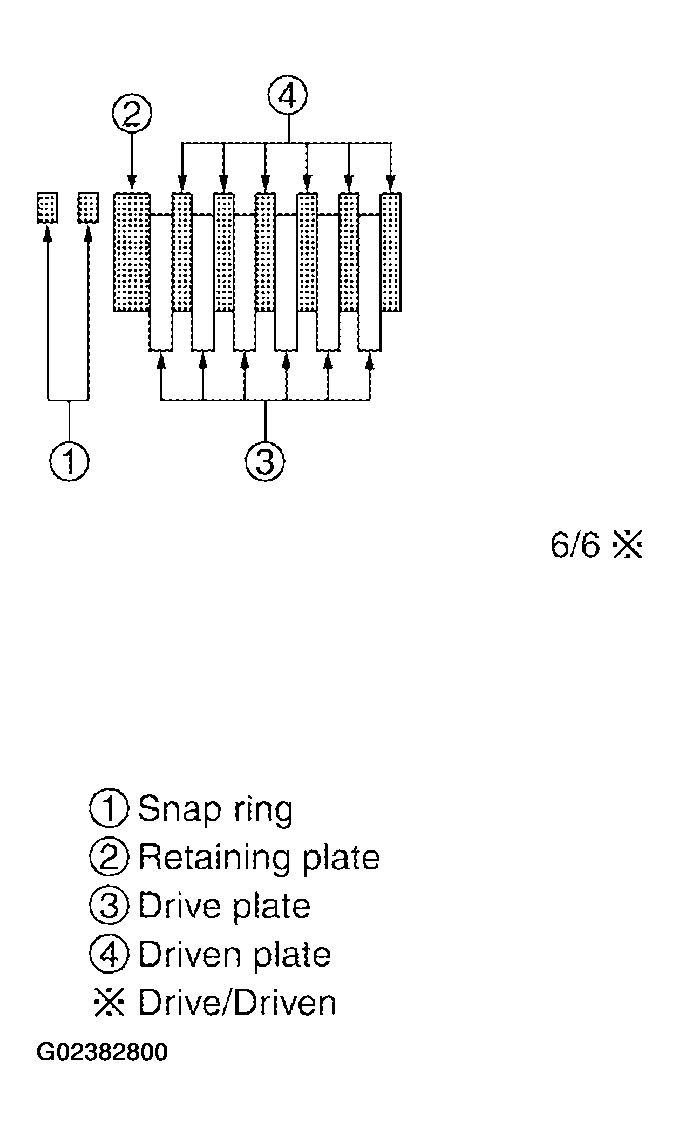

    Fig 1: Installing Drive Plates, Driven Plates & Retaining Plate In Direct Clutch Drum
    G02382800Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install snap rings in direct clutch drum, using flat-bladed screwdriver.

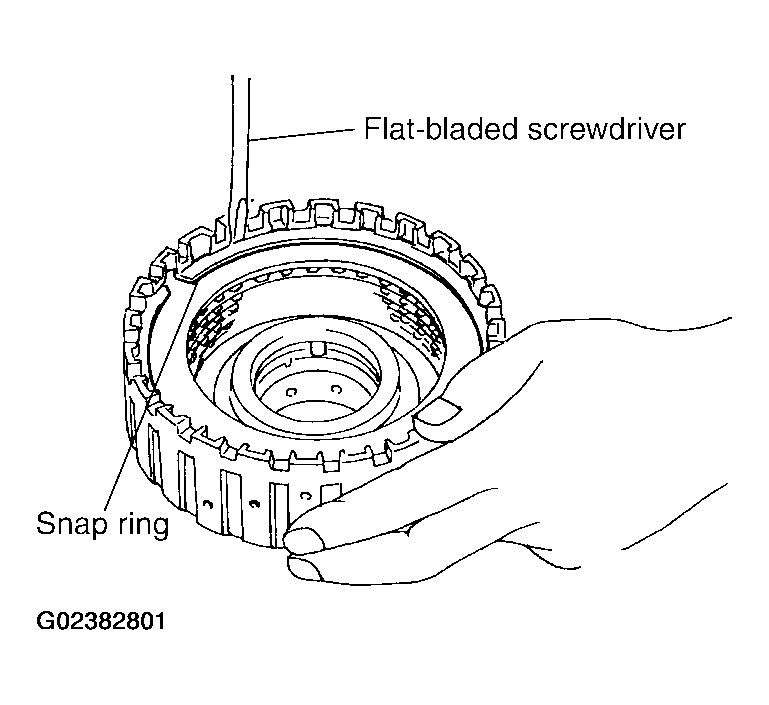

Fig 2: Installing Snap Rings In Direct Clutch Drum
G02382801Courtesy of NISSAN MOTOR CO., U.S.A.
