Home >> Infiniti >> 2005 >> QX56 AWD >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension >> Front Suspension Assembly >> Components

Front Suspension Assembly: Components

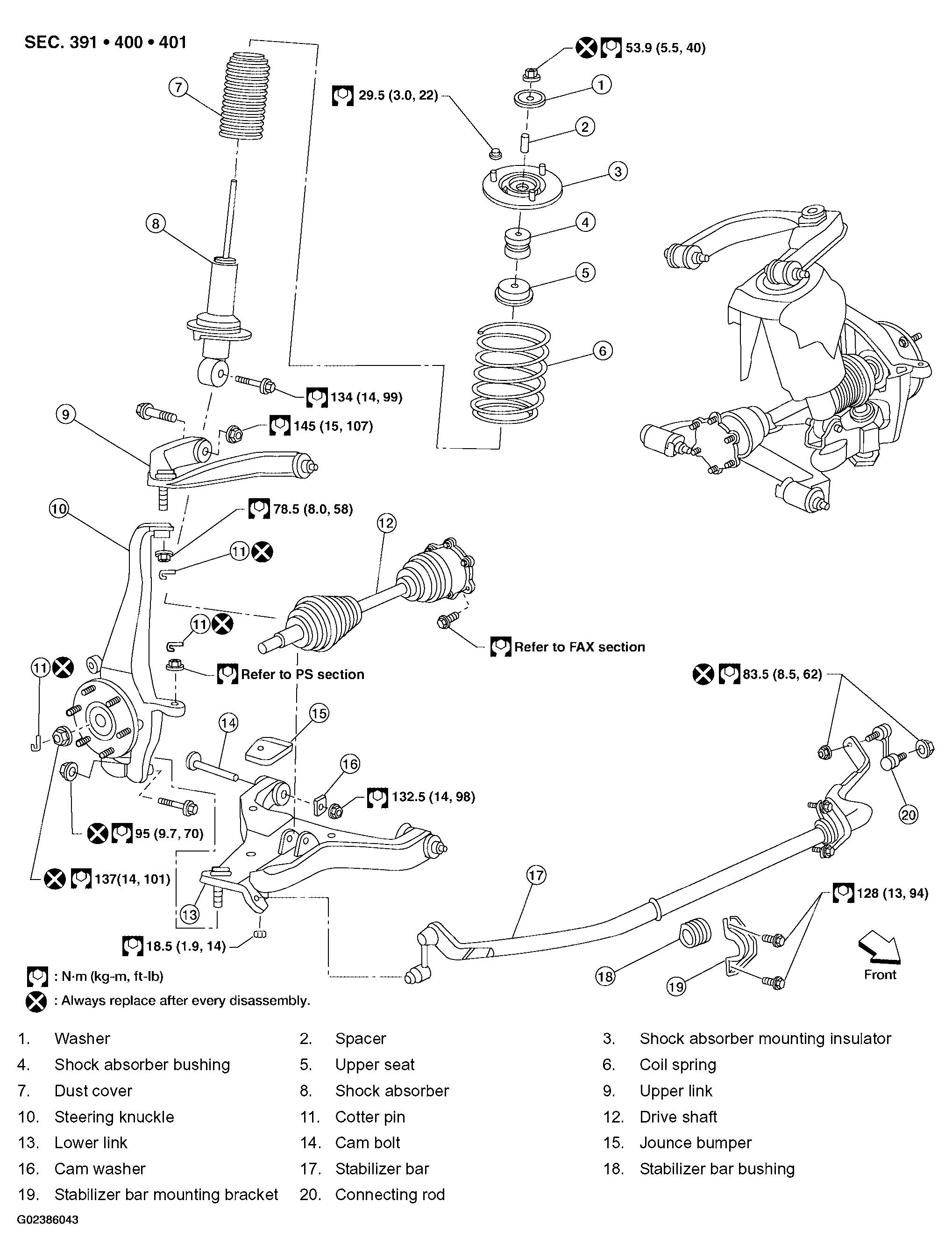

Fig 1: Front Suspension Assembly Replacement Components With Torque Specifications

G02386043

Courtesy of NISSAN MOTOR CO., U.S.A.
