Removal and Installation: Notes

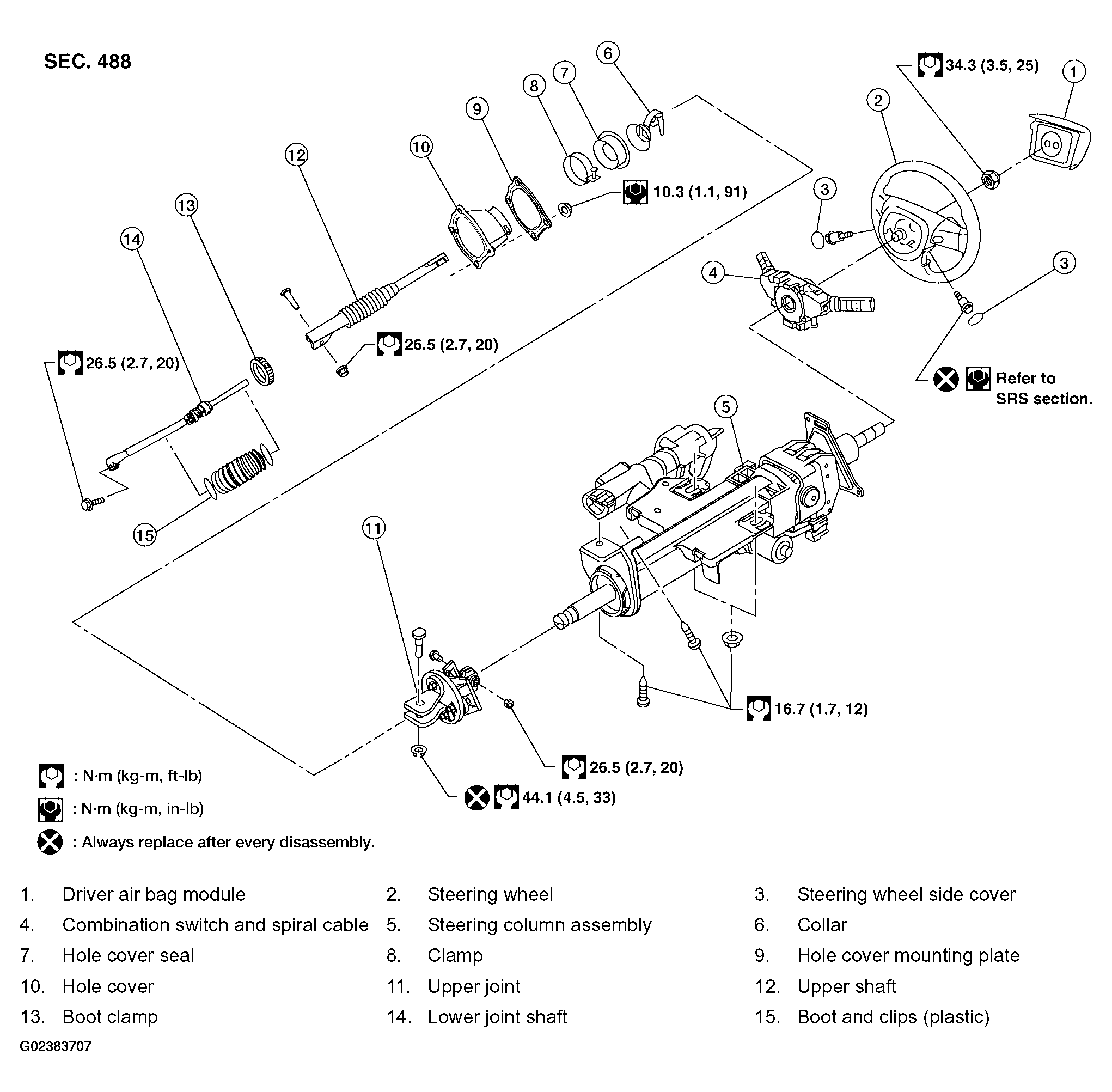

Fig 1: Exploded View Of Steering Column With Torque Specifications
G02383707Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Do not exert any load or impact in the axial direction immediately before or after column removal.
  • Do not to move steering gear during removal of steering column assembly.
