Infiniti
>>
2005
>>
QX56 AWD
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering System
>>
Service Data And Specifications (SDS)
>>
Steering Gear
Steering Gear

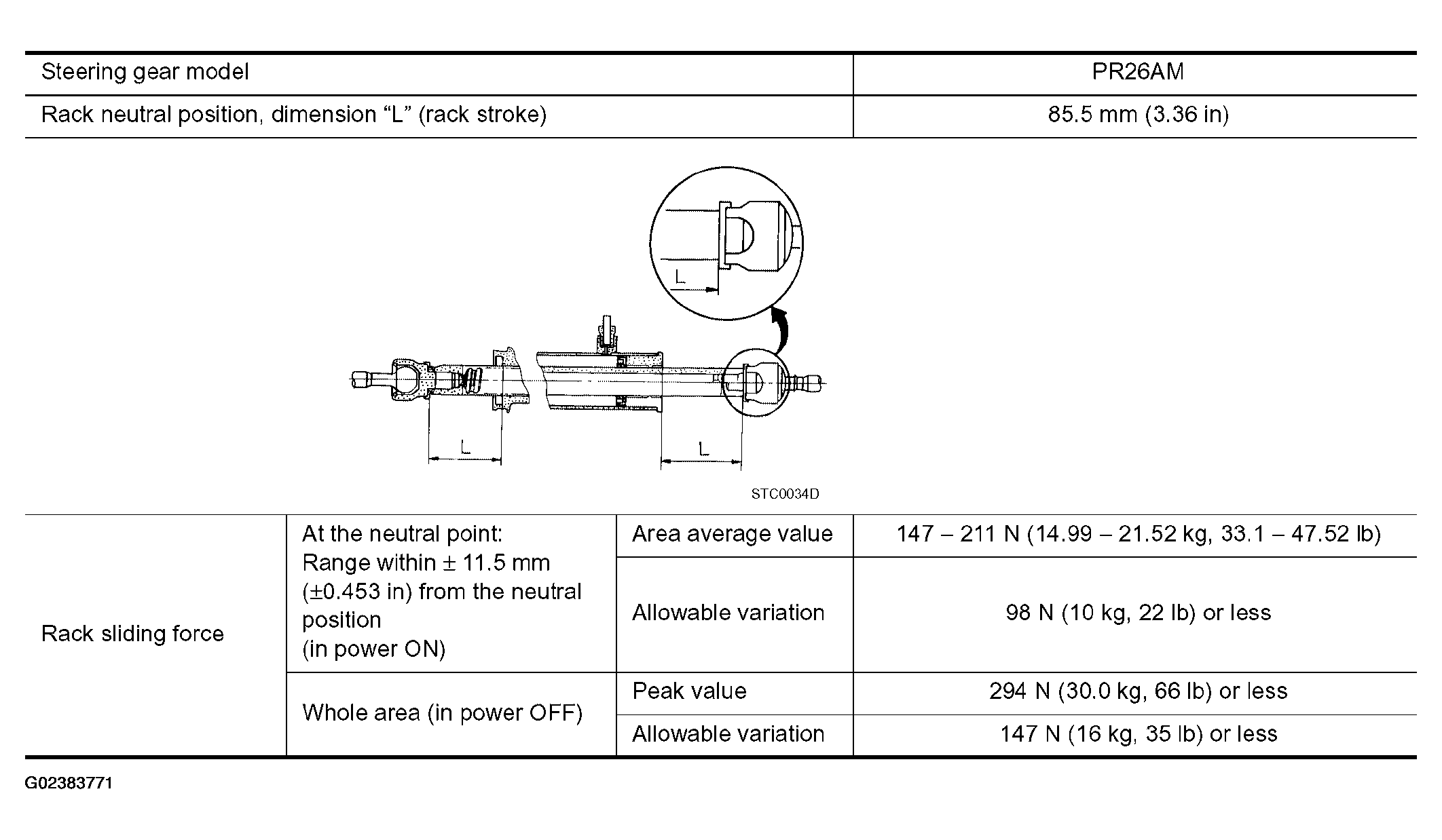

Fig 1: Identifying Steering Gear Rack Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
