LEMON Manuals
: Even more car manuals for everyone
Home
>>
Infiniti
>>
2005
>>
QX56 AWD
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering System
>>
Power Steering Oil Pump
>>
Disassembly and Assembly
>>
Notes
Disassembly and Assembly: Notes

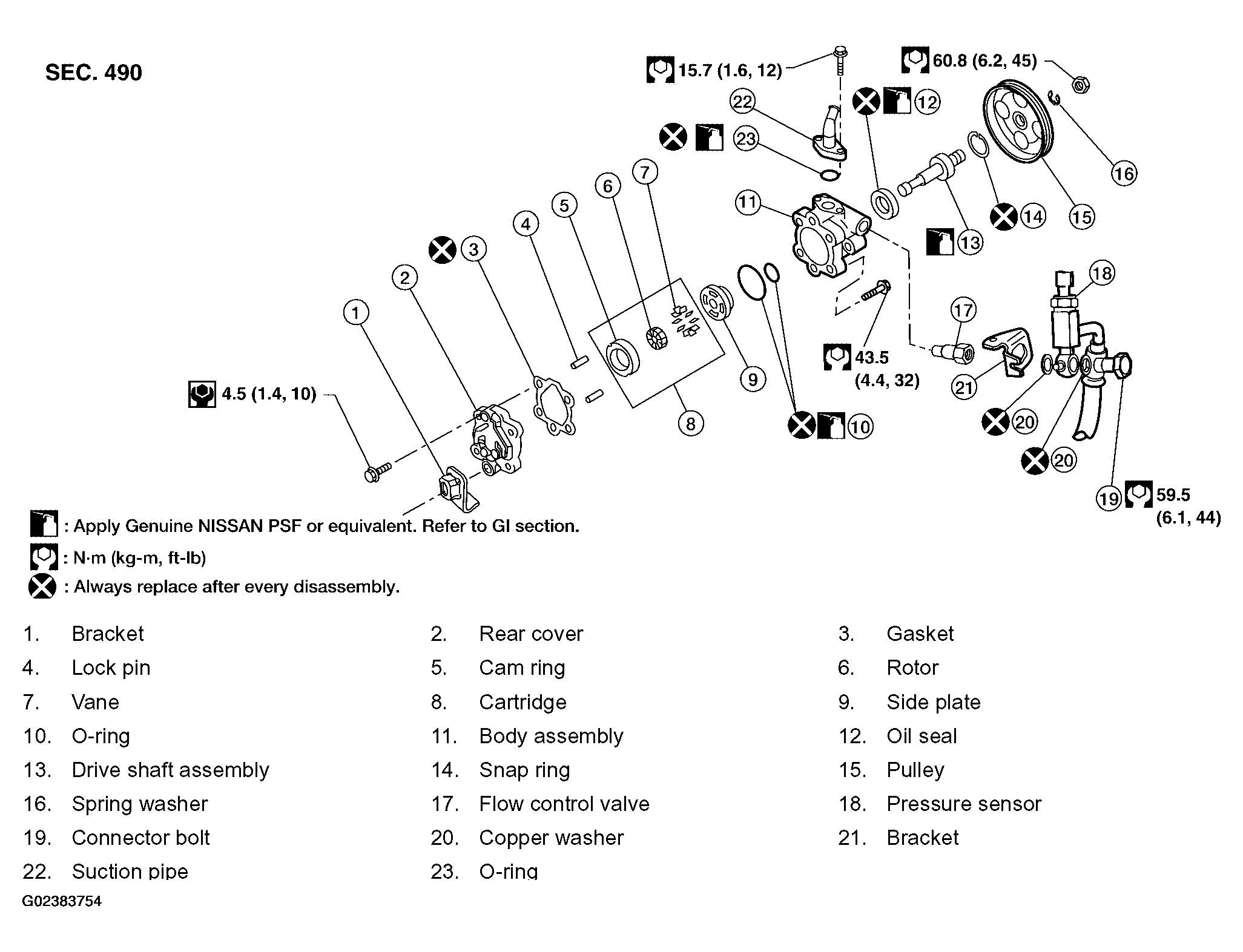

Fig 1: Exploded View Of Power Steering Oil Pump With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
