Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System
>>
Evaporative Emission System
>>
Description
>>
Evaporative Emission Line Drawing
Evaporative Emission Line Drawing

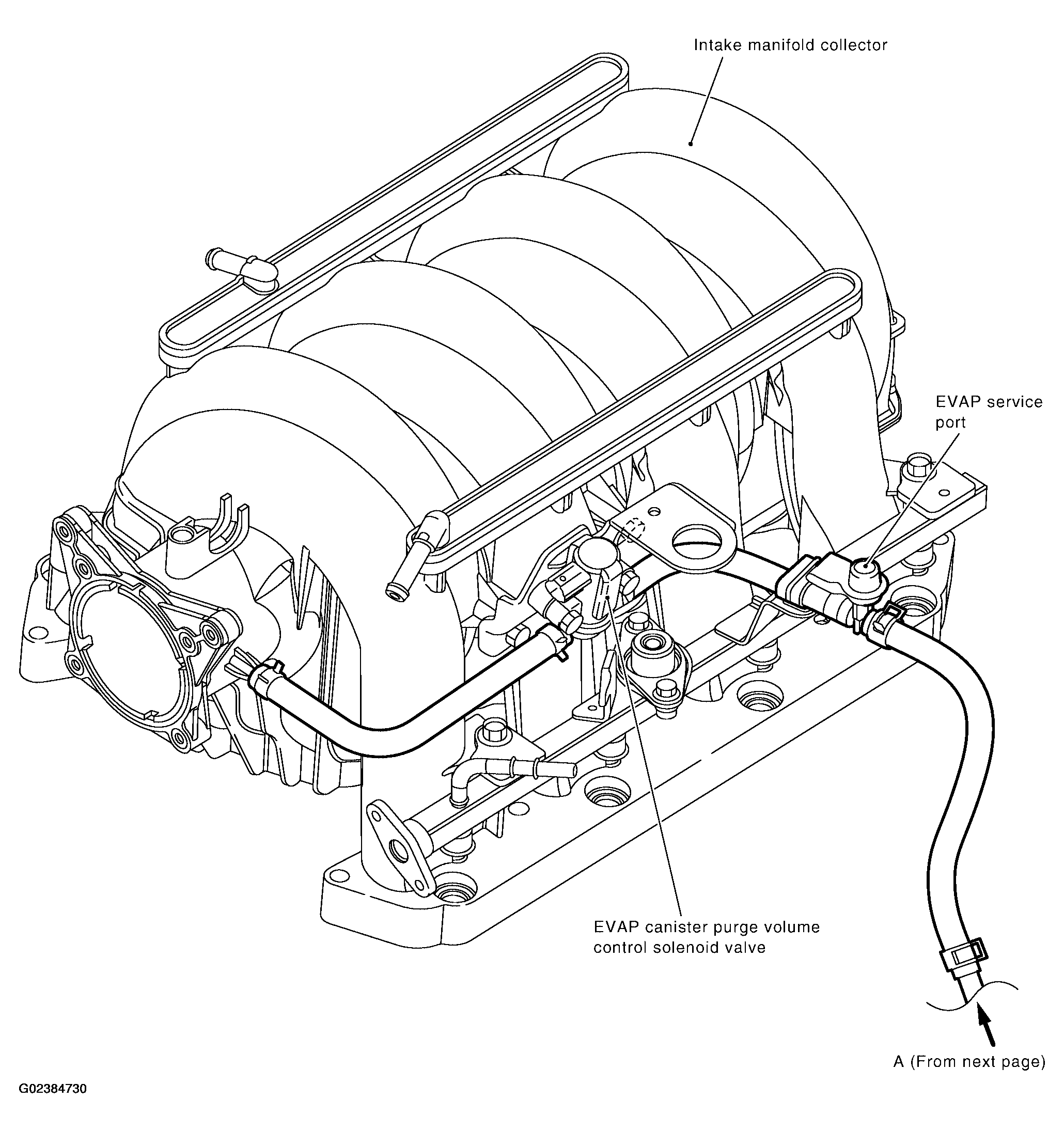

Fig 1: Identifying Evaporative Emission Line Drawing (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.

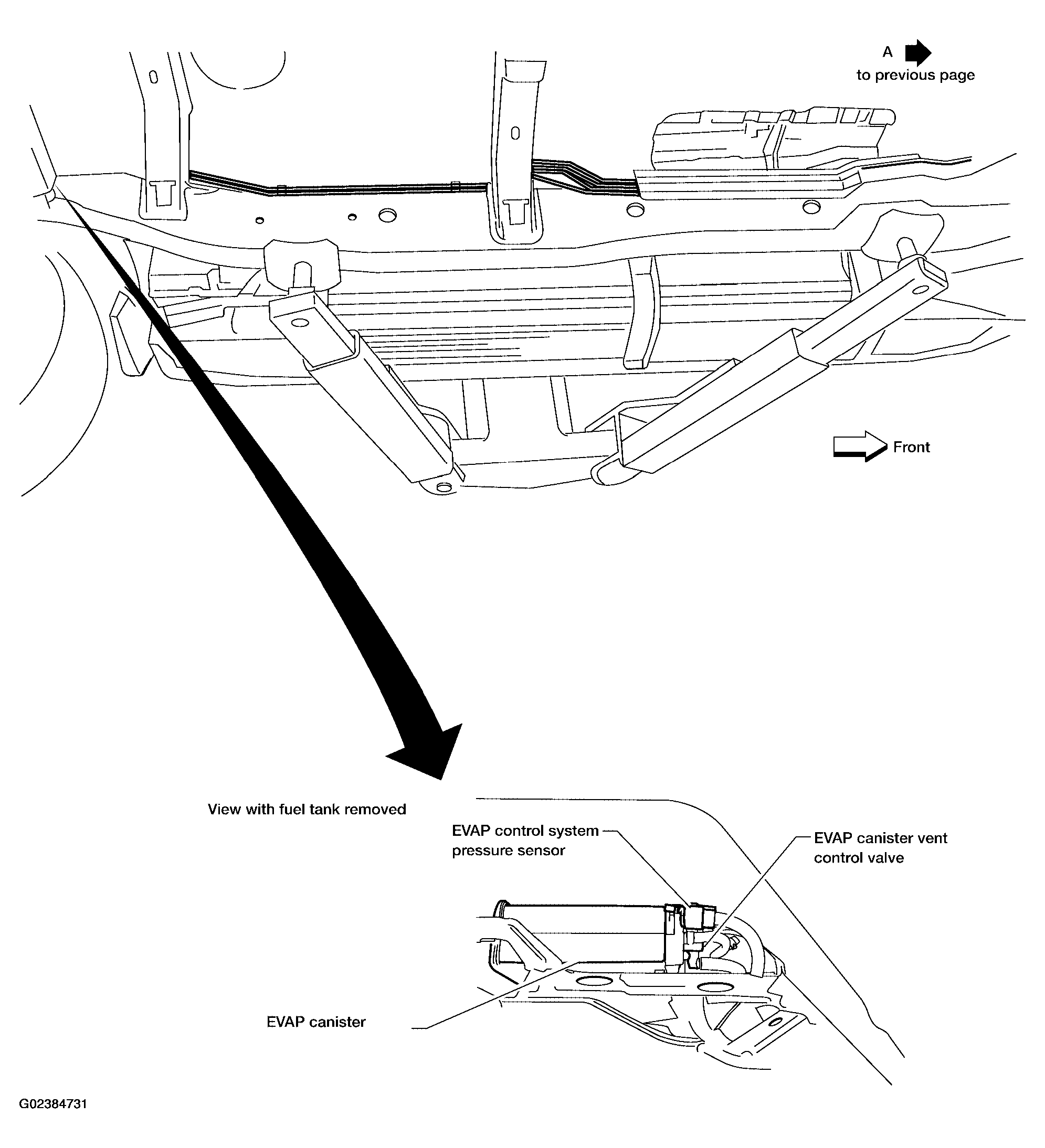

Fig 2: Identifying Evaporative Emission Line Drawing (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
