CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

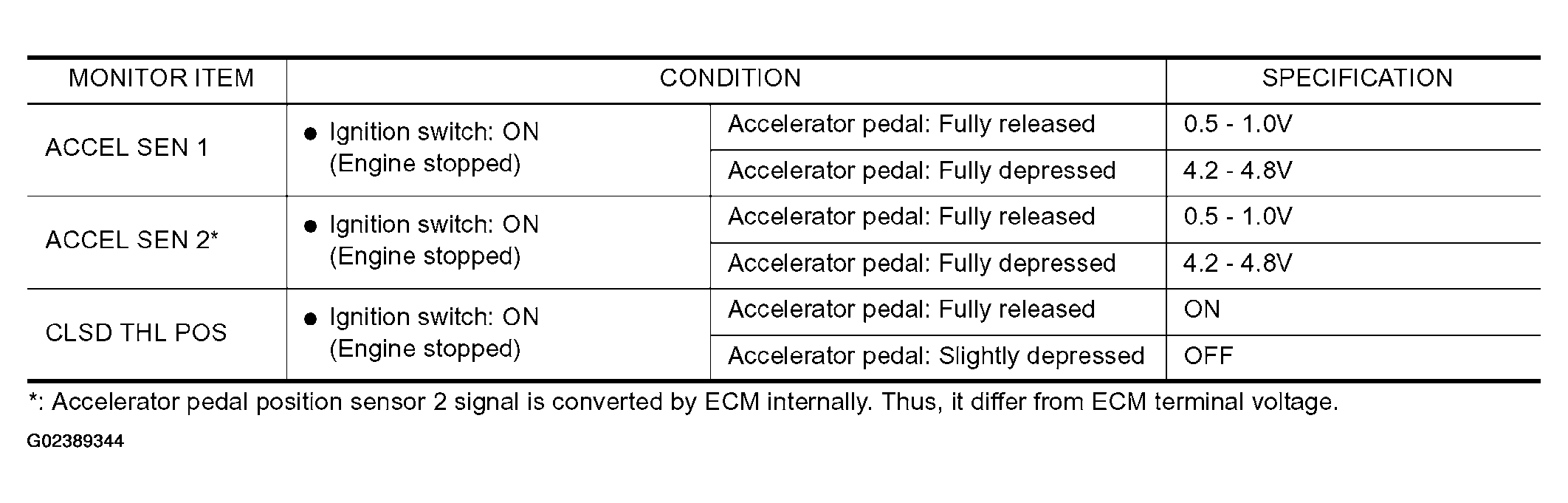

Fig 1: Specification Data And Reference Values

Courtesy of NISSAN MOTOR CO., U.S.A.

*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differ from ECM terminal voltage.
