DTC P0139, P0159: Ho2S2: Wiring Diagram: Bank

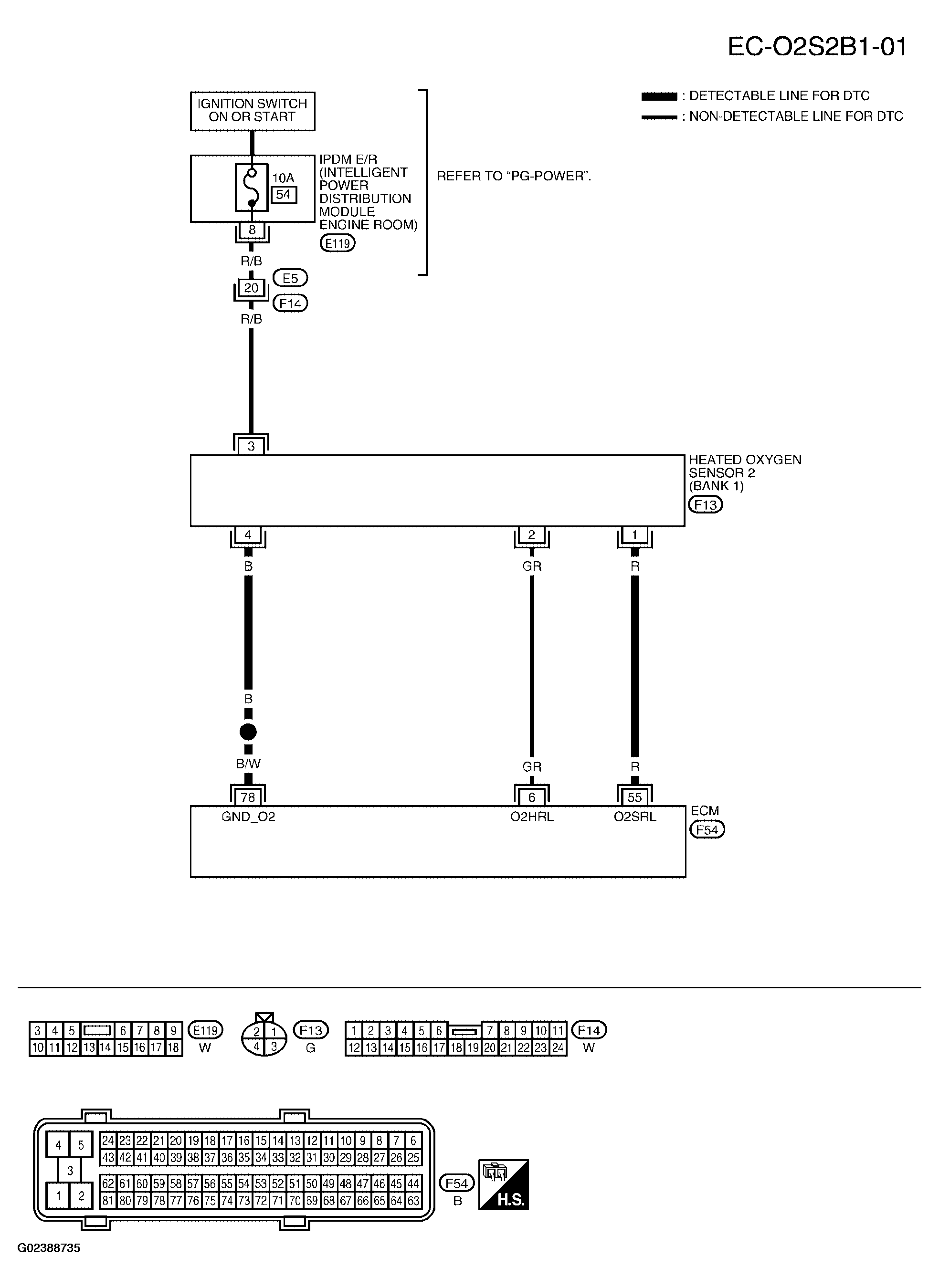

Fig 1: Wiring Diagram - EC-O2S2B1-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

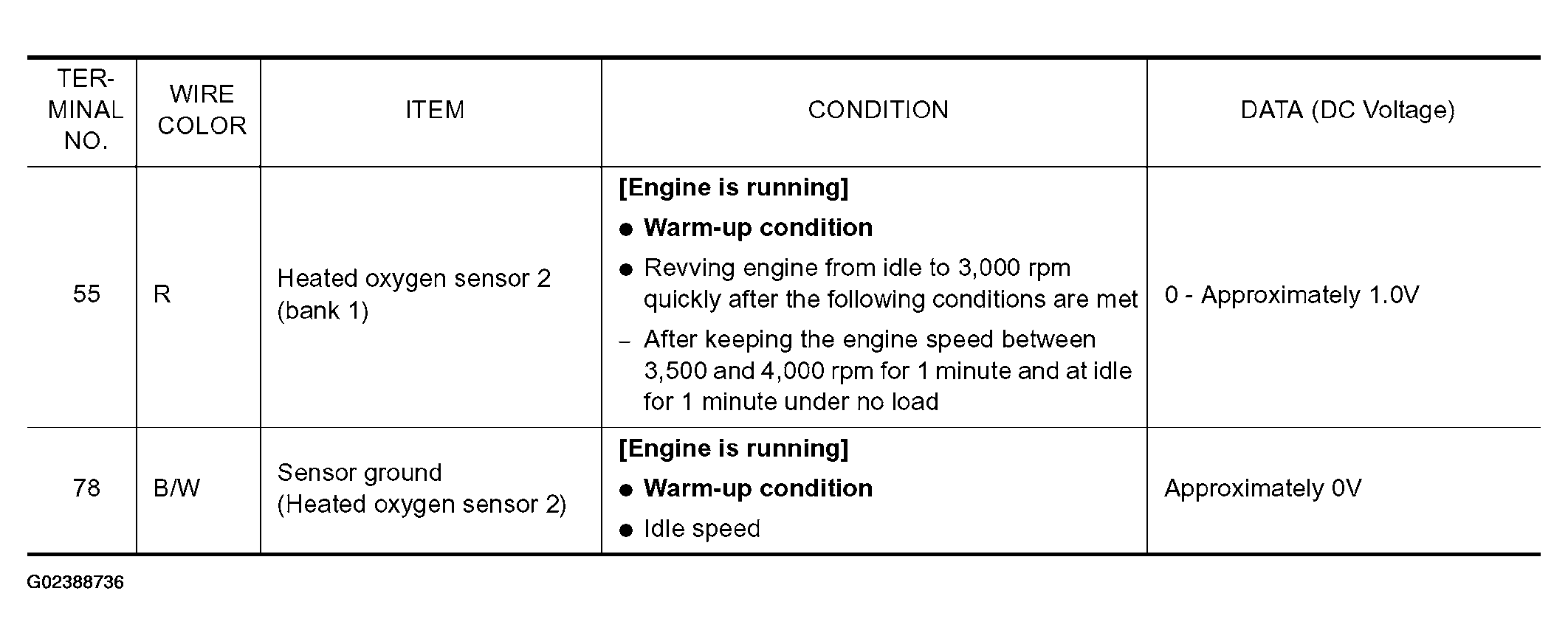

Fig 2: Heated Oxygen Sensor 2 - Specification data

Courtesy of NISSAN MOTOR CO., U.S.A.

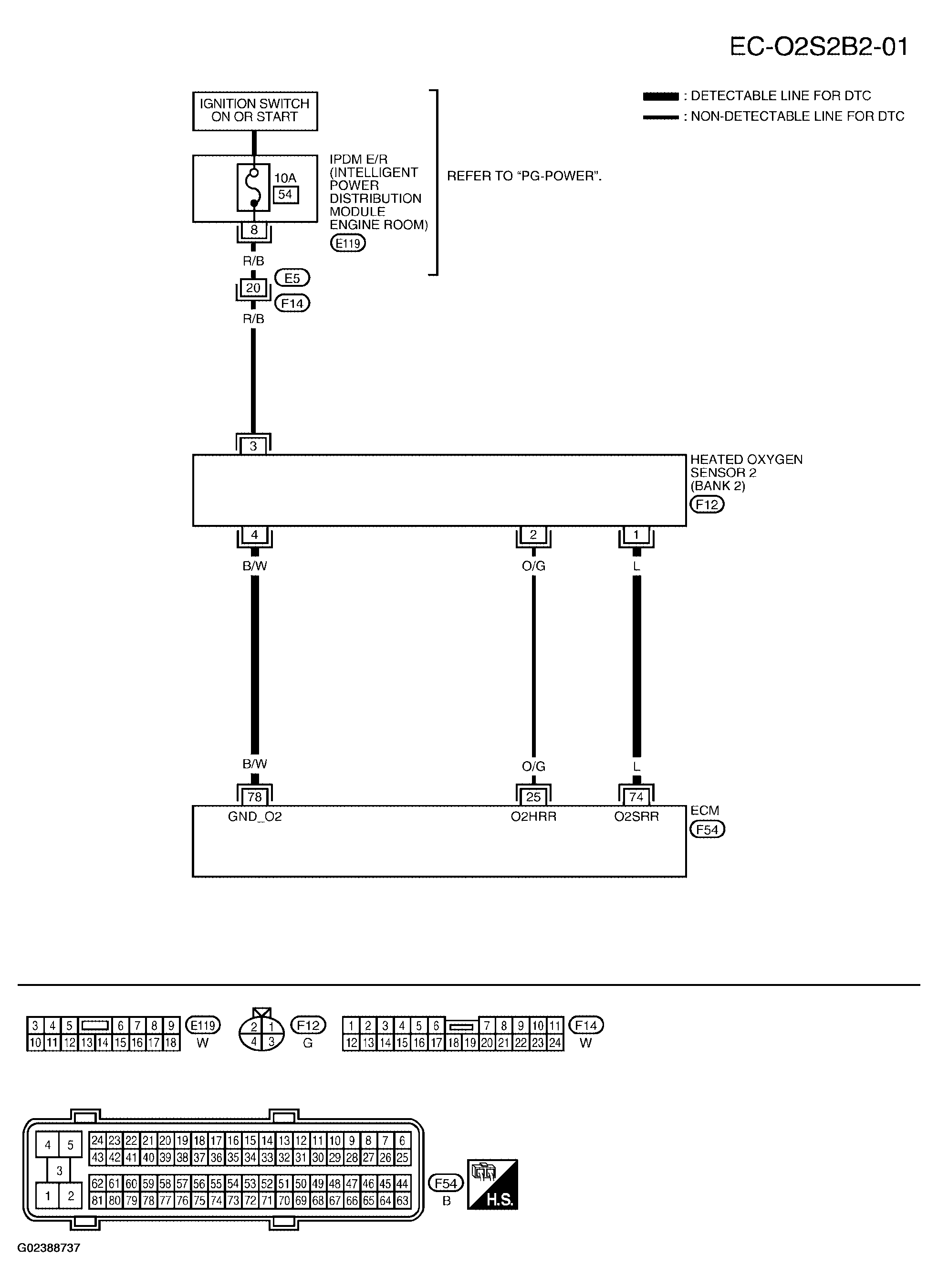

Fig 1: Wiring Diagram - EC-O2S2B2-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Fig 2: Heated Oxygen Sensor 2 - Bank 2 Specification Data

Courtesy of NISSAN MOTOR CO., U.S.A.
