DTC P0101: MAF Sensor
>>
On Board Diagnosis Logic
On Board Diagnosis Logic

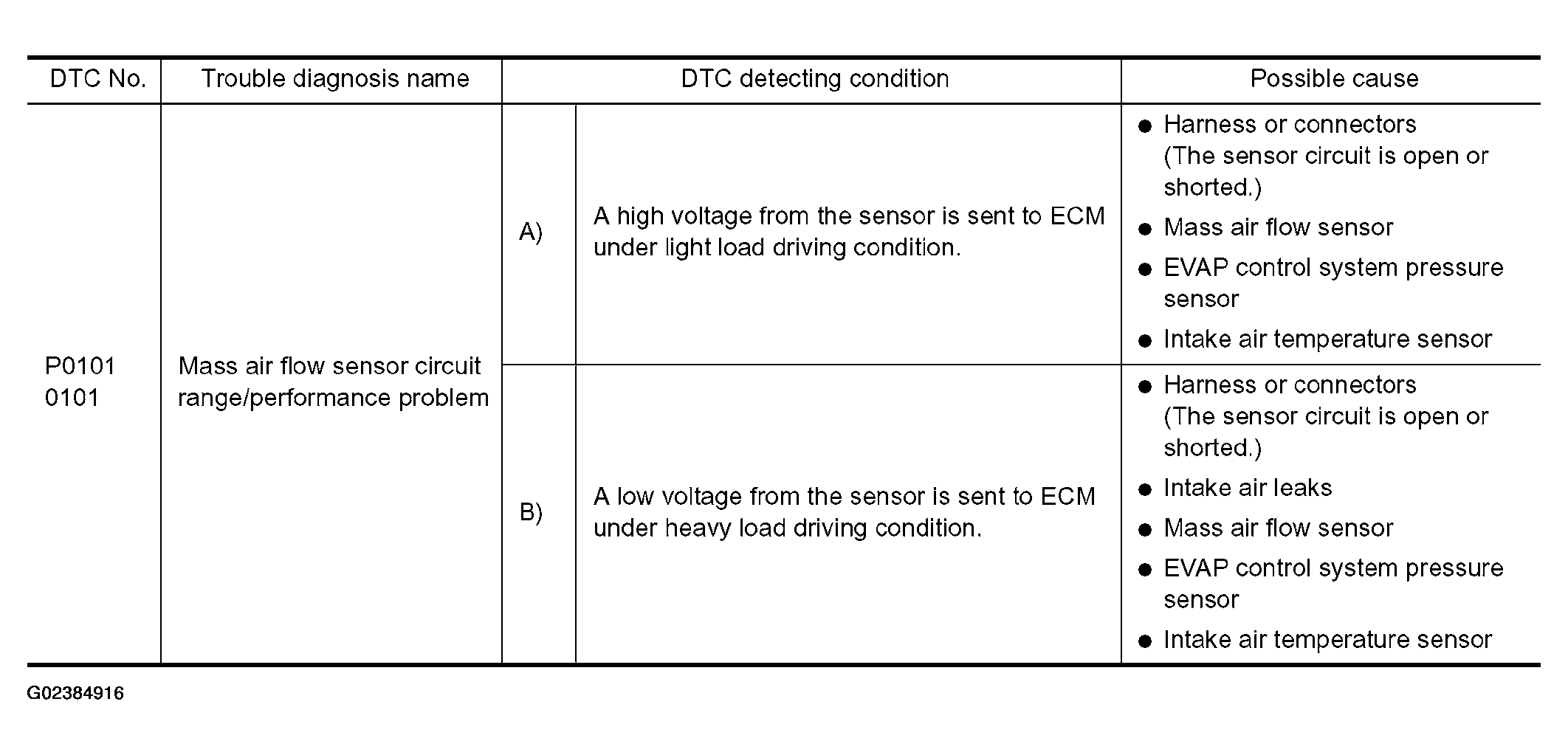

Fig 1: DTC P0101 MAF Sensor - On Board Diagnosis Logic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
