Service Data And Specification (SDS): Generator

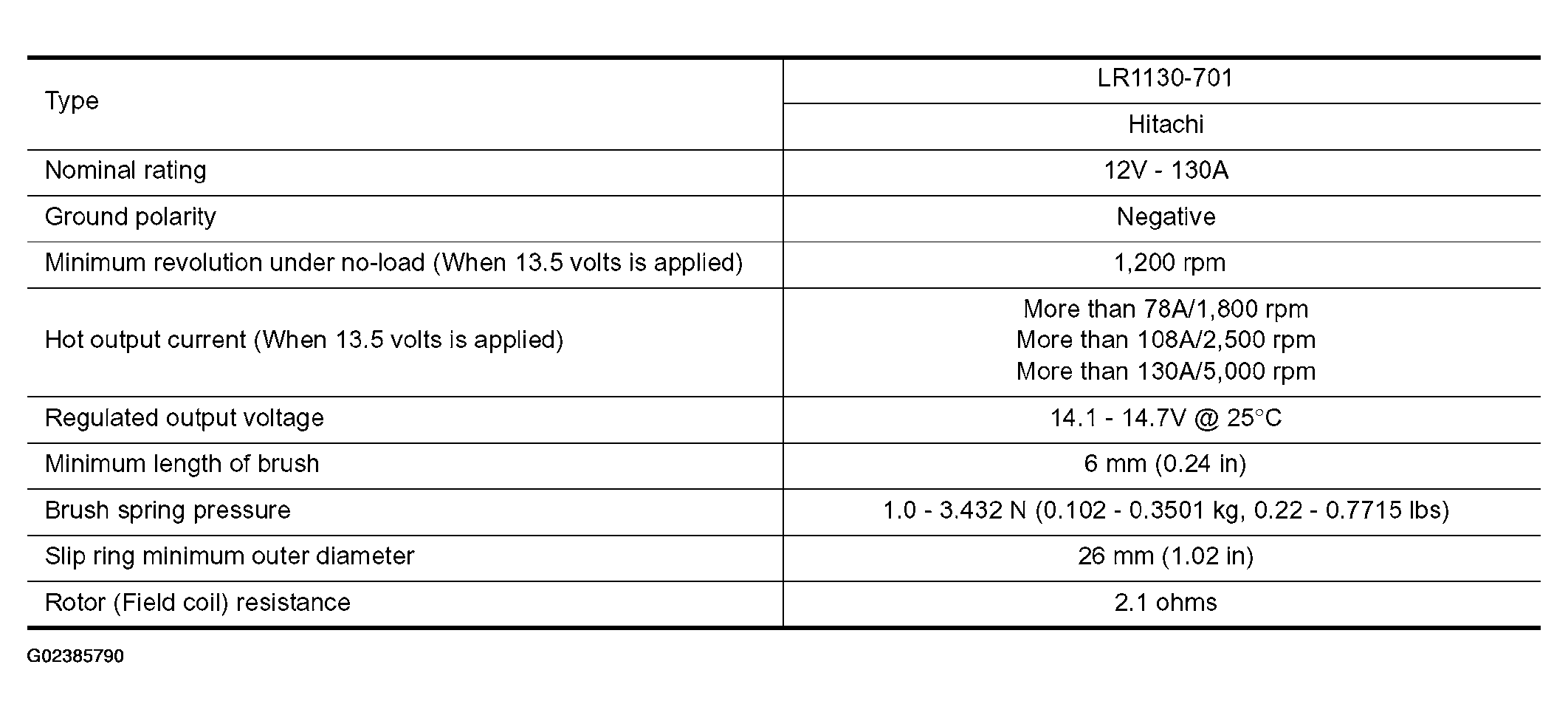

Fig 1: Generator Specification Chart

G02385790

Courtesy of NISSAN MOTOR CO., U.S.A.
