Removal and Installation: Notes

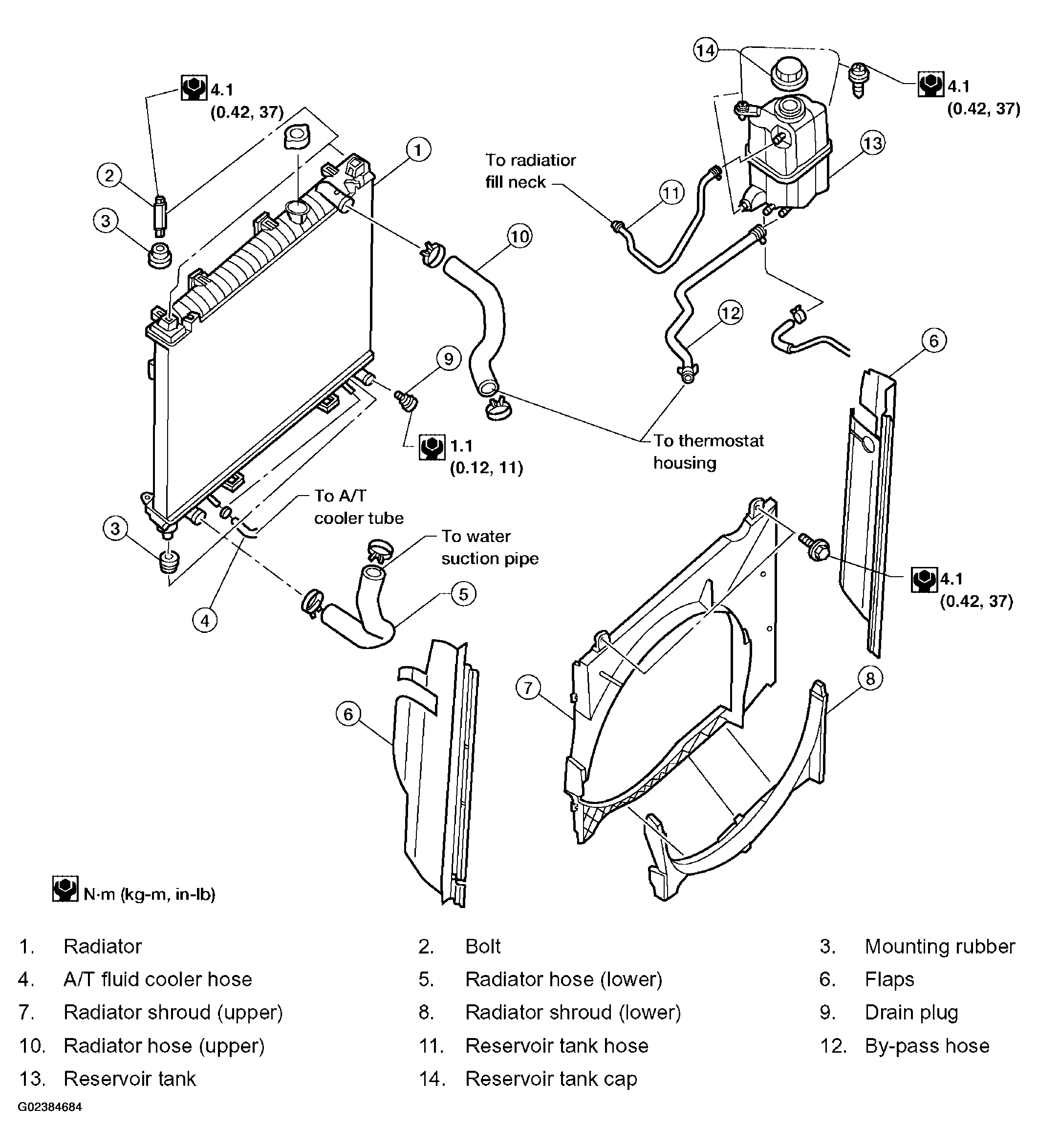

Fig 1: Exploded View Of Radiator Components - With Torque Specifications
G02384684Courtesy of NISSAN MOTOR CO., U.S.A.
WARNING: Never remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure engine coolant escaping from the radiator.
