Infiniti
>>
2005
>>
QX56 AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Driver Information System
>>
Rear Sonar System
>>
Terminals And Reference Value For Sonar Control Unit
Terminals And Reference Value For Sonar Control Unit

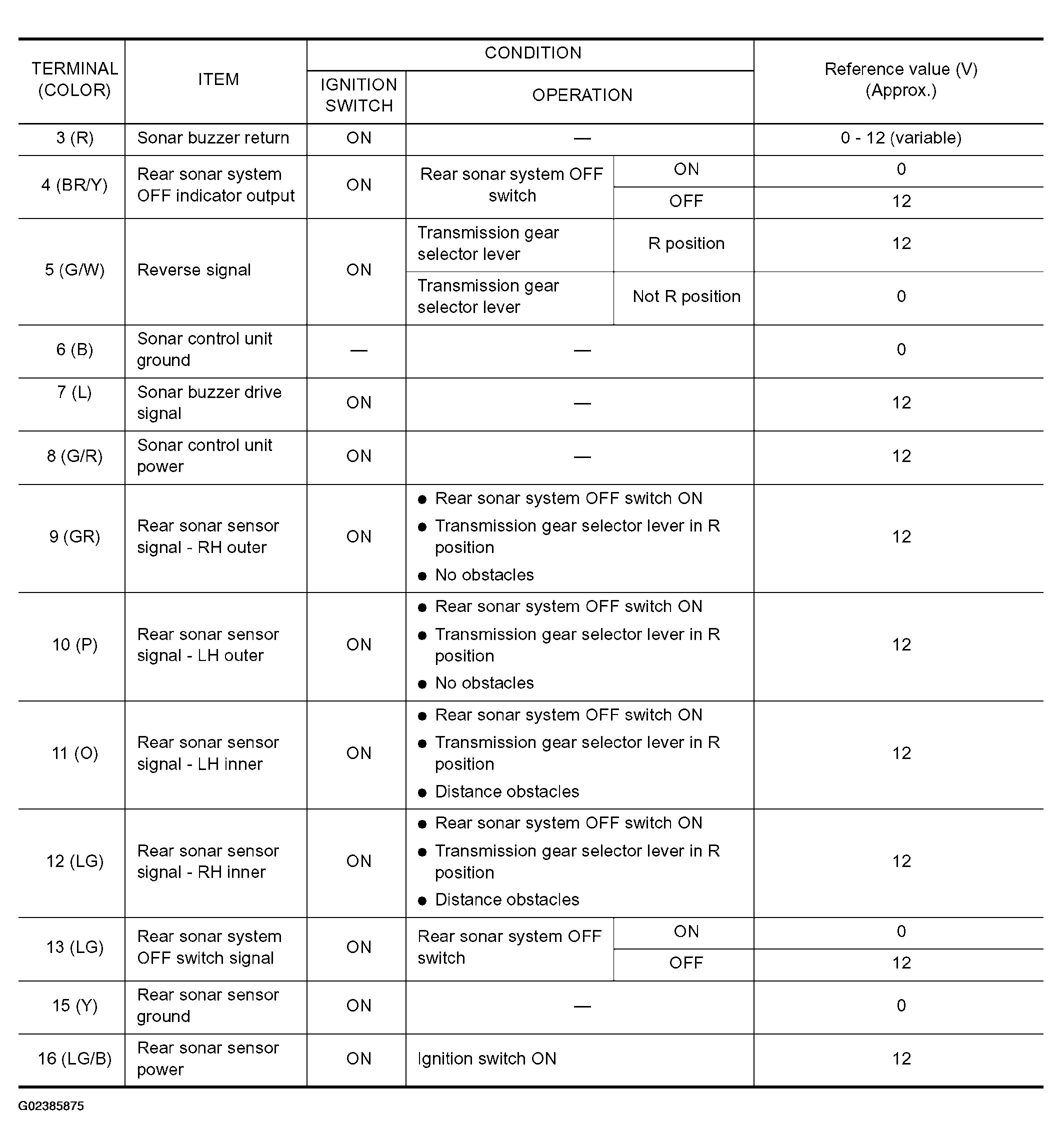

Fig 1: Sonar Control Unit Terminals And Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
