Rear Window Defogger: Schematic

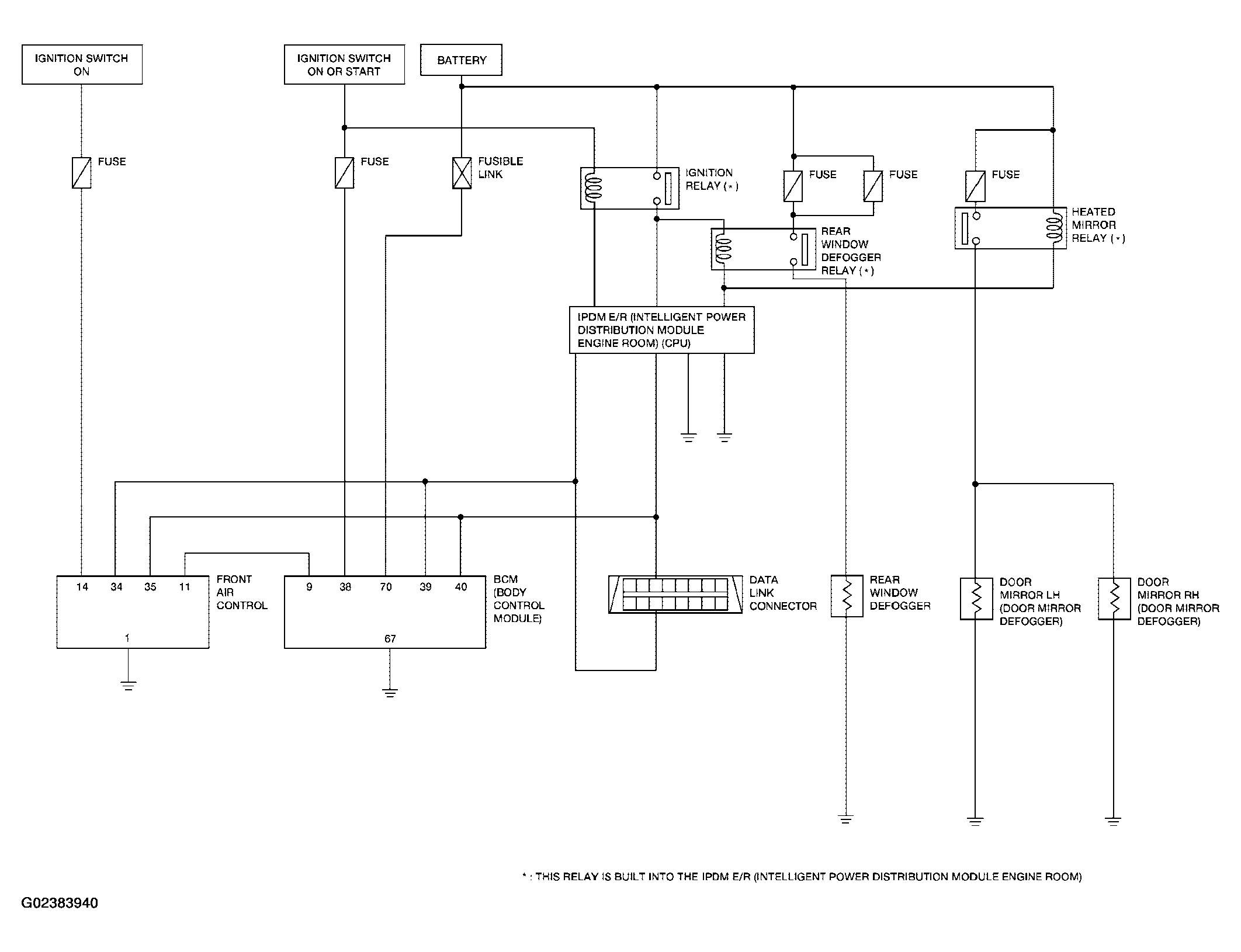

Fig 1: Rear Window Defogger - Schematic

G02383940

Courtesy of NISSAN MOTOR CO., U.S.A.
