Terminal and Reference Value for IPDM E/R

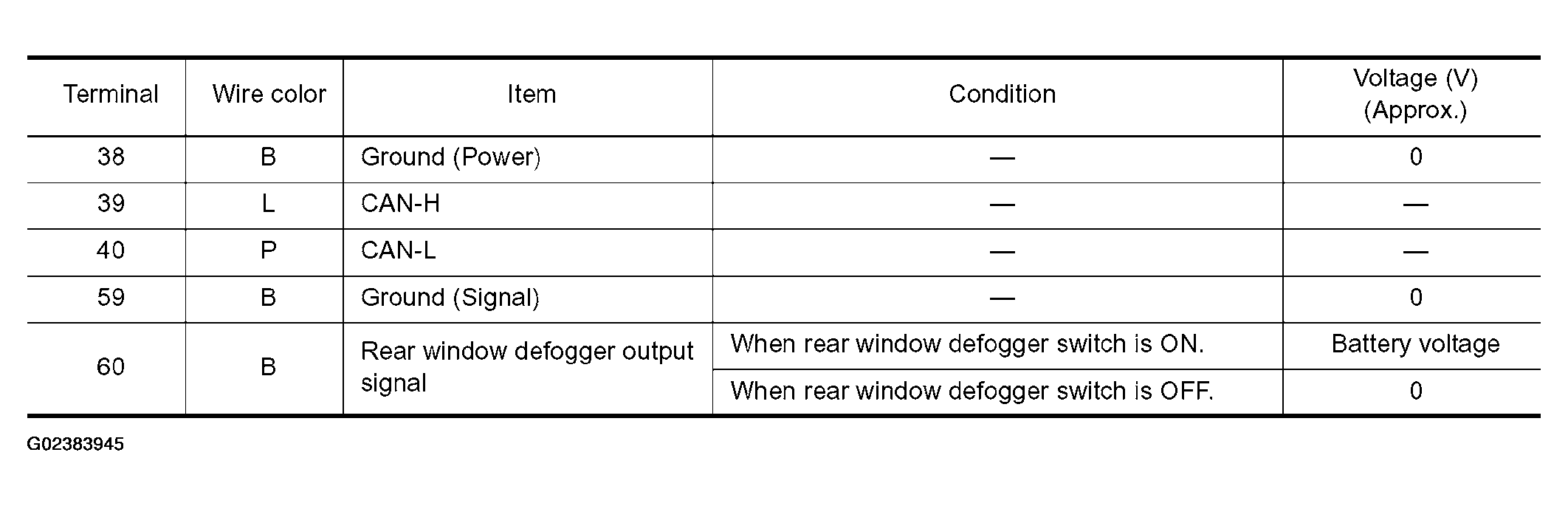

Fig 1: IPDM E/R Connector Terminal Voltage Reference

G02383945

Courtesy of NISSAN MOTOR CO., U.S.A.
