Terminal and Reference Value for BCM

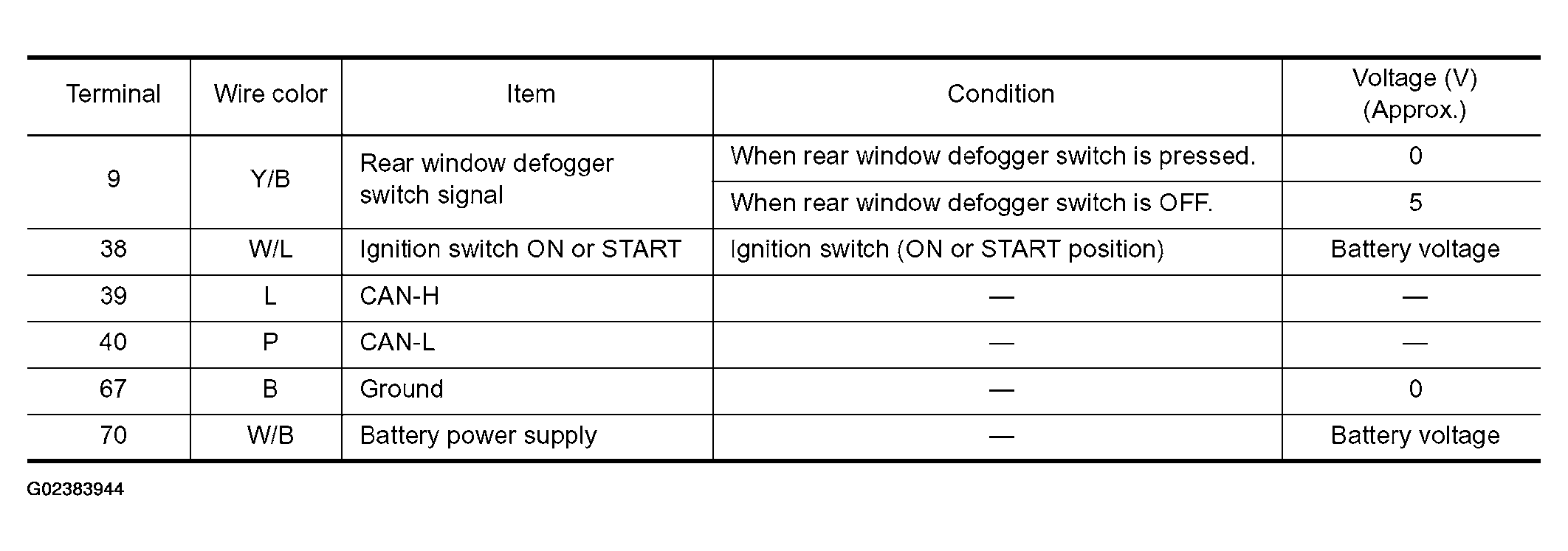

Fig 1: BMC Connector Terminal Voltage Reference

G02383944

Courtesy of NISSAN MOTOR CO., U.S.A.
