Trouble Diagnoses Symptom Chart
Check that other systems using the signal of the following systems operate normally.

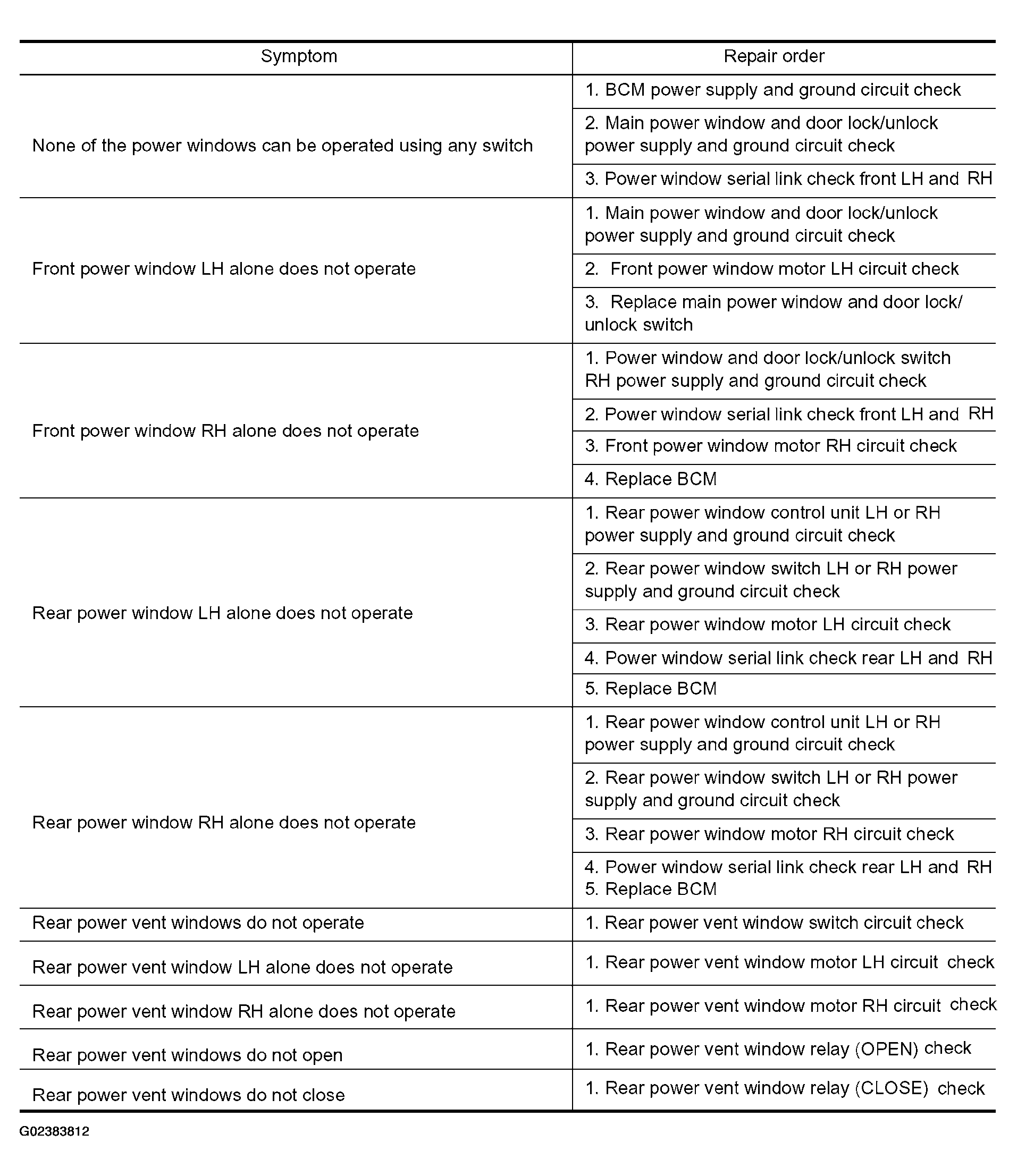

Fig 1: Trouble Diagnoses Symptom Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

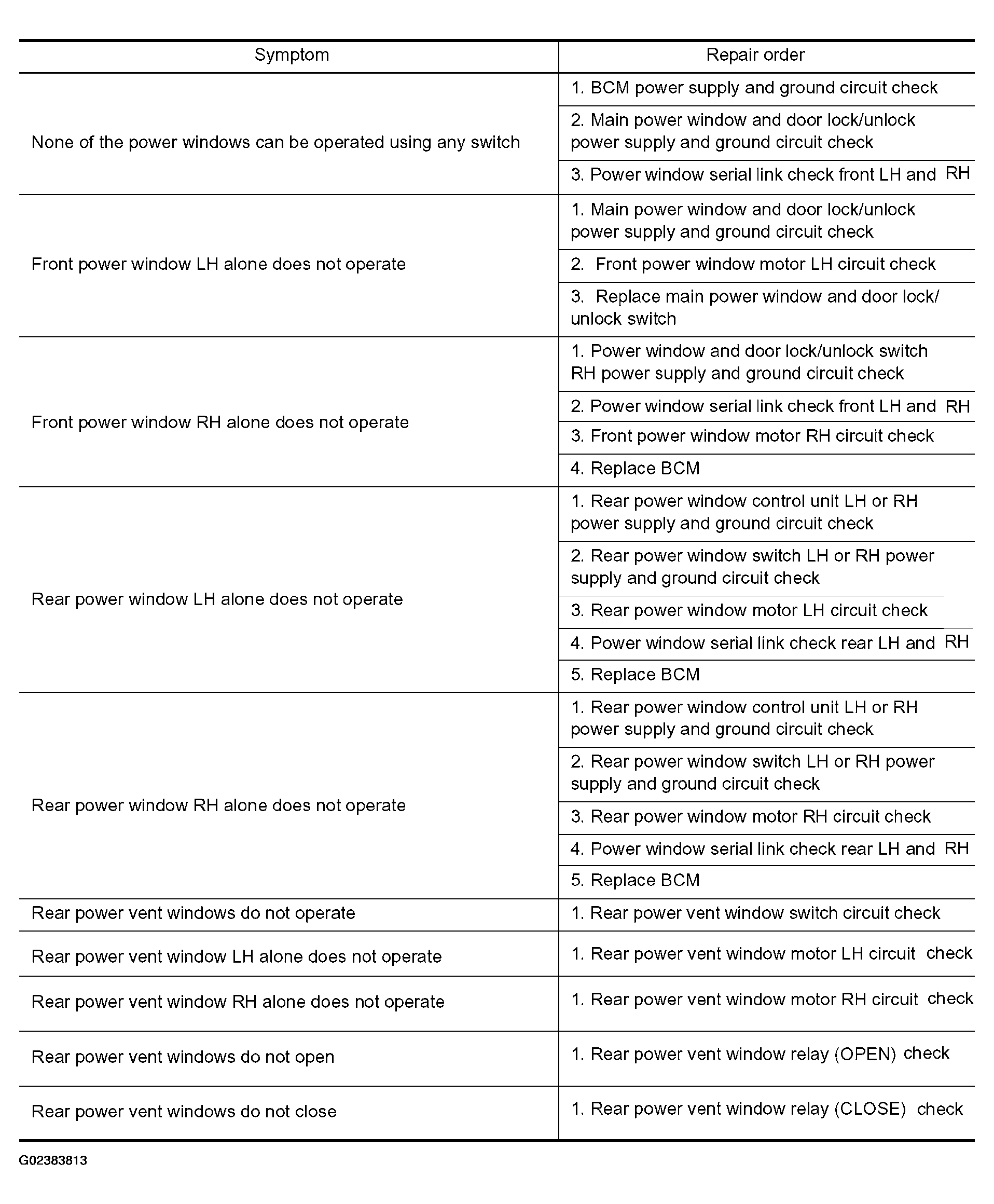

Fig 2: Trouble Diagnoses Symptom Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
