Repair and Diagnosis (Single Page)
>>
Electrical
>>
Gauges
>>
Driver Information System
>>
Rear View Monitor
>>
Terminals and Reference Value for Rear View Camera Control Unit
Terminals and Reference Value for Rear View Camera Control Unit

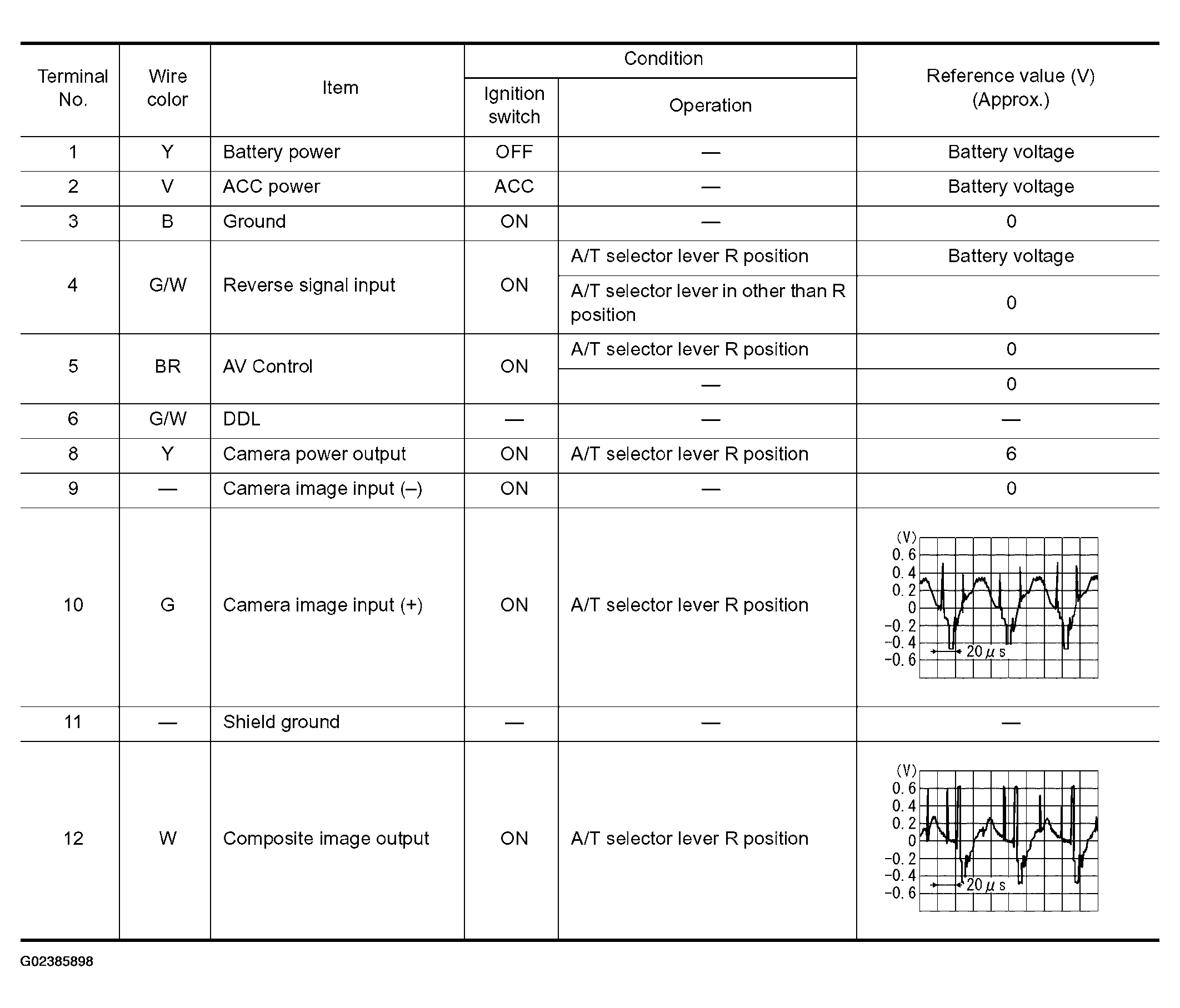

Fig 1: Rear View Camera Control Unit Terminals And Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
