Keyfob Battery and Function Check

CHECK KEYFOB BATTERY
Remove battery and measure voltage across battery positive and negative terminals, (+) and (-).
1. Voltage :2.5V - 3.0V
NOTE: Keyfob does not function if battery is not set correctly.

OK or NG
1. OK: GO TO 2.
2. NG: Replace battery.
Fig 1: Measuring Voltage Across Battery Positive And Negative Terminals (+) And (-)
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK KEYFOB FUNCTION
With CONSULT-II

Check keyfob function in "DATA MONITOR" mode with CONSULT-II.

When pushing each button of keyfob, the corresponding monitor item should be turned as follows.

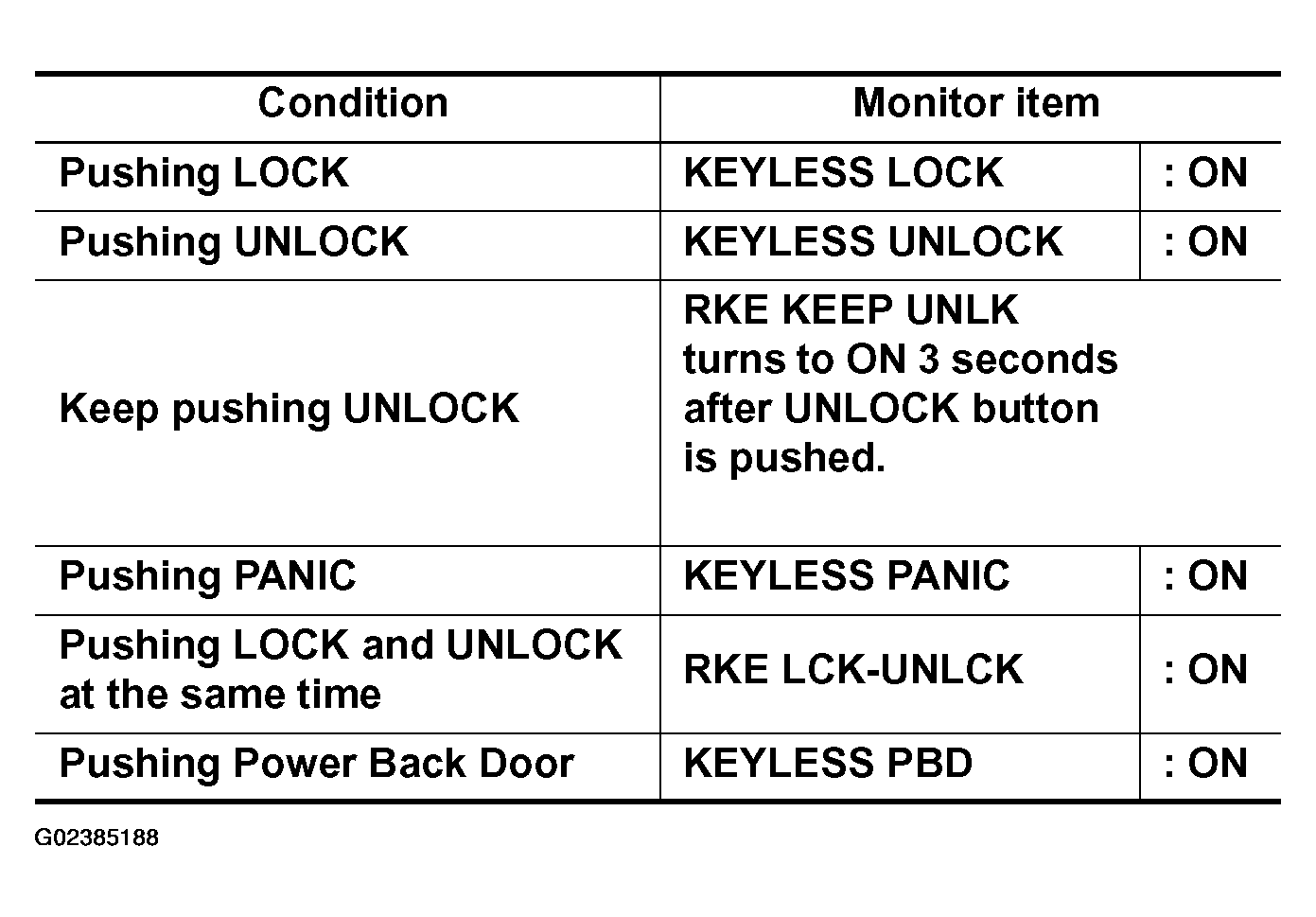

Fig 2: Keyfob Function -Monitor Item And Condition
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Data Monitor Display
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check keyfob function using Remote Keyless Entry Tester J-43241.

OK or NG
1. OK: WITH CONSULT-II: Keyfob, remote keyless entry receiver and wiring harness between BCM and remote keyless entry receiver are OK. Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
2. OK: WITHOUT CONSULT-II: Keyfob is OK. Further inspection is necessary. Refer to "SYMPTOM CHART ".
3. NG: WITH CONSULT-II: Further inspection is necessary. Refer to "SYMPTOM CHART ".
4. NG: WITHOUT CONSULT-II: Replace keyfob. Refer to "ID CODE ENTRY PROCEDURE ".
