Removal and Installation: Inspection

Installation and Inspection of Torque Converter

• After inserting a torque converter to a transmission, be sure to check distance "A" to ensure it is within the reference value limit.
  1. Distance "A": 22.0 mm (0.87 in) or more

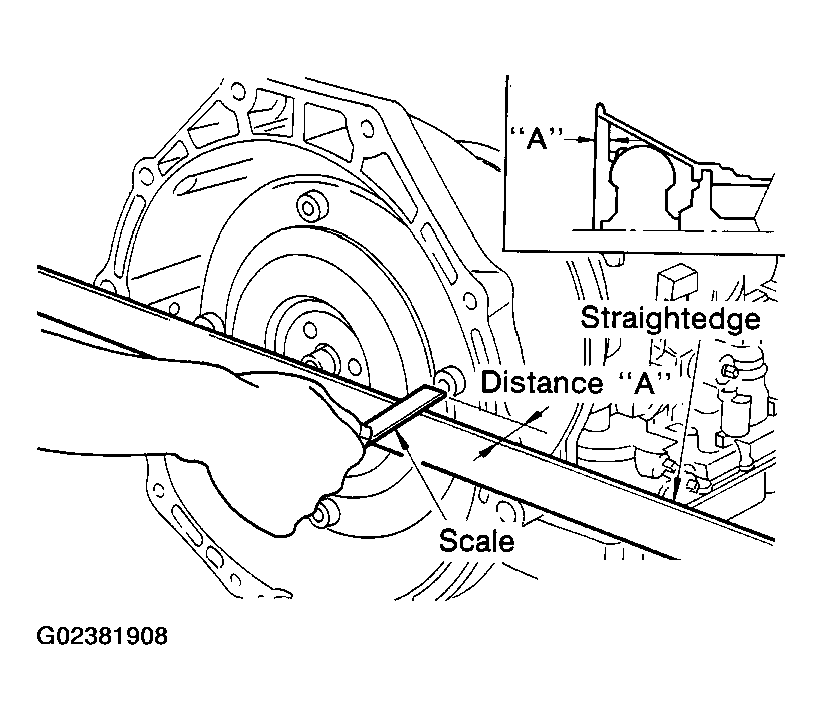

  Fig 1: Checking Torque Converter

  Courtesy of NISSAN MOTOR CO., U.S.A.
