Oil Pump: Assembly

Install O-ring to oil pump cover.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

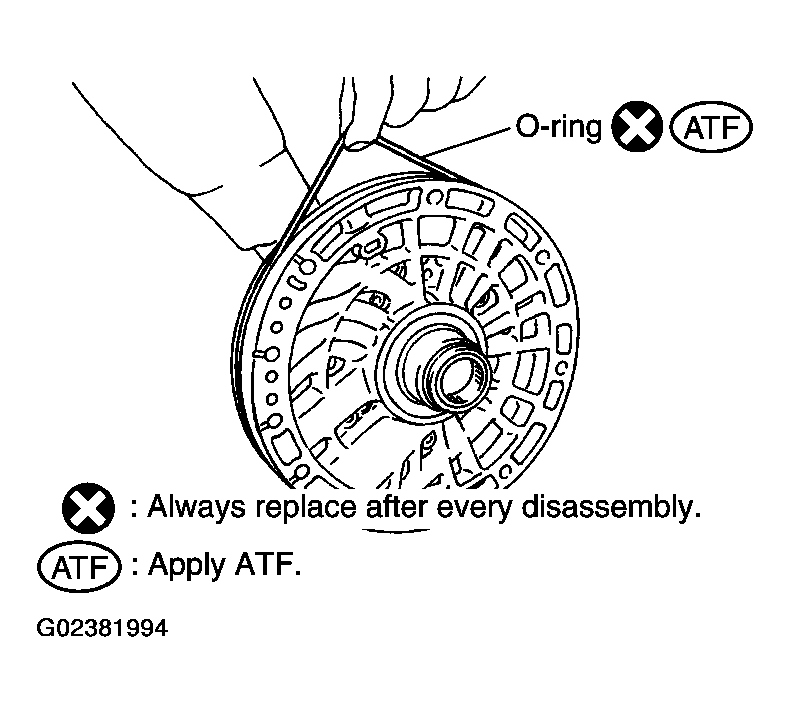

Fig 1: Installing O-Ring To Oil Pump Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring to oil pump housing.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
Fig 2: Installing O-Ring To Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Using the drift, install oil pump housing oil seal to the oil pump housing until it is flush.
CAUTION:
- Do not reuse oil seal.
- Apply ATF to oil seal.
Fig 3: Installing Oil Pump Housing Oil Seal To Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pump housing to oil pump cover.
1. 9.0 N.m (0.92 kg-m, 80 in-lb.)

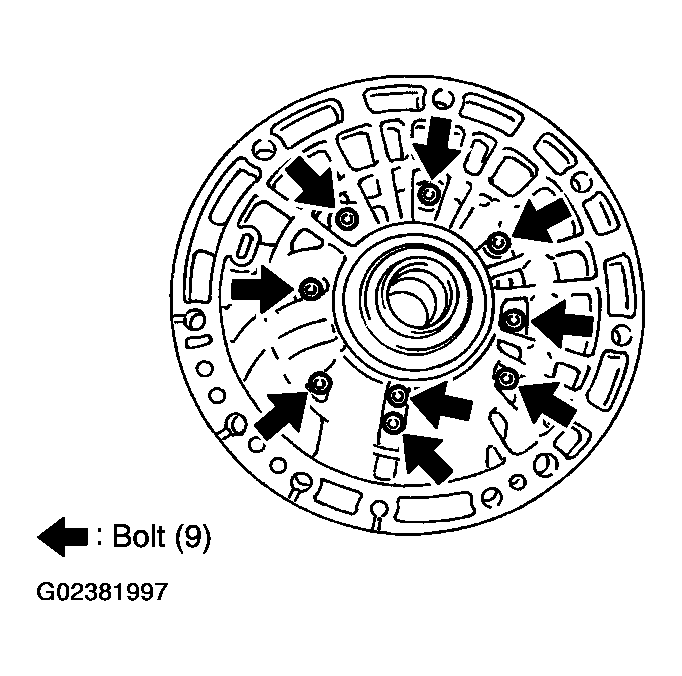

Fig 4: Installing Oil Pump Housing To Oil Pump Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
