Revolution Sensor: Removal

  1. Disconnect the battery cable from the negative terminal.
  2. Drain ATF through drain plug.
  3. Remove exhaust front tube and center muffler with a power tool. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
  5. Remove control rod. Refer to "CONTROL ROD REMOVAL AND INSTALLATION ".
  6. Remove oil pan and oil pan gasket.
    Fig 1: Removing Oil Pan And Oil Pan Gasket
    G02381881Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Check foreign materials in oil pan to help determine causes of malfunction. If the A/T fluid is very dark, smells burned, or contains foreign particles, the frictional material (clutches, band) may need replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves, servo, and clutches to stick and can inhibit pump pressure.
  8. Support transmission assembly with a transmission jack.
    CAUTION: When setting transmission jack, place wooden blocks to prevent from damaging control valve with TCM and transmission case.
    Fig 2: Checking Foreign Materials In Oil Pan
    G02381882Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Remove engine rear member with a power tool. Refer to "REMOVAL AND INSTALLATION ".

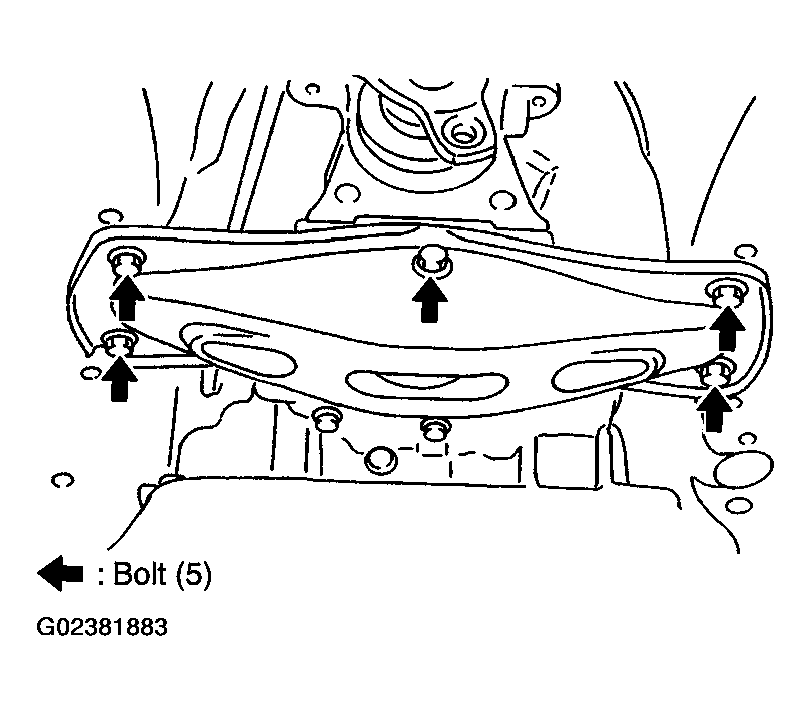

    Fig 3: Removing Engine Rear Member
    G02381883Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove rear engine mounting insulator. Refer to "REMOVAL AND INSTALLATION ".

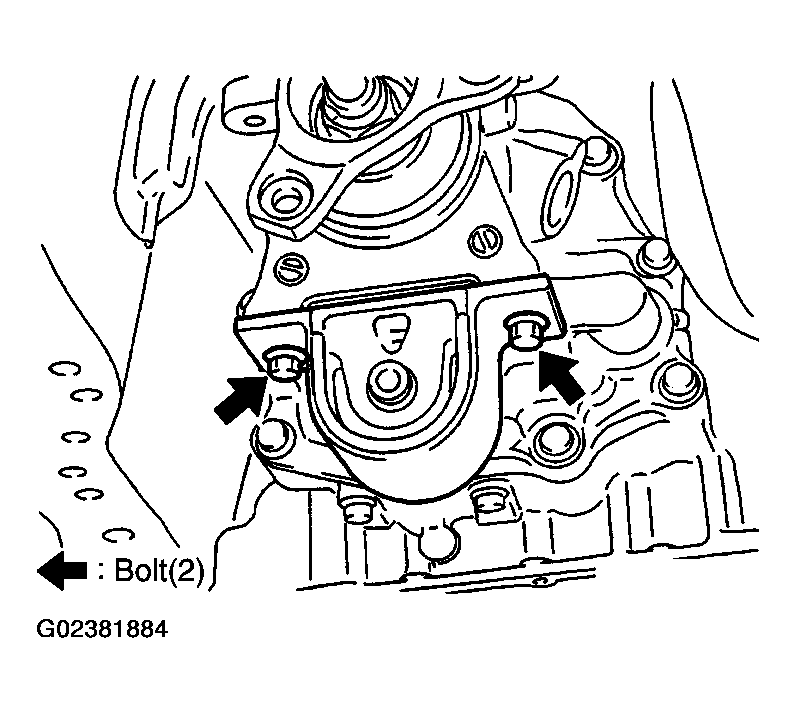

    Fig 4: Removing Rear Engine Mounting Insulator
    G02381884Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove tightening bolts for output shaft & companion flange complement and transmission case.

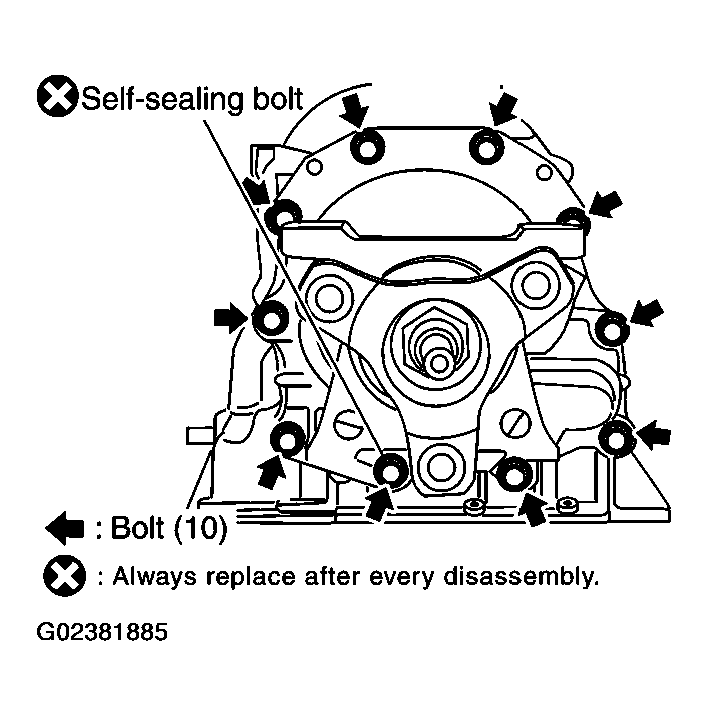

    Fig 5: Removing Output Shaft & Companion Flange Complement And Transmission Case Bolts
    G02381885Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Tap output shaft & companion flange complement with a soft hammer.

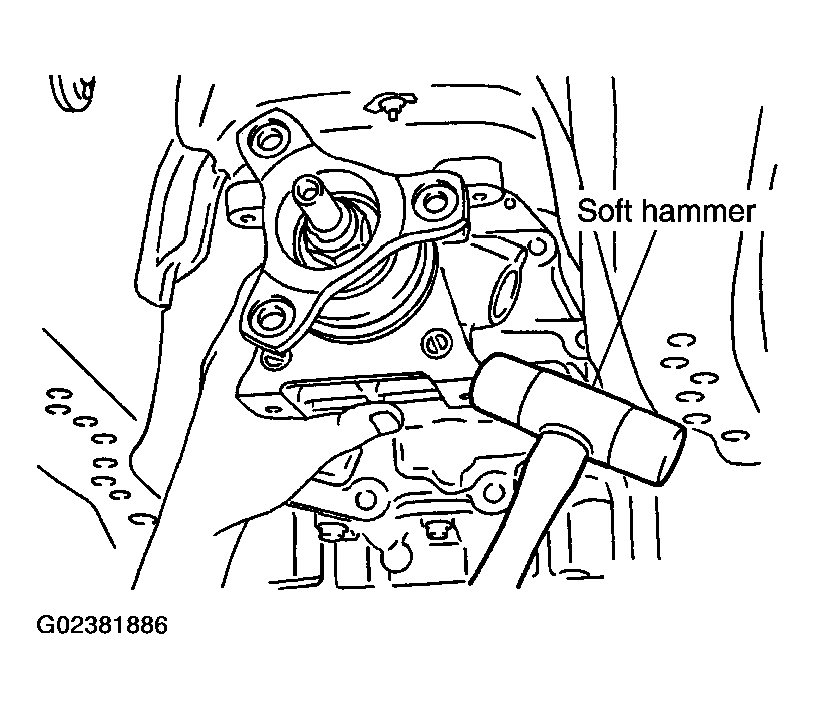

    Fig 6: Tapping Output Shaft & Companion Flange Complement With Soft Hammer
    G02381886Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove output shaft & companion flange complement from transmission assembly.

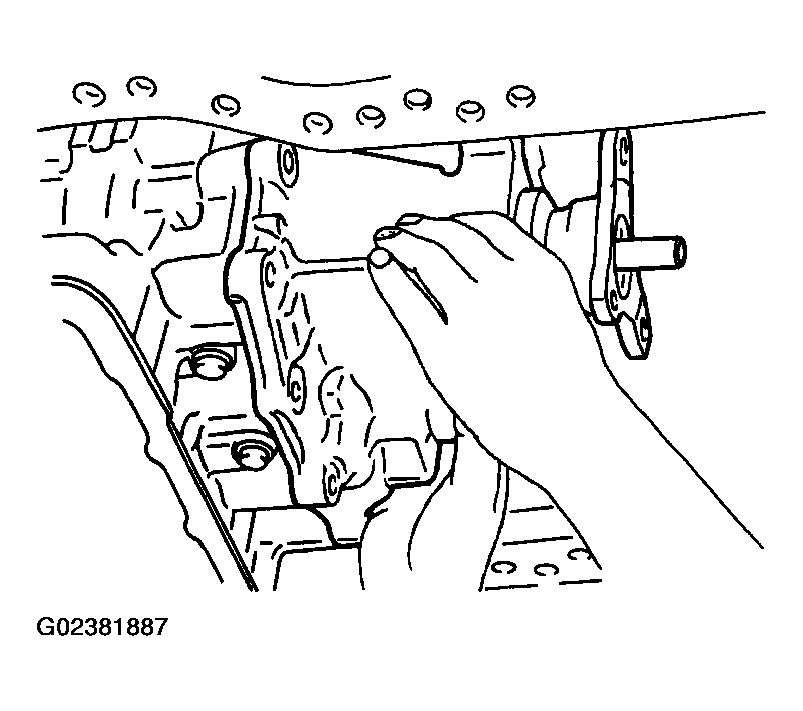

    Fig 7: Removing Output Shaft & Companion Flange Complement From Transmission Assembly
    G02381887Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Disconnect revolution sensor connector.
    CAUTION: Be careful not to damage connector
  15. Straighten terminal clips to free revolution sensor harness.

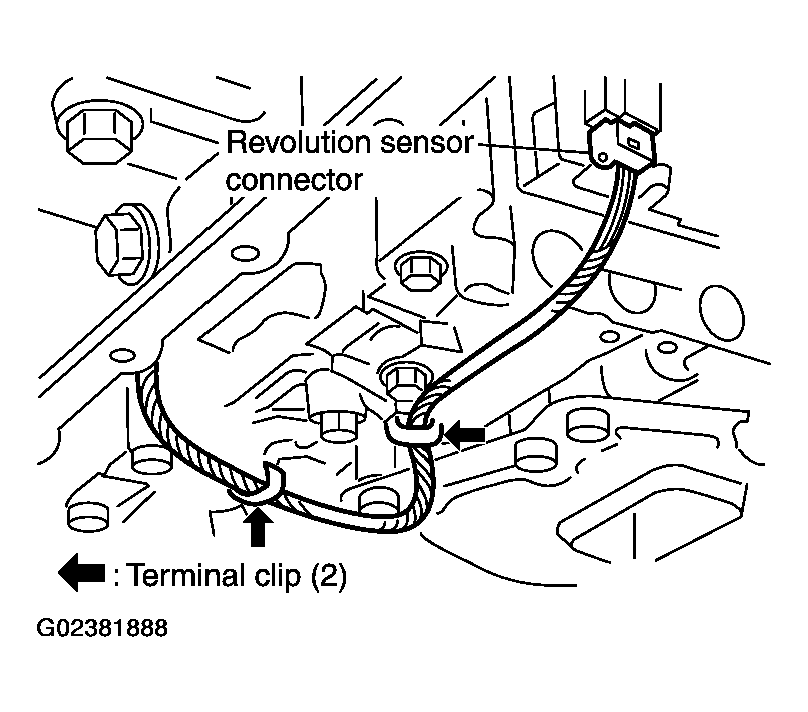

    Fig 8: Disconnecting Revolution Sensor Connector
    G02381888Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Remove revolution sensor from transmission case.
    CAUTION:
    • Do not subject it to impact by dropping or hitting it.
    • Do not disassemble.
    • Do not allow metal filings, etc. to get on the sensor's front edge magnetic area.
    • Do not place in an area affected by magnetism.

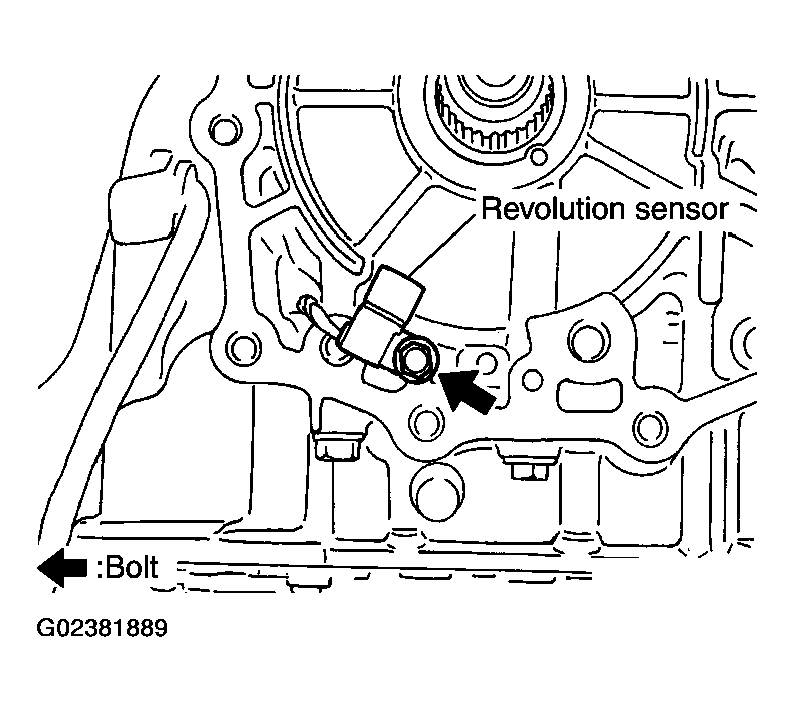

    Fig 9: Removing Revolution Sensor From Transmission Case
    G02381889Courtesy of NISSAN MOTOR CO., U.S.A.
