Parking Components: Removal

  1. Drain ATF through drain plug.
  2. Remove exhaust front tube and center muffler with a power tool. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove control rod. Refer to "CONTROL ROD REMOVAL AND INSTALLATION ".
  5. Support transmission assembly with a transmission jack.
    CAUTION: When setting transmission jack, be careful not to allow it to collide against the drain plug.
  6. Remove engine rear member with a power tool. Refer to "REMOVAL AND INSTALLATION ".

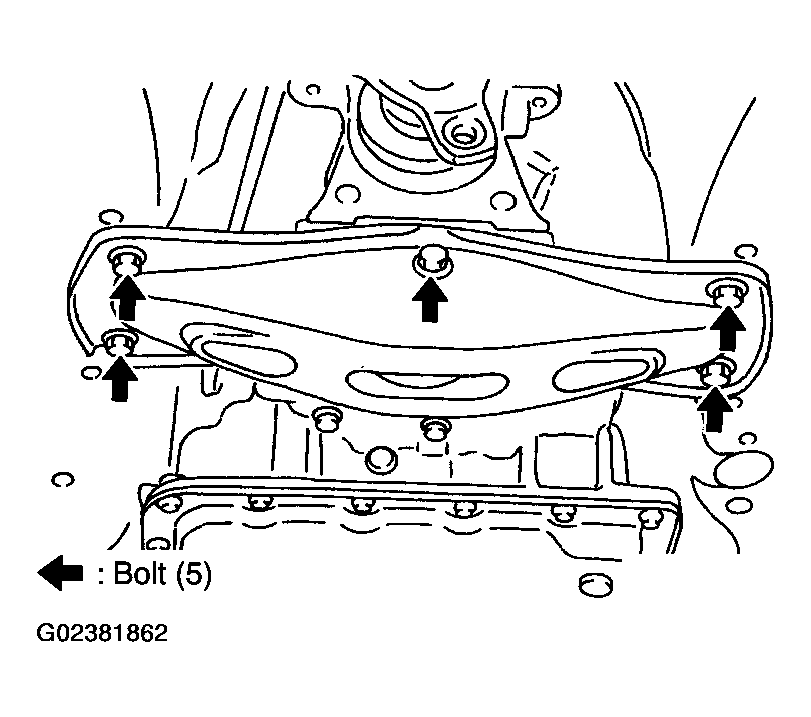

    Fig 1: Removing Engine Rear Member
    G02381862Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove rear engine mounting insulator. Refer to "REMOVAL AND INSTALLATION ".

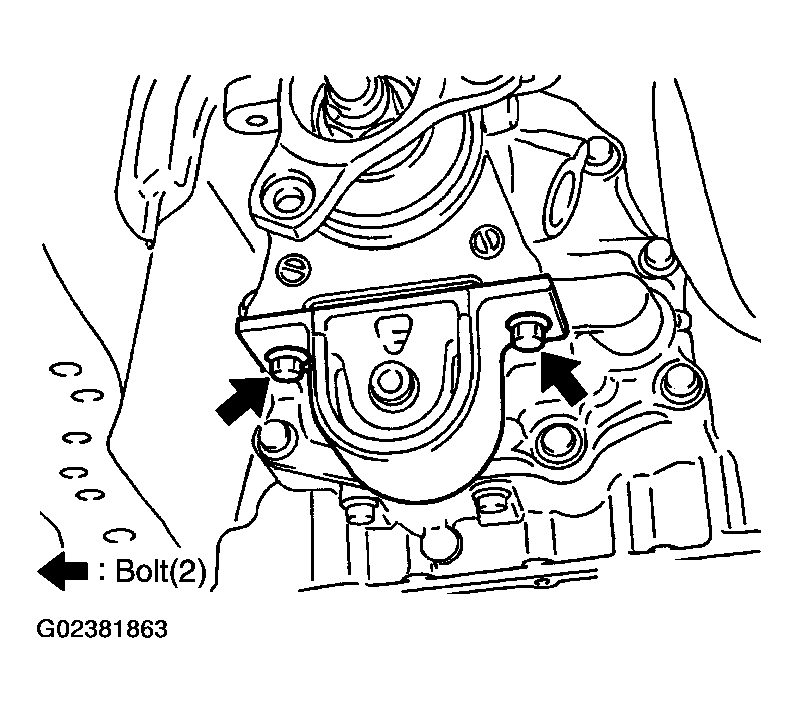

    Fig 2: Removing Rear Engine Mounting Insulator
    G02381863Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove tightening bolts for output shaft & companion flange complement and transmission case.

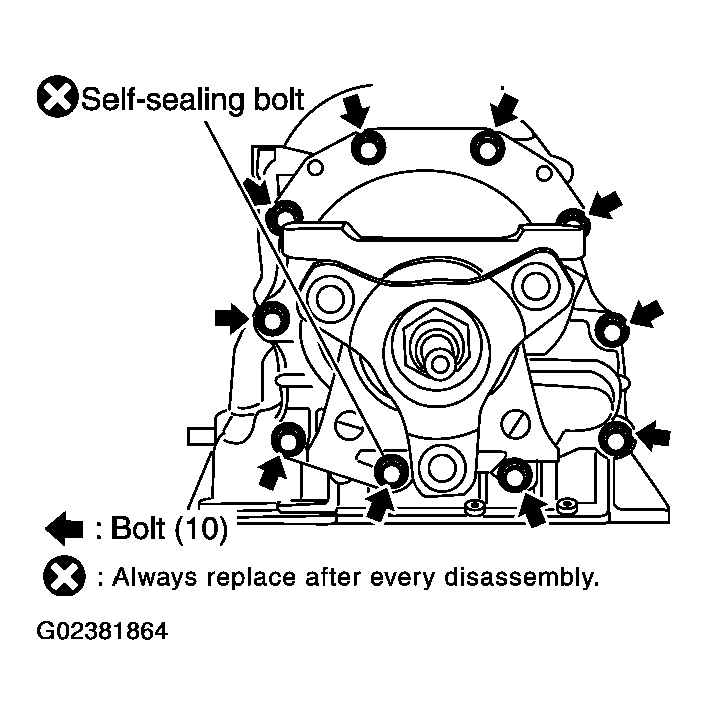

    Fig 3: Removing Output Shaft & Companion Flange Complement And Transmission Case Bolts
    G02381864Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Tap output shaft & companion flange complement with a soft hammer.

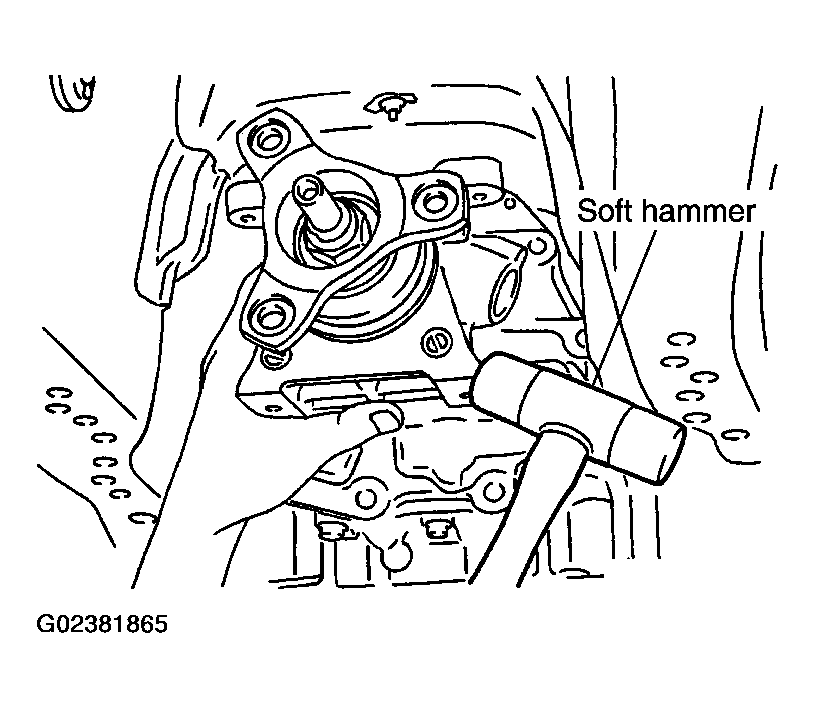

    Fig 4: Taping Output Shaft & Companion Flange Complement With Soft Hammer
    G02381865Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove output shaft & companion flange complement from transmission assembly.

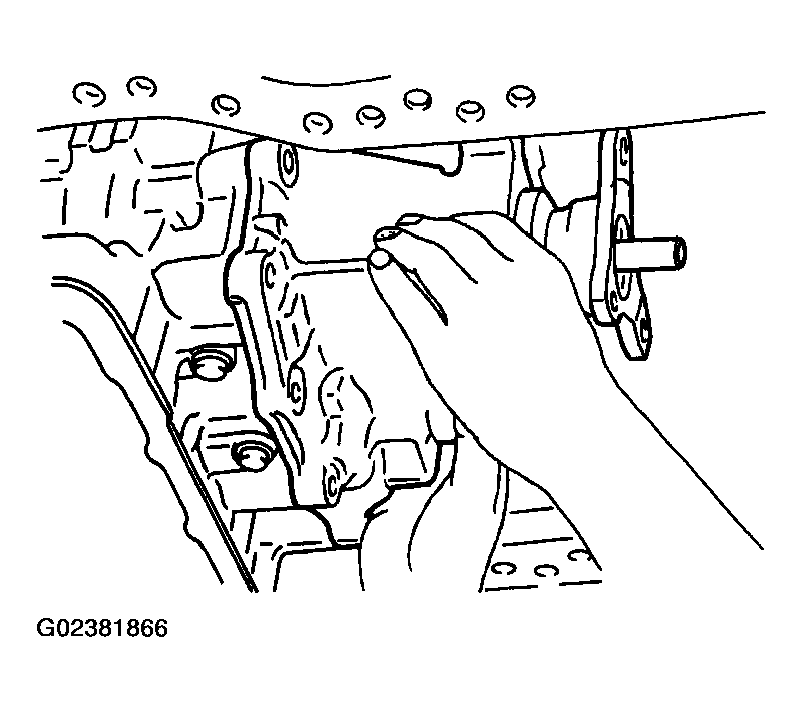

    Fig 5: Removing Output Shaft & Companion Flange Complement From Transmission Assembly
    G02381866Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove parking actuator support from output shaft & companion flange complement.

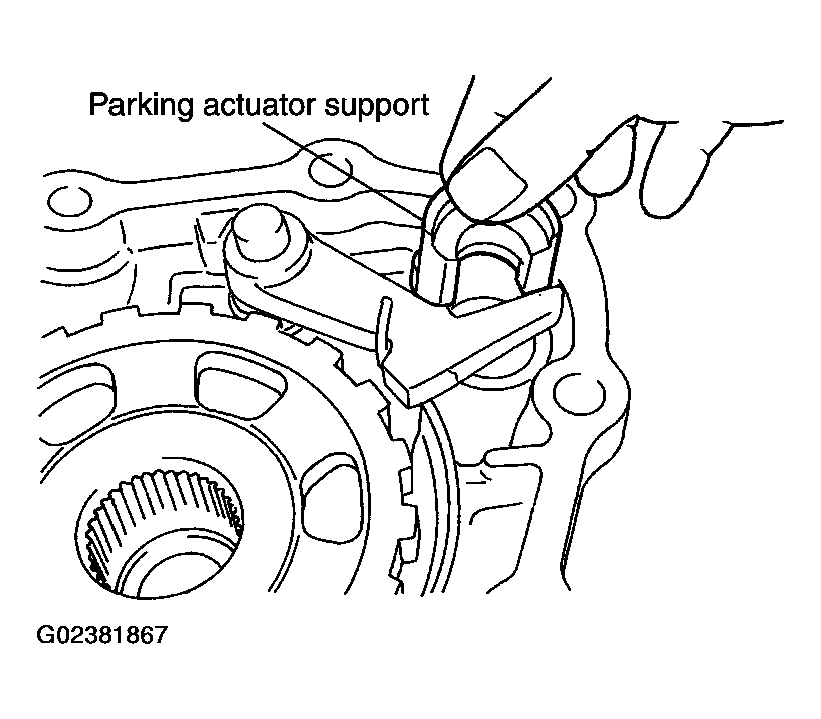

    Fig 6: Removing Parking Actuator Support From Output Shaft & Companion Flange Complement
    G02381867Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Remove parking pawl, parking pawl shaft and return spring from output shaft & companion flange complement.

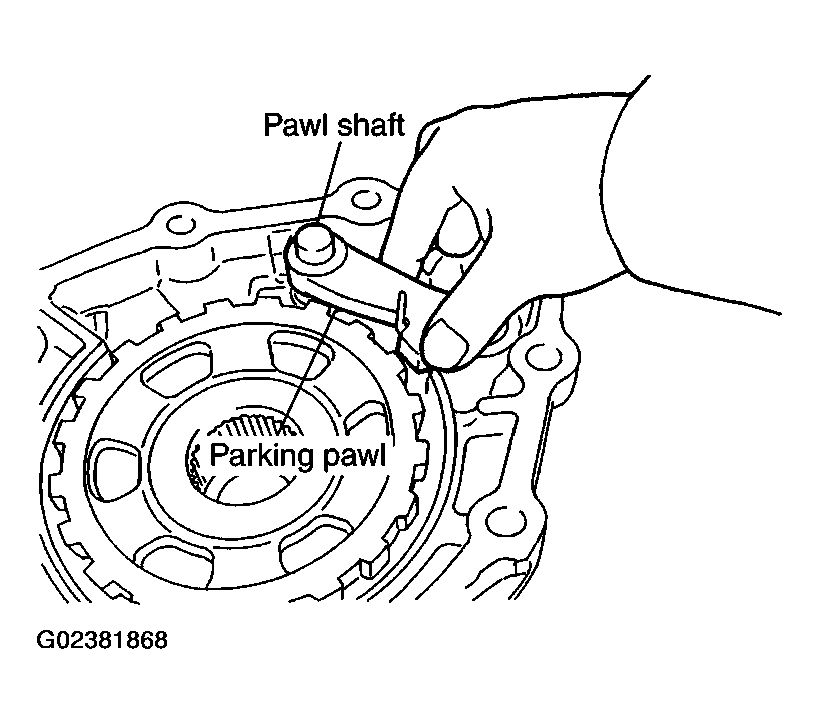

    Fig 7: Removing Parking Pawl, Parking Pawl Shaft From Output Shaft & Companion Flange Complement
    G02381868Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove return spring from parking pawl.
    Fig 8: Removing Return Spring From Parking Pawl
    G02381869Courtesy of NISSAN MOTOR CO., U.S.A.
