Parking Components: Installation

CAUTION: After completing installation, check A/T fluid leakage, fluid level and A/T position. Refer to "CHANGING A/T FLUID ", "CHECKING A/T FLUID ", "CHECKING OF A/T POSITION ".
  1. Install return spring to parking pawl.
    Fig 1: Installing Return Spring To Parking Pawl
    G02381872Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install parking pawl and pawl shaft in output shaft & companion flange complement.

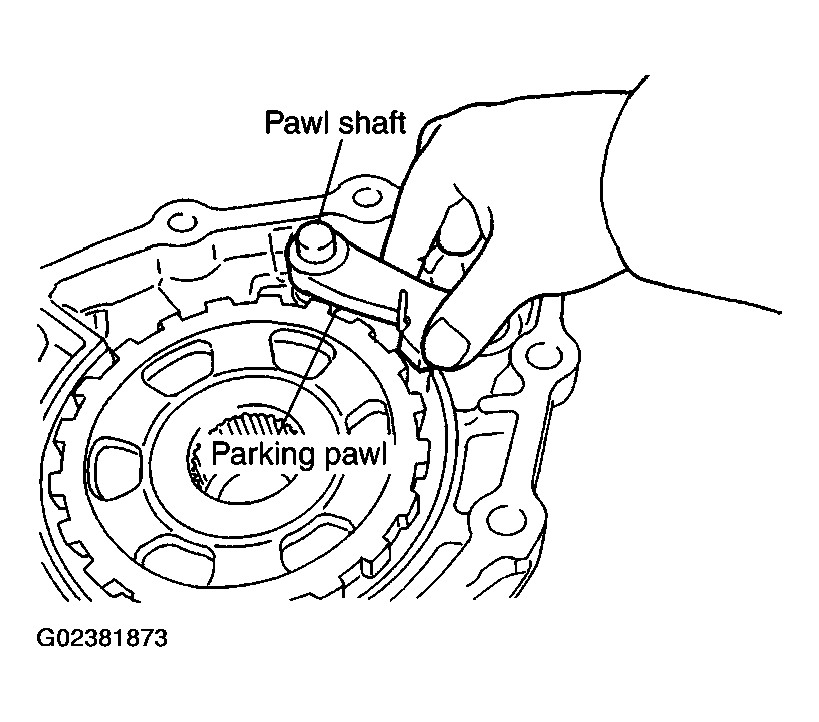

    Fig 2: Installing Parking Pawl And Pawl Shaft In Output Shaft & Companion Flange Complement
    G02381873Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install parking actuator support in output shaft & companion flange complement.

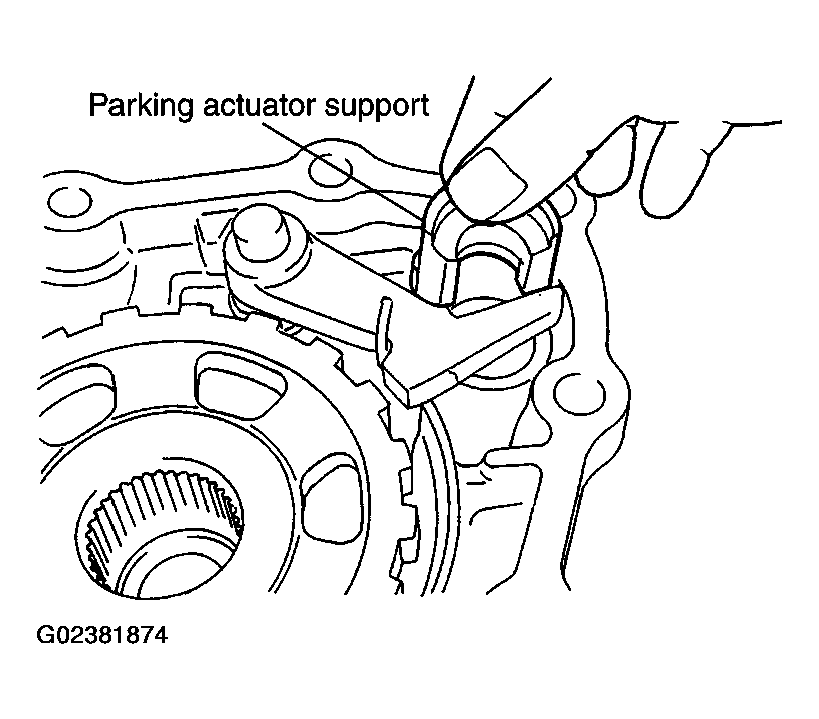

    Fig 3: Installing Parking Actuator Support In Output Shaft & Companion Flange Complement
    G02381874Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to output shaft & companion flange complement as shown in the figure.
    CAUTION: Completely remove all moisture, oil and old sealant, etc. from the transmission case and output shaft & companion flange complement mounting surfaces.

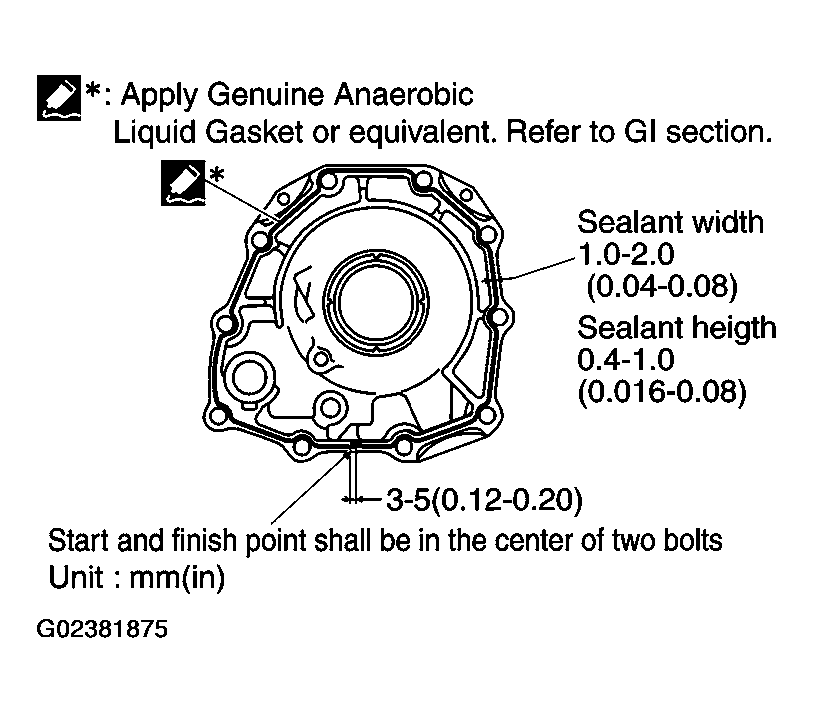

    Fig 4: Applying Recommended Sealant To Output Shaft & Companion Flange Complement
    G02381875Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install output shaft & companion flange complement in transmission assembly.

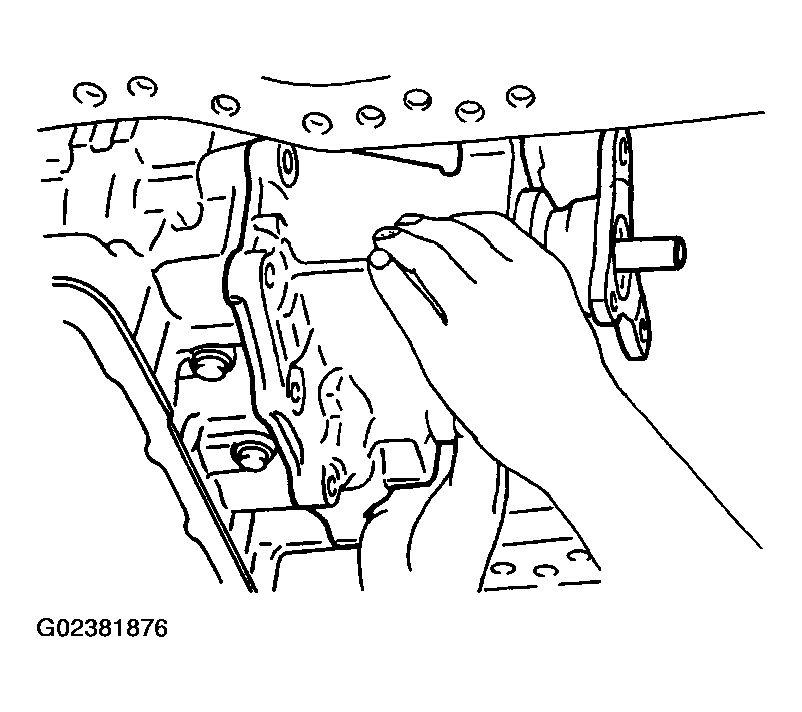

    Fig 5: Installing Output Shaft & Companion Flange Complement In Transmission Assembly
    G02381876Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Tighten output shaft & companion flange complement mounting bolts to specified torque.
    CAUTION: Do not reuse self-sealing bolt.
    1. Rear extension assembly mounting bolt
      1. 52 N.m (5.3 Kg-m, 38 ft-lb)
    2. Self-sealing bolt
      1. 61 N.m (6.2 Kg-m, 45 ft-lb)

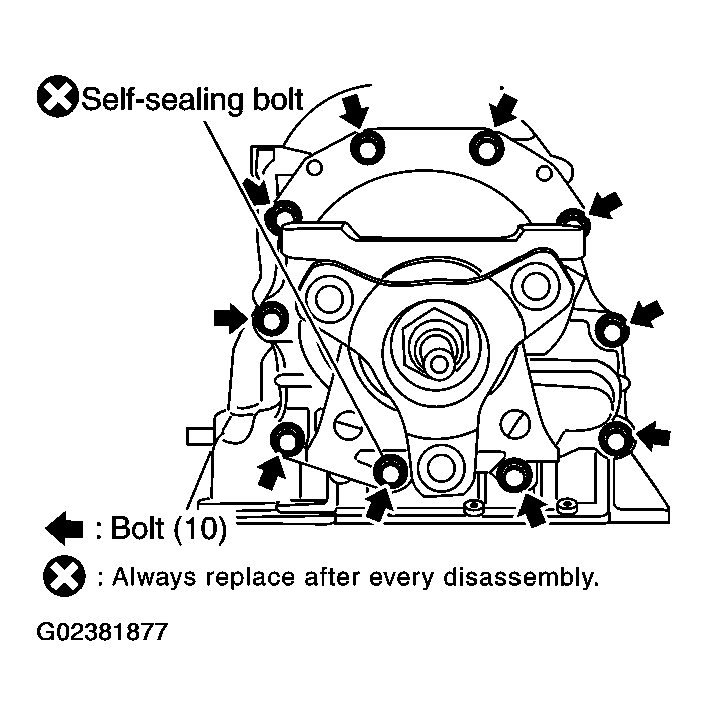

    Fig 6: Tightening Output Shaft & Companion Flange Complement Mounting Bolts
    G02381877Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install rear engine mounting insulator. Refer to "REMOVAL AND INSTALLATION ".

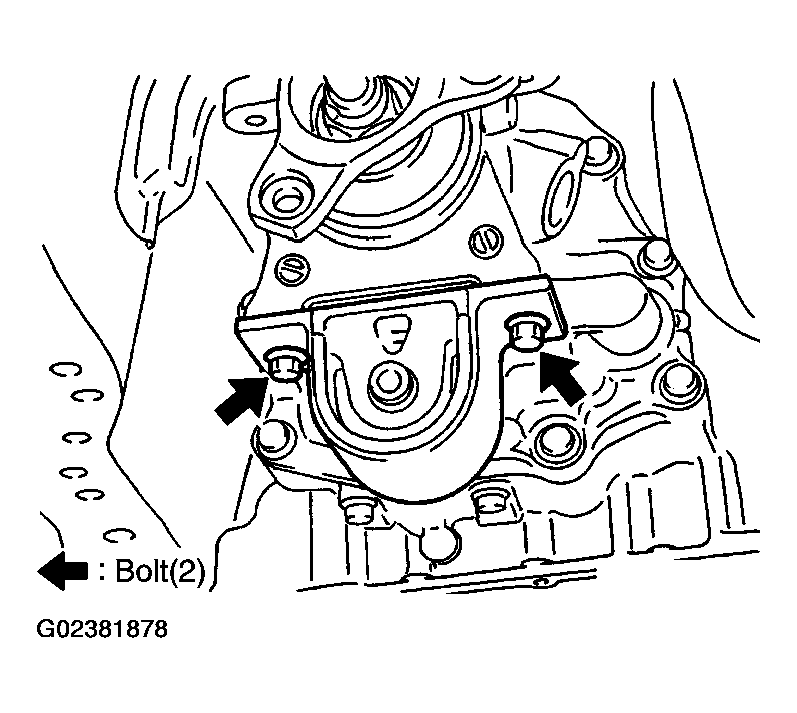

    Fig 7: Installing Rear Engine Mounting Insulator
    G02381878Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install engine rear member. Refer to "REMOVAL AND INSTALLATION ".
  9. Install control rod. Refer to "CONTROL ROD REMOVAL AND INSTALLATION ".
  10. Install rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
  11. Install exhaust front tube and center muffler. Refer to "REMOVAL AND INSTALLATION ".
  12. Install drain plug in oil pan.
    CAUTION: Do not reuse drain plug gasket.
    1. 34 N.m (3.5 kg-m, 25 ft-lb)
  13. Pour ATF into transmission assembly. Refer to "CHANGING A/T FLUID ".

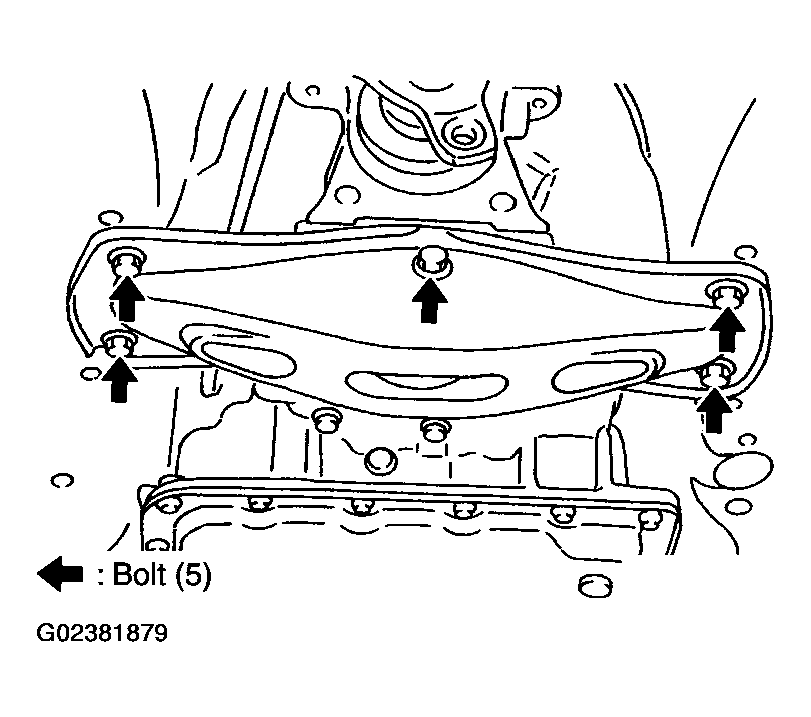

    Fig 8: Installing Engine Rear Member
    G02381879Courtesy of NISSAN MOTOR CO., U.S.A.
