Control Valve with TCM and A/T Fluid Temperature Sensor 2: Components

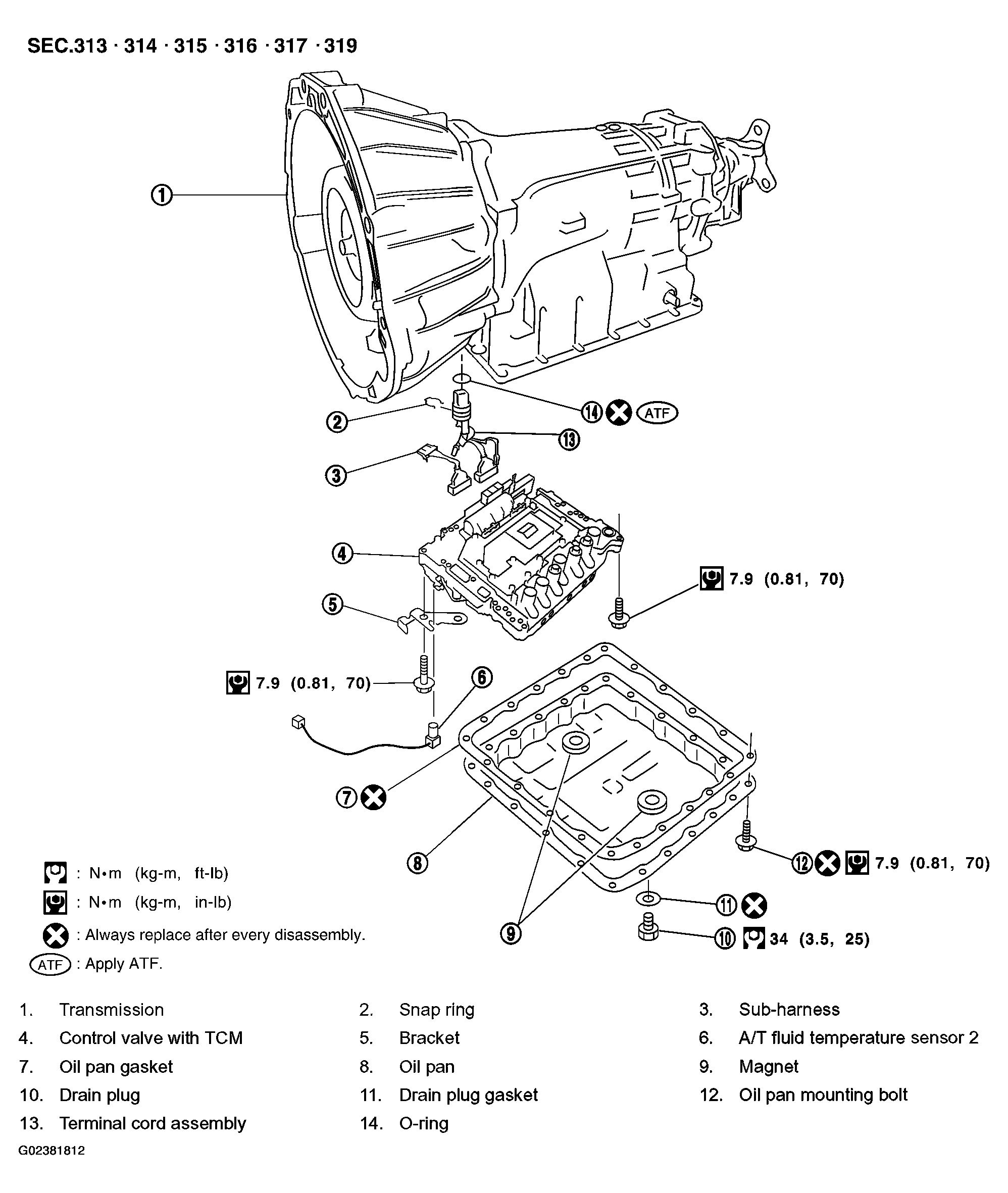

Fig 1: Control Valve With TCM And A/T Fluid Temperature Sensor 2 With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
