Home >> Infiniti >> 2005 >> Q45 >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> A/T Shift Lock System >> Shift Lock System Electrical Parts Location

Shift Lock System Electrical Parts Location

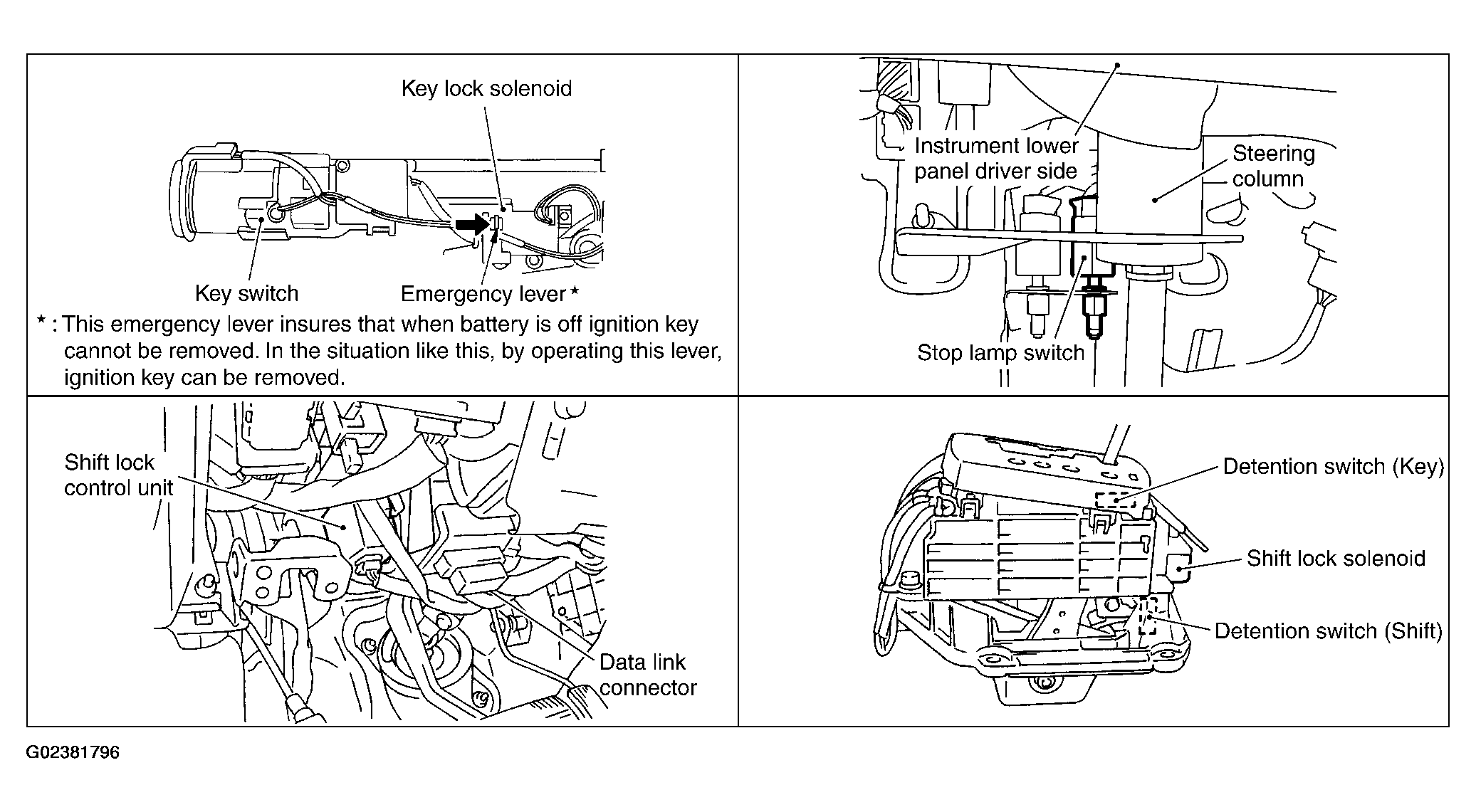

Fig 1: Identifying Shift Lock System Electrical Parts Location

G02381796

Courtesy of NISSAN MOTOR CO., U.S.A.
