Wheel Alignment Inspection: Toe-In

Measure toe-in using the following procedure. If out of the specification, inspect and replace any damaged or worn rear suspension parts.

1. Bounce the rear of vehicle up and down to stabilize the posture.
2. Push vehicle straight ahead about 5 m (16 ft).
3. Put a mark on base line of the tread (rear side) of both tires at the same height of hub center. These are measuring point.
4. Measure the distance "A" (rear side).
   Fig 1: Identifying Measuring Point On Tire

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Push vehicle slowly ahead to rotate wheels 180 degrees (1/2 turn).

   If wheels have rotated more than 180 degrees (1/2 turn), try the above procedure again from the beginning. Never push vehicle backward.

6. Measure the distance "B" (front side).
   1. Total toe-in: Refer to " SERVICE DATA  ".
   Fig 2: Checking Total Toe In

   Courtesy of NISSAN MOTOR CO., U.S.A.
7. If outside the standard value, adjust with adjusting bolt in rear lower link.
   CAUTION: Be sure to adjust equally on RH and LH side with adjusting bolt.

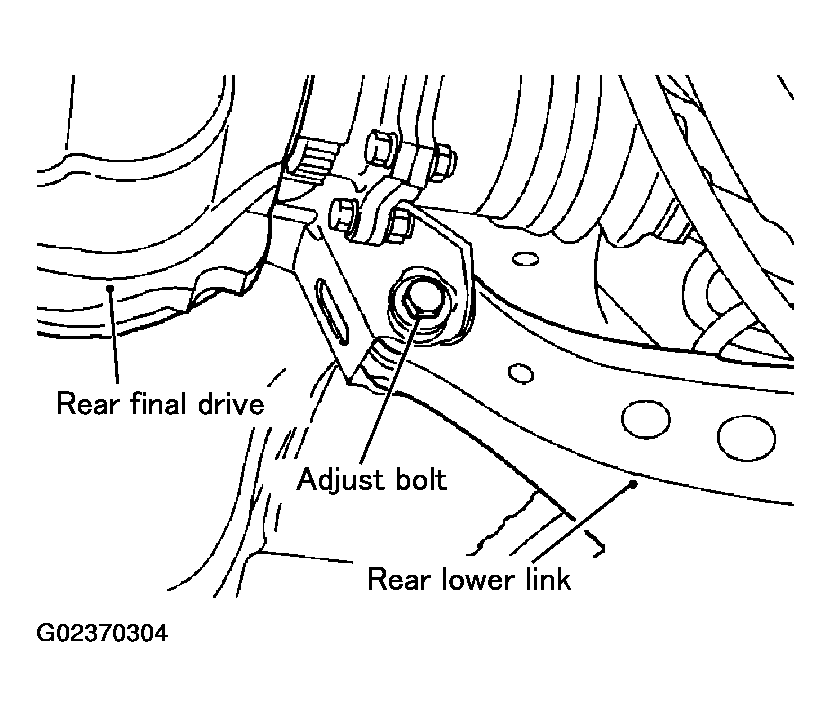

   Fig 3: Adjusting Total Toe In

   Courtesy of NISSAN MOTOR CO., U.S.A.
