Removal and Installation: Installation

Refer to "COMPONENTS " for tightening torque. Install in the reverse order of the removal.
NOTE: Refer to component parts location and do not reuse non-reusable parts.
After removing/installing or replacing suspension components, check wheel alignment. Refer to "WHEEL ALIGNMENT INSPECTION ".
After adjusting wheel alignment, adjust neutral position of steering angle sensor. Refer to "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION ".
Make sure actuator plate fits tightly into actuator assembly.
Make sure actuator assembly is installed as shown in the figure.
CAUTION: If actuator assembly is subjected to damage drop, do not use it.

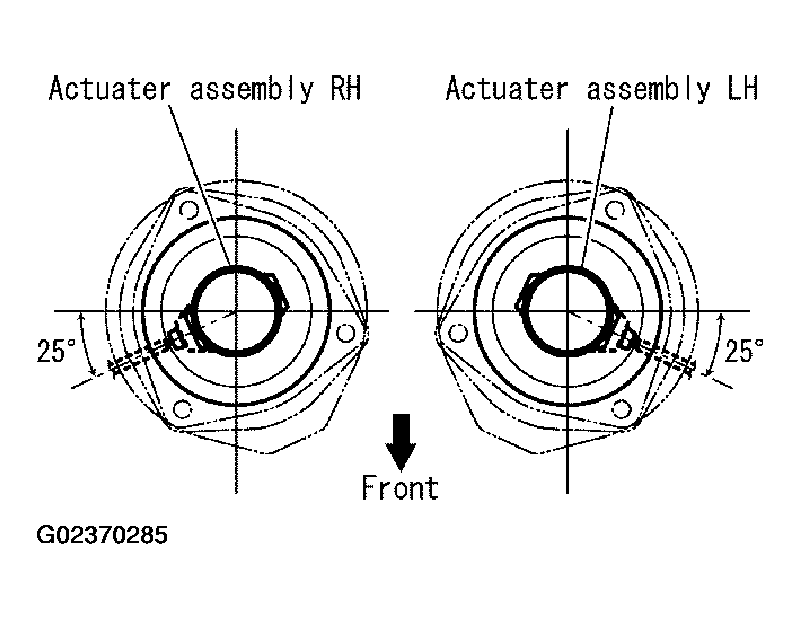

Fig 1: Identifying Installation Of Actuator Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Attach strut mounting insulator bracket as shown in the figure.

Fig 2: Attaching Strut Mounting Insulator Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
