Removal and Installation: Component

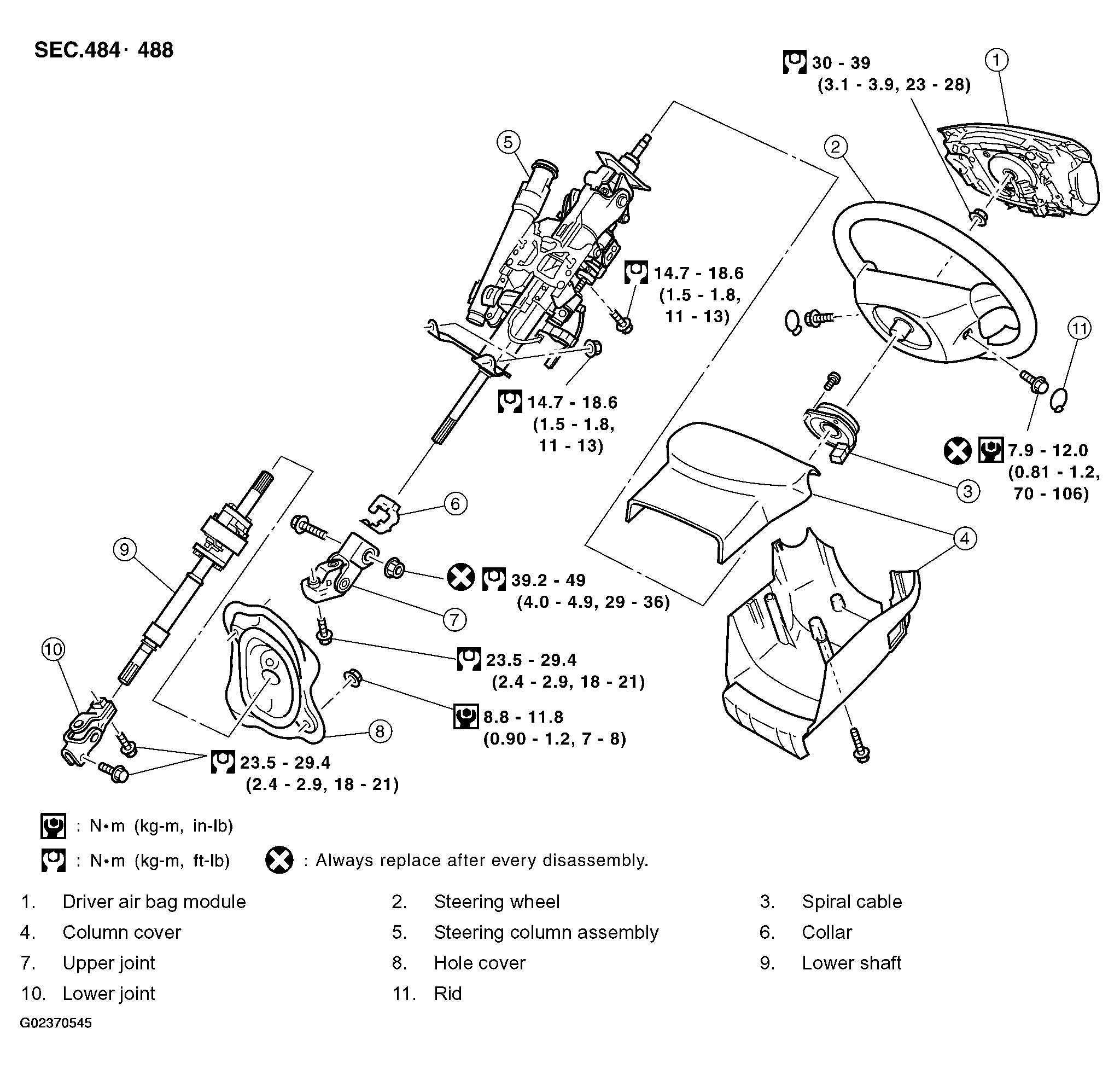

Fig 1: Exploded View Of Steering Column Component With Torque Specifications
G02370545Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Care must be taken not to give axial impact to steering column assembly during removal and installation.
  • Care must be taken not to move steering gear during removal of steering column assembly.
