Steering Lock

  1. Break self-shear type screws with a drill or other appropriate tool.
  2. Install new self-shear type screws and then cut off self-shear type screw heads.

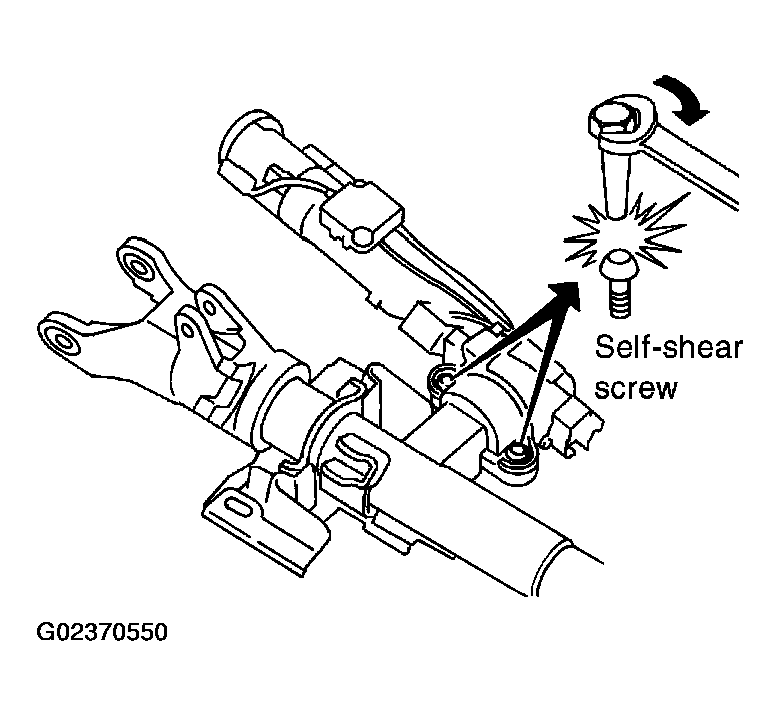

    Fig 1: Installing Self-Shear Type Screws
    G02370550Courtesy of NISSAN MOTOR CO., U.S.A.
