Consult-II Inspection Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch "OFF".
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

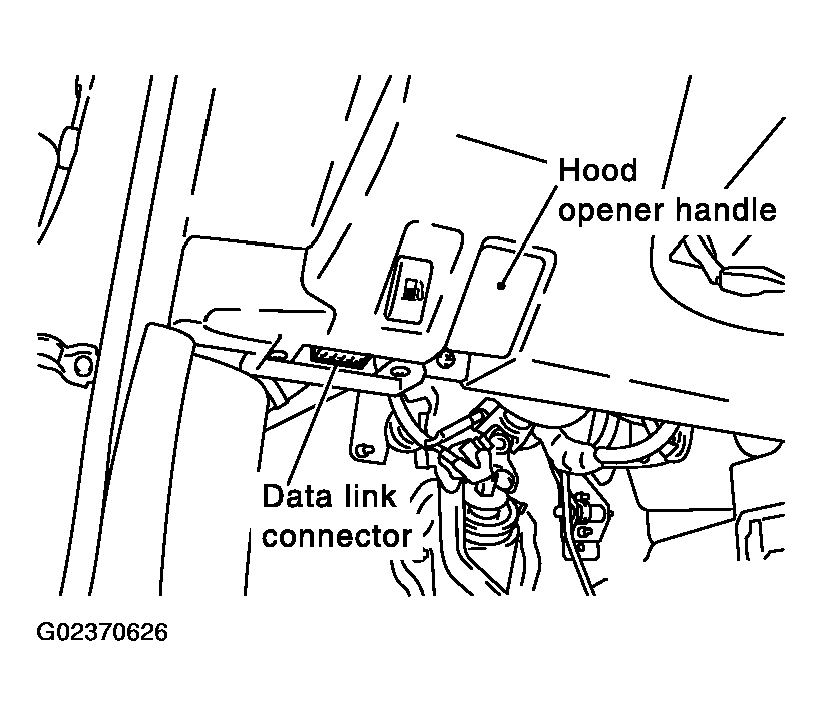

Fig 1: Identifying Hood Opener Handle And Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: Displaying "START (NISSAN BASED VHCL)" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "PRECRASH SEATBELT".
If "PRECRASH SEATBELT" is not indicated, Refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT "

Fig 3: Displaying "PRECRASH SEATBELT" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"SELF-DIAG RESULTS", "DATA MONITOR", "CAN DIAG SUPPORT MNTR" and "ECU PART NUMBER" are available.
