On Board Diagnosis Logic

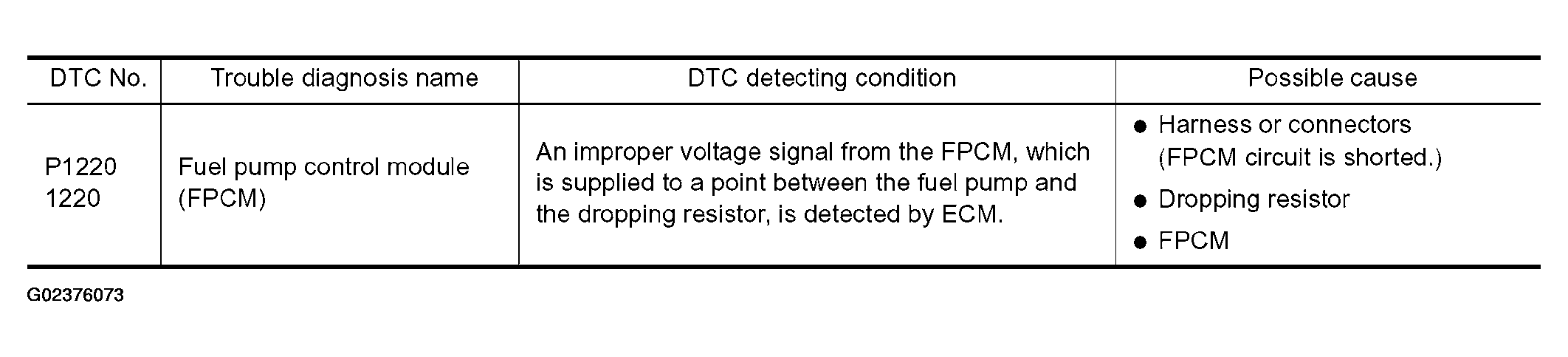

Fig 1: DTC - P1220 Trouble Detection Chart
G02376073Courtesy of NISSAN MOTOR CO., U.S.A.
